Removal & Installation (B3000)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: DO NOT smoke or carry an open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions can result in personal injury. Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved. Failure to follow these instructions can result in personal injury.
  1. Disconnect the battery ground cable.
  2. Relieve the fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE  under FUEL SYSTEM.
  3. Remove the upper intake manifold. See UPPER INTAKE MANIFOLD  under AIR INDUCTION SYSTEMS.
  4. Disconnect the engine control sensor wiring from the fuel injectors. See Fig 1.
  5. Disconnect the fuel tube spring lock coupling. See DISCONNECTING (SPRING LOCK COUPLING)  under FUEL LINE CONNECTORS (B2300, B3000, B4000 & TRIBUTE). See Fig 2.
  6. Disconnect the vacuum hose. See Fig 3.
  7. Remove the 4 bolts. See Fig 4.
  8. Remove the fuel injection supply manifold and the fuel injectors as an assembly. See Fig 4.
  9. Remove the fuel injectors. See Fig 5.
  10. Remove and discard the fuel injector "O" ring seals. See Fig 6.
  11. To install, reverse the removal procedure. Lubricate the NEW fuel injector "O" ring seals with clean engine oil. See TORQUE SPECIFICATIONS .

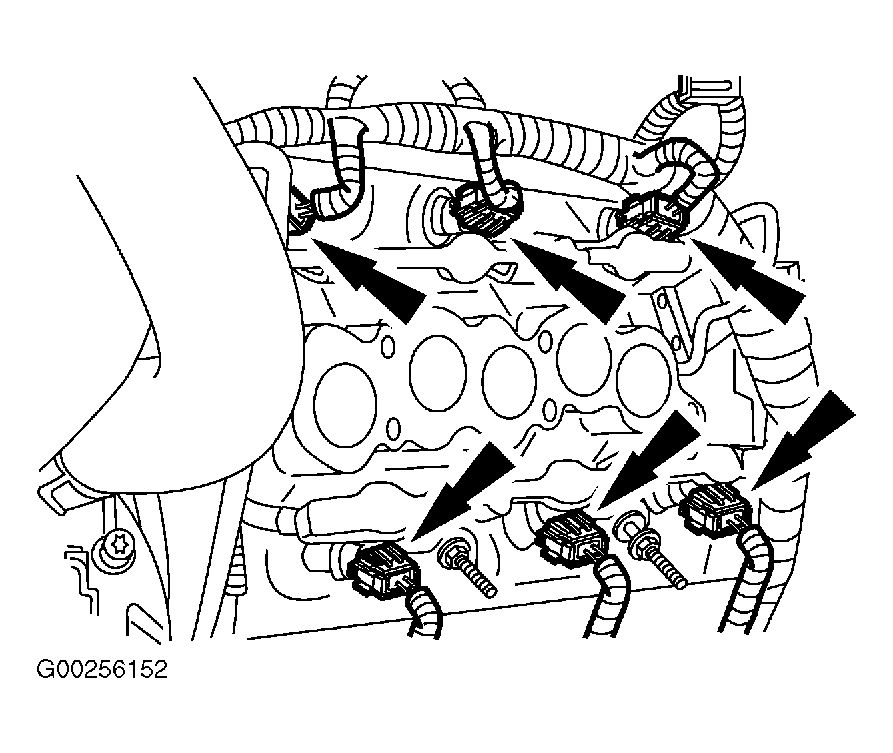

Fig 1: Locating Fuel Injector Harness Connectors - B3000
G00256152Courtesy of MAZDA MOTORS CORP.

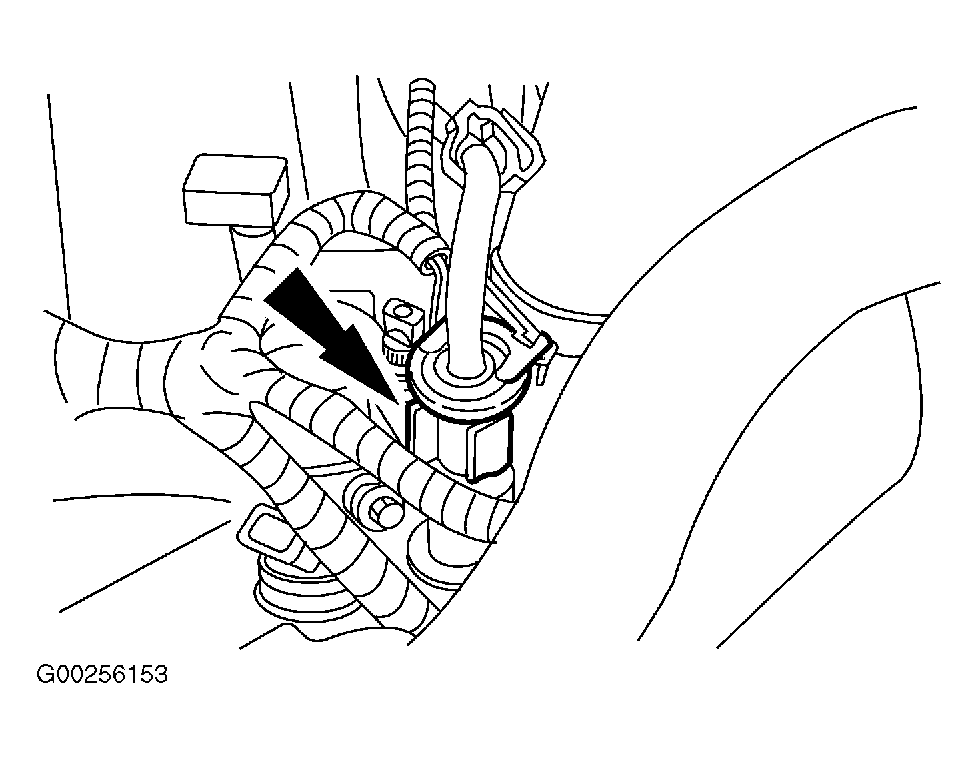

Fig 2: Disconnecting Fuel Tube Spring Lock Coupling - B3000
G00256153Courtesy of MAZDA MOTORS CORP.

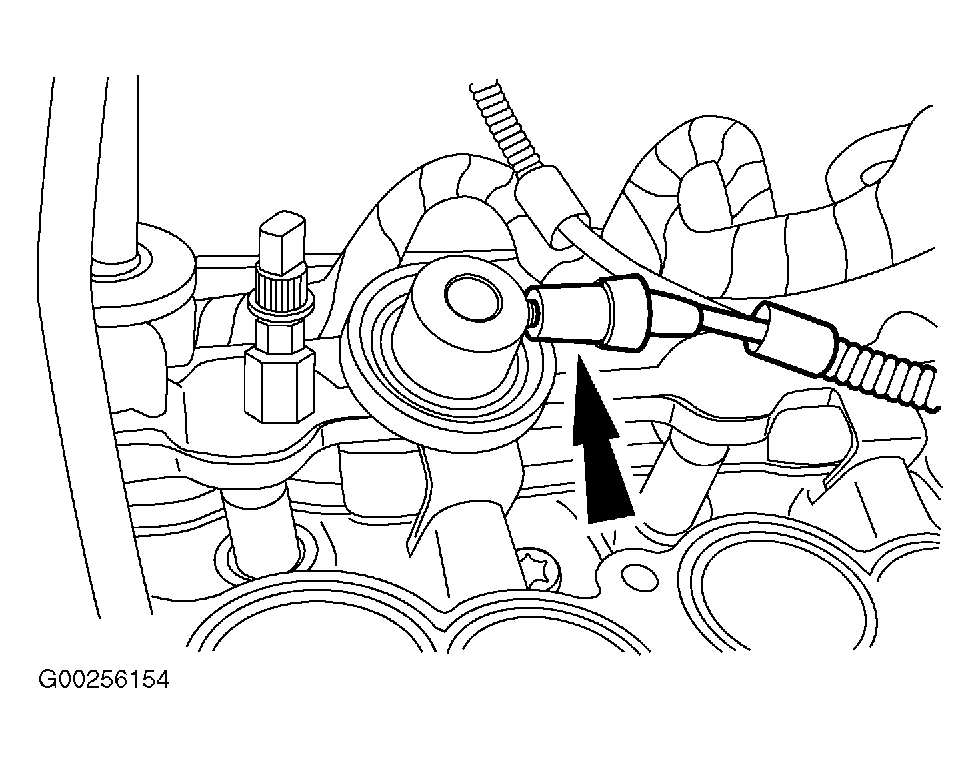

Fig 3: Locating Vacuum Hose - B3000
G00256154Courtesy of MAZDA MOTORS CORP.

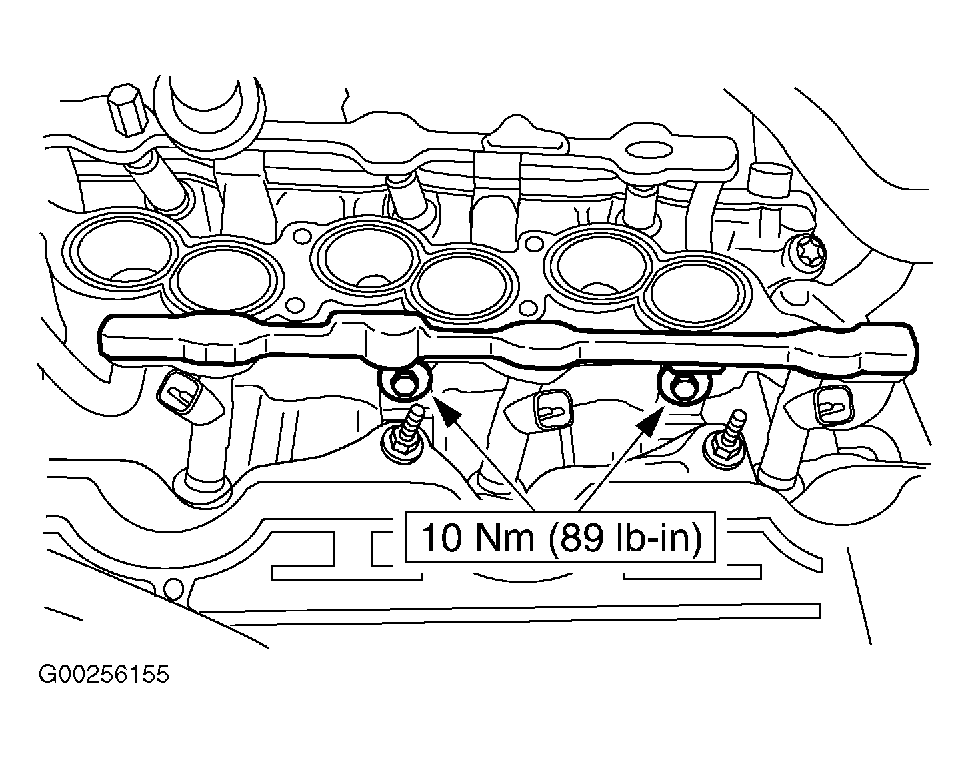

Fig 4: Removing & Installing Fuel Injection Supply Manifold - B3000
G00256155Courtesy of MAZDA MOTORS CORP.

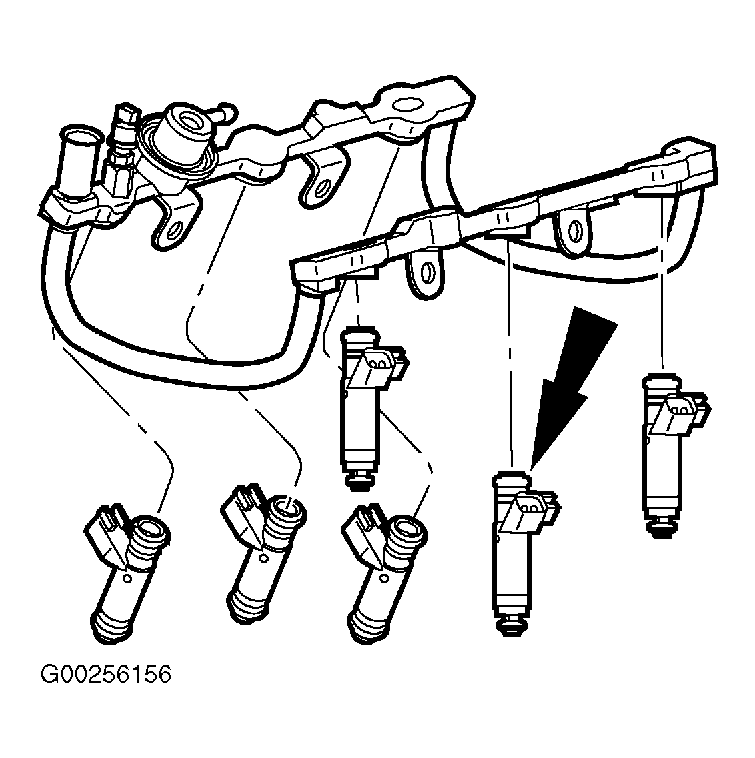

Fig 5: Removing & Installing Fuel Injectors - B3000
G00256156Courtesy of MAZDA MOTORS CORP.
Fig 6: Removing & Installing Fuel Injector "O" Rings - B3000 & B4000
G00256157Courtesy of MAZDA MOTORS CORP.
