Rear Antenna Feeder Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- Disconnect the connection between the rear antenna feeder and the power antenna. (With manual antenna)
- Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
- Turn over the floor covering from the right side. (See FLOOR COVERING REMOVAL/INSTALLATION .)
- Disconnect the connection between the front-antenna feeder and the rear antenna feeder.

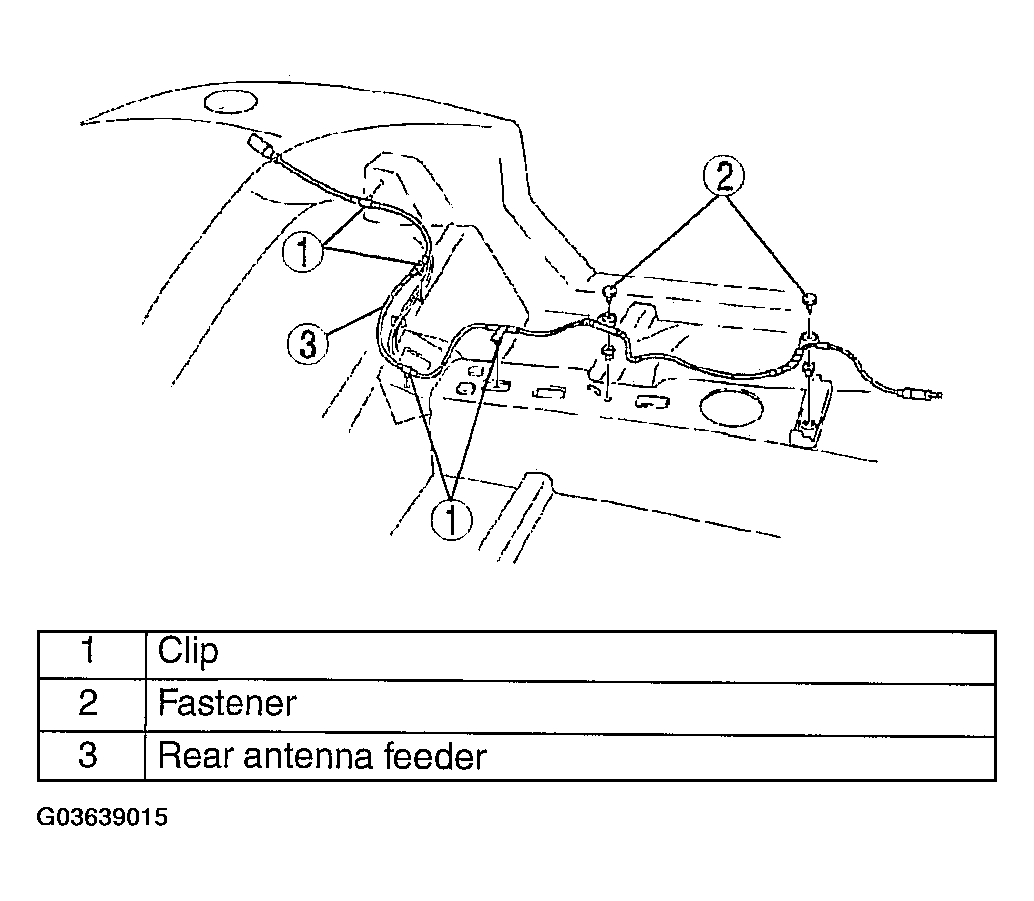

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
