Floor Covering Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the seats.
  3. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
  4. Remove the heater unit. (See HEATER UNIT REMOVAL/INSTALLATION .)
  5. Remove the front side trims. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  6. Remove the rear package trims. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  7. Remove the rear end mat.
  8. Remove the seat belts. (See SEAT BELT REMOVAL/INSTALLATION .)
  9. Remove the footrest.
  10. Remove the fasteners.
  11. Disengage the tabs A from the body.
  12. Remove the floor covering.
  13. Install in the reverse order of removal.

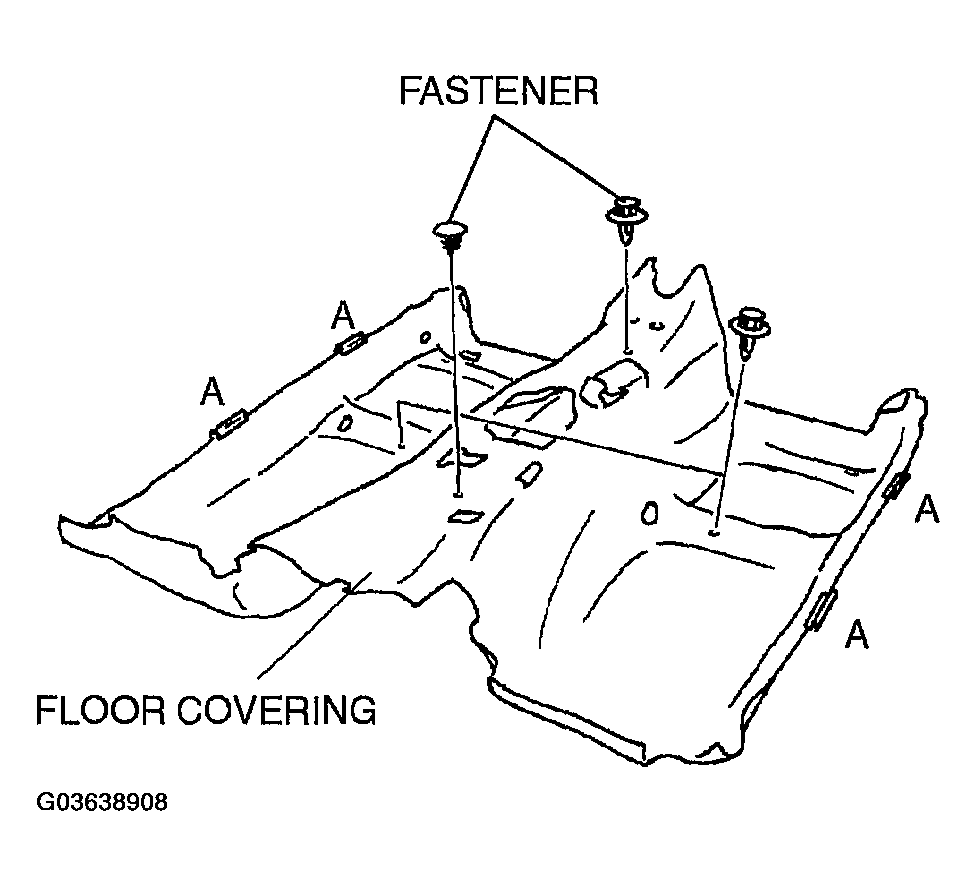

    Fig 1: Removing Floor Covering
    G03638908Courtesy of MAZDA MOTORS CORP.
