Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the front side maker light.
  4. Remove in the order indicated in the table.

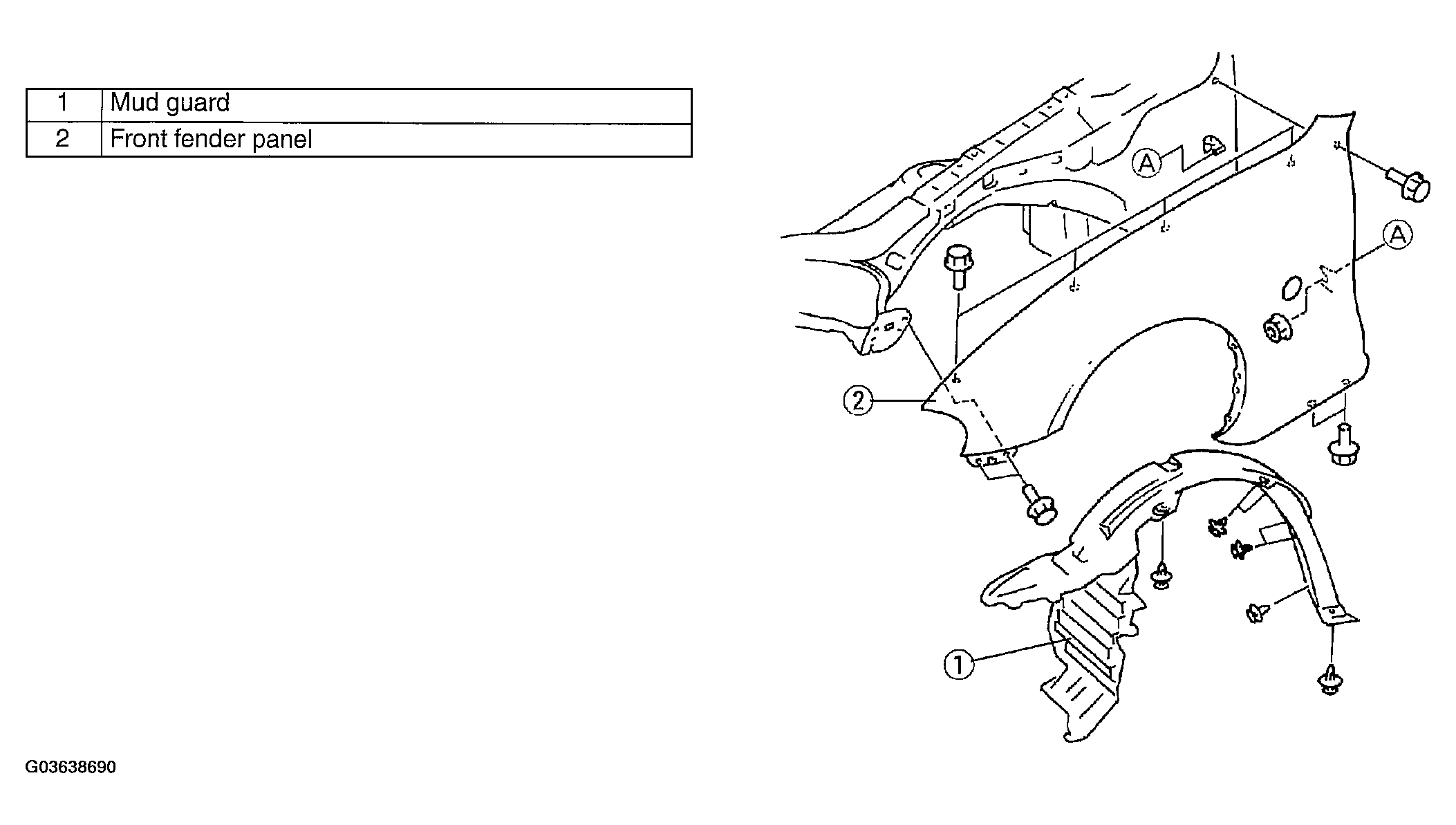

    Fig 1: Removing Front Fender Panel
    G03638690Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
