Front Bumper Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the front fog light connector. (With front fog light)
  3. Remove in the order indicated in the table.

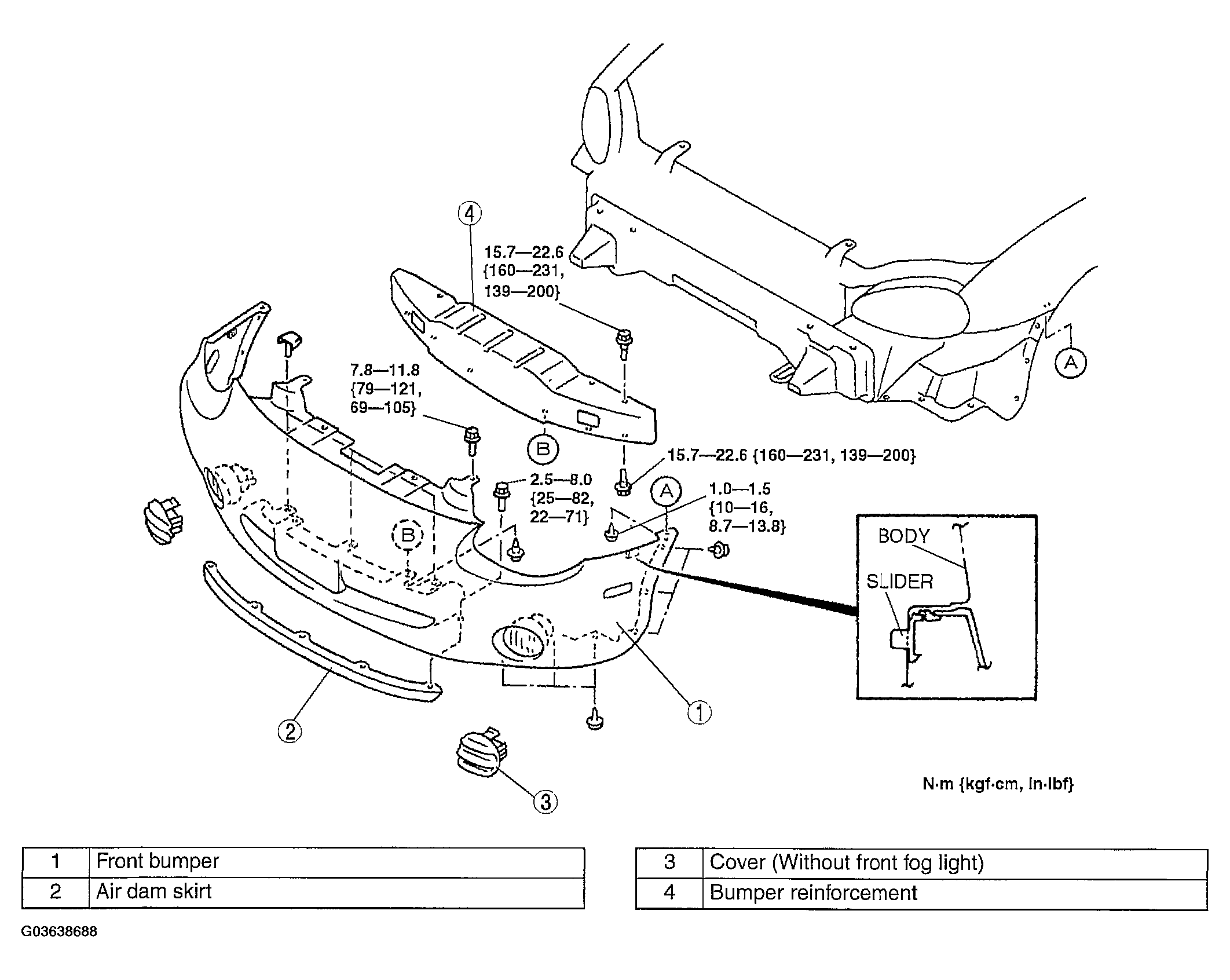

    Fig 1: Removing Front Bumper - With Torque Specifications
    G03638688Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
