Headlight Cleaner Motor Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the windshield washer tank. (See WINDSHIELD WASHER TANK REMOVAL/INSTALLATION .)
  3. Remove the bolt, then remove the bracket.
  4. Remove the headlight cleaner motor, then remove the grommet.
  5. Install in the reverse order of removal.

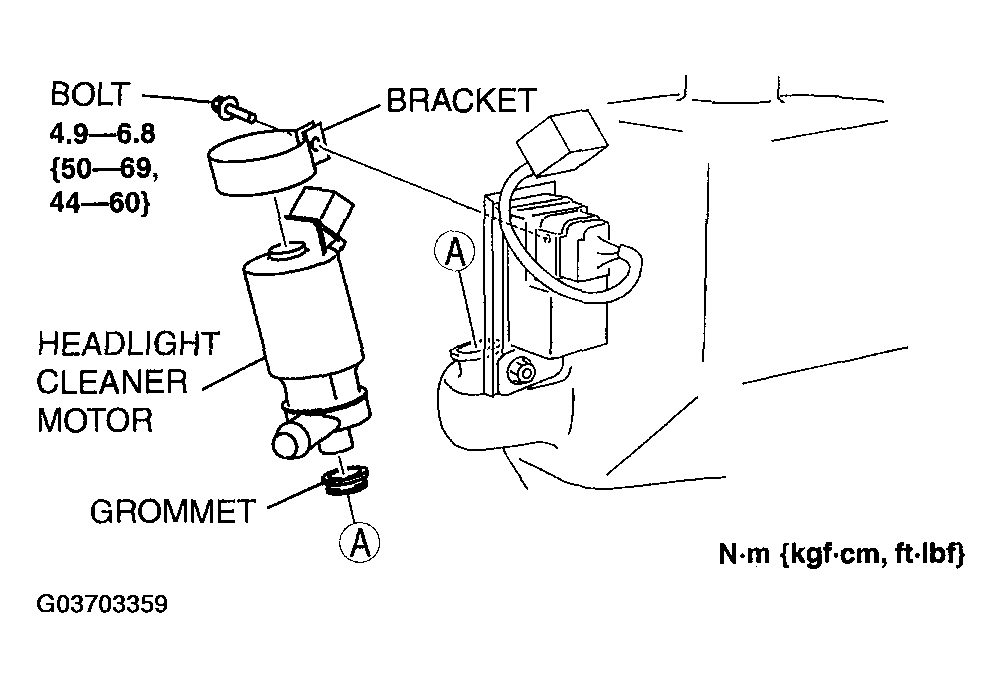

    Fig 1: Removing Headlight Cleaner Motor, And Grommet With Torque Specification
    G03703359Courtesy of MAZDA MOTORS CORP.
