Windshield Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the windshield washer motor connector.

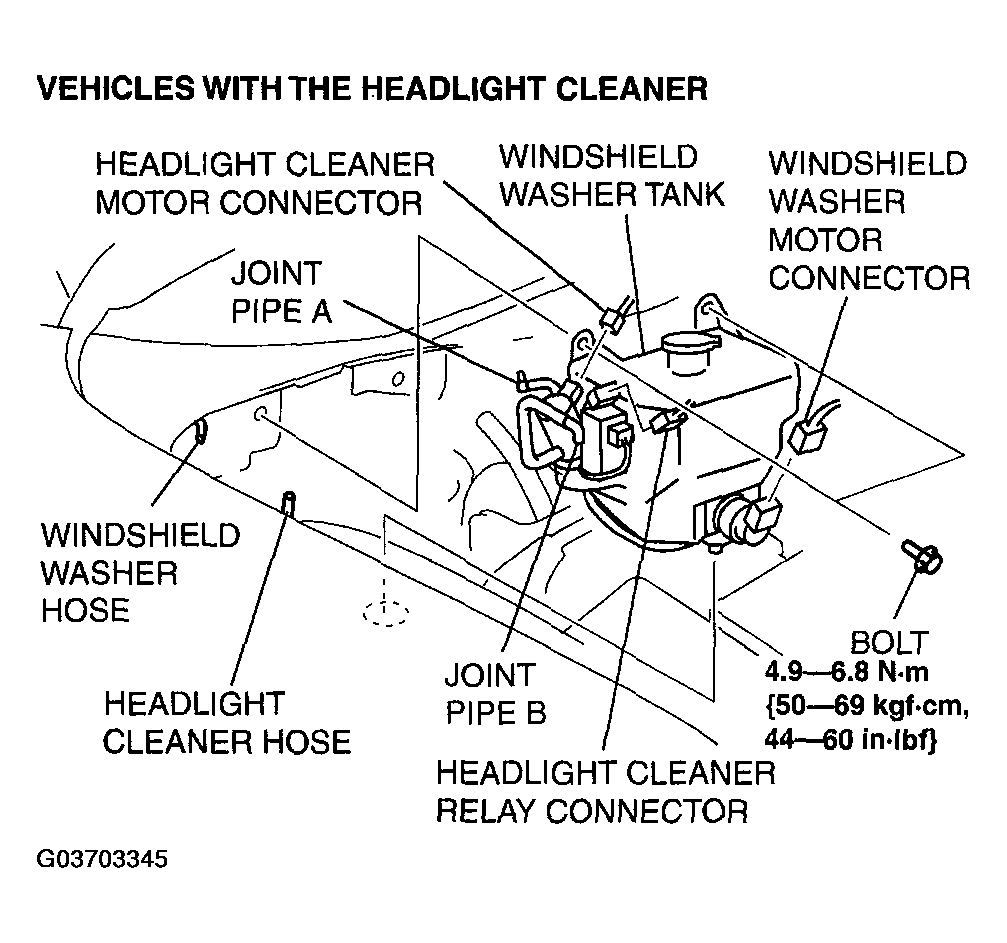

Fig 1: Removing Windshield Washer Tank With Torque Specification (Vehicles With Headlight Cleaner)
Courtesy of MAZDA MOTORS CORP.

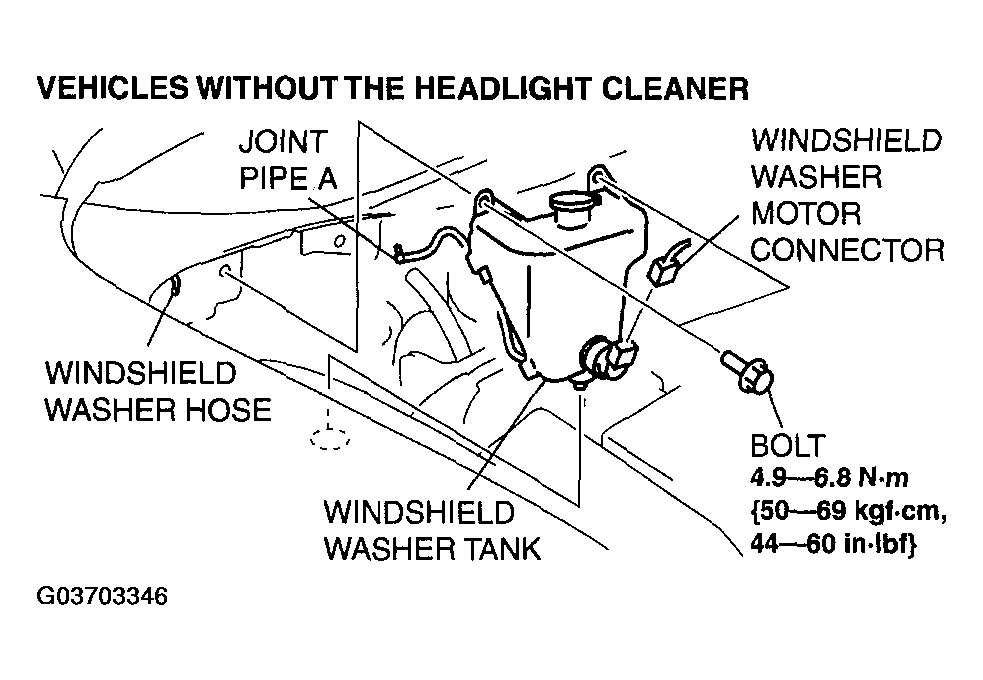

Fig 2: Removing Windshield Washer Tank With Torque Specification (Vehicles Without Headlight Cleaner)
Courtesy of MAZDA MOTORS CORP.
Disconnect the headlight cleaner motor connector. (Vehicles with the headlight cleaner)
Disconnect the headlight cleaner relay connector. (Vehicles with the headlight cleaner)
Disconnect the windshield washer hose from joint pipe A.
Disconnect the headlight cleaner hose from joint pipe B. (Vehicles with the headlight cleaner)
Remove the bolts, then remove the windshield washer tank.
Install in the reverse order of removal.
