TCM Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover.
(See ENGINE COVER REMOVAL/INSTALLATION .)
Remove the battery cover.
Disconnect the negative battery cable.
Remove in the order indicated in the table.
Install in the reverse order of removal.

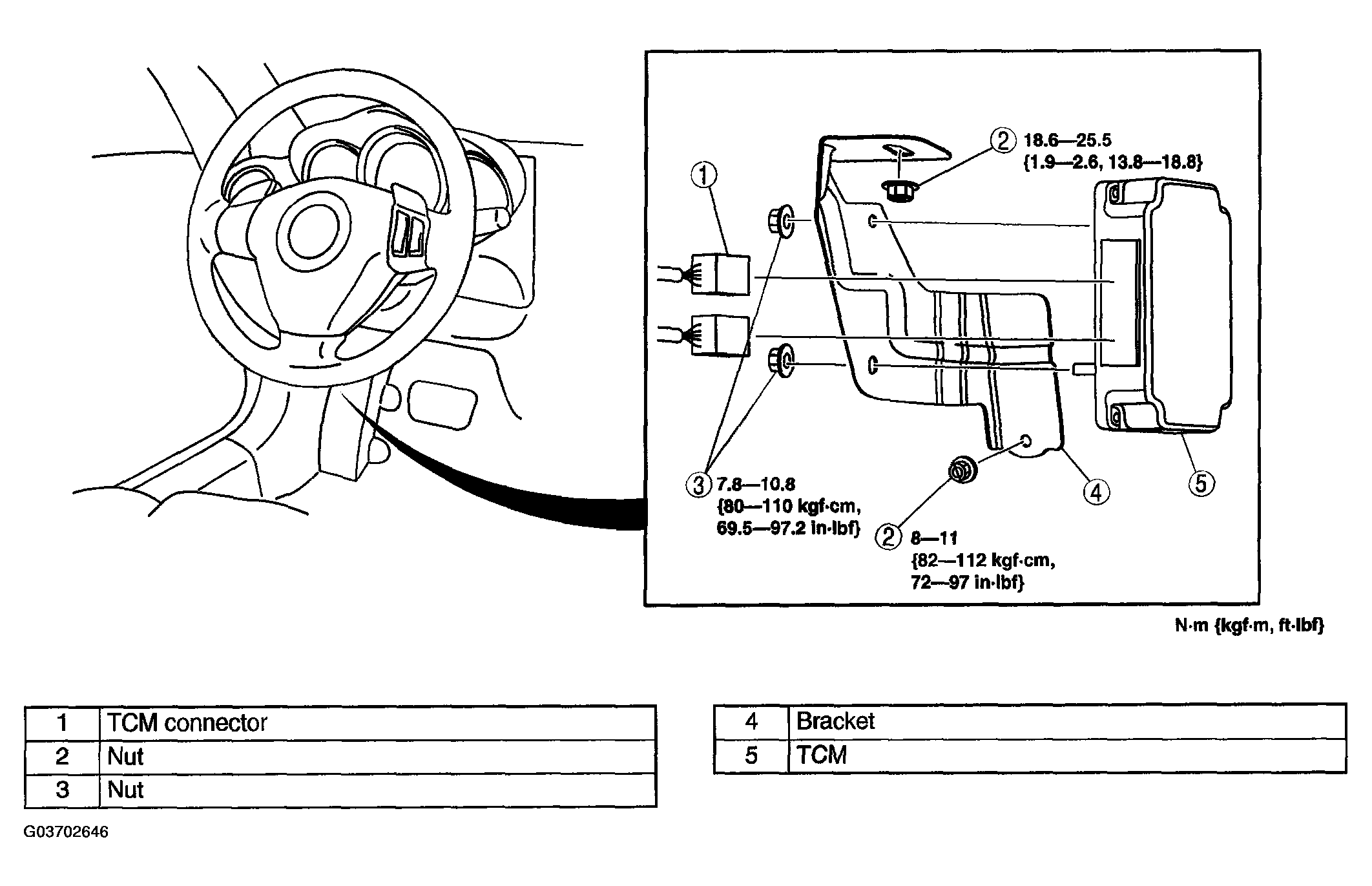

Fig 1: Removing TCM With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
