Generator Drive Belt

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
  2. Loosen generator installation bolt A and locknut B.
  3. Adjust the drive belt deflection and tension by turning adjusting bolt C to the specification.

    Drive belt deflection (with pressure of 98 N {10 kgf, 22 lbf})

    1. 4.5-5.0 mm {0.18-0.19 in}

    Drive belt tension (when using the SST)

    1. 519-666 N {53.0-67.9 kgf, 117-149 lbf}

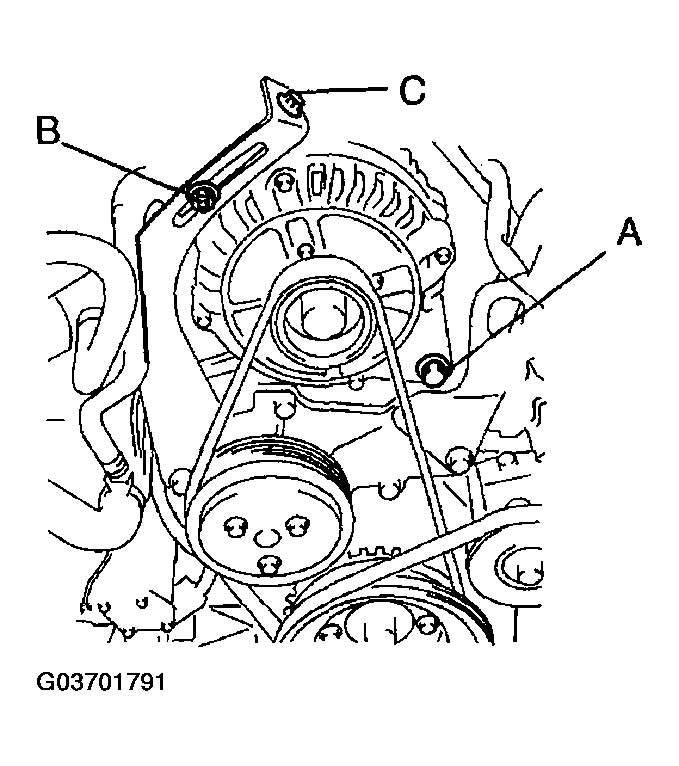

    Fig 1: Tightening Generator Bolt And Locknut
    G03701791Courtesy of MAZDA MOTORS CORP.
  4. Tighten generator installation bolt A and locknut B to the specified torque.

    Tightening torque

    1. A: 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
    2. B: 20-30 N.m {2.1-3.0 kgf.m, 15-22 ft.lbf}
  5. Crank the engine and measure the deflection and tension again. If not within the specification, repeat from Step  2 again.
  6. Install the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
