Sliding Door Trim Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable if equipped with power window.
  2. Remove the sliding door garnish. (See SLIDING DOOR GARNISH REMOVAL/INSTALLATION .)
  3. Remove the sliding door upper frame. (See SLIDING DOOR UPPER FRAME REMOVAL/INSTALLATION .)
  4. Remove the sliding door inner handle.
  5. Remove the regulator handle if equipped.
  6. Disengage clips A using a fastener remover.
  7. Pull the sliding door trim upward, then disengage hook B from the body.
  8. Disconnect the power window sub switch connector if equipped.
  9. Remove the sliding door trim.

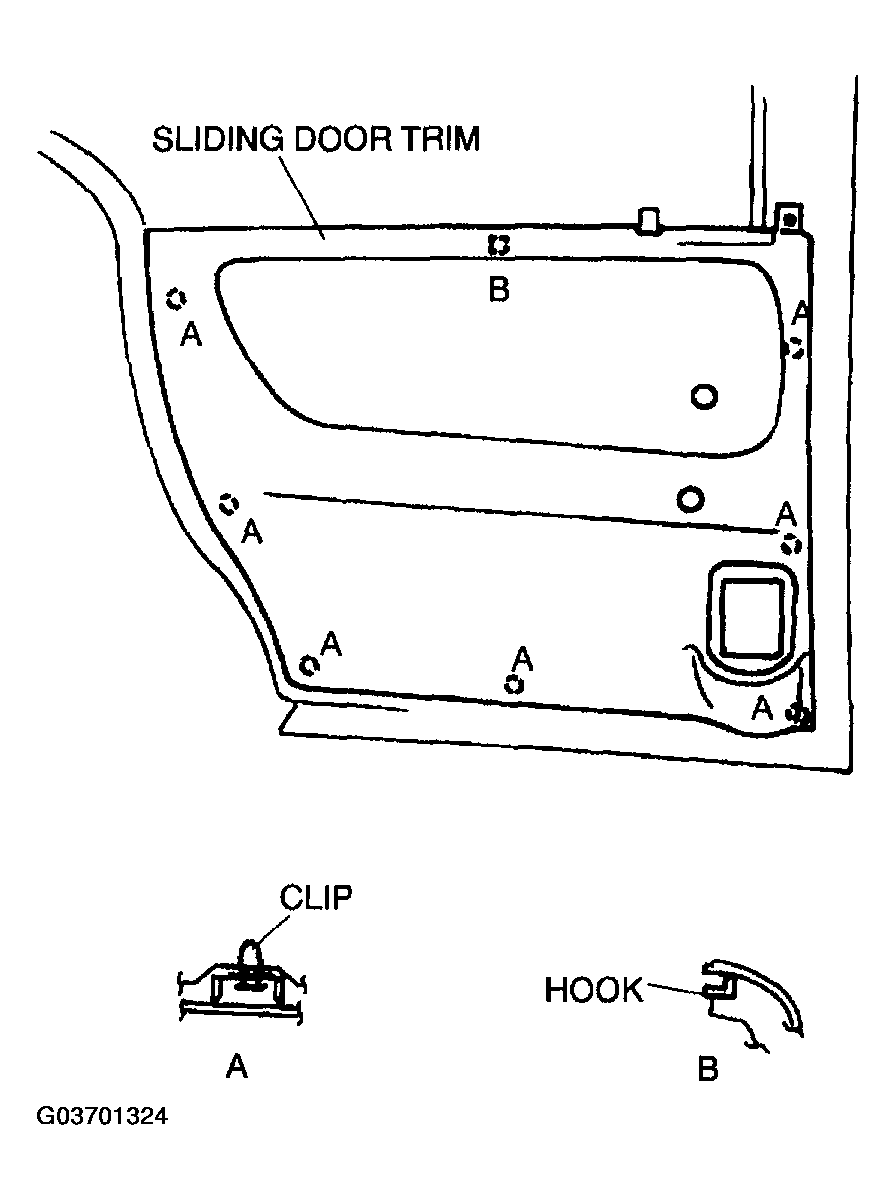

    Fig 1: Removing Sliding Door Trim
    G03701324Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
