Sliding Door Upper Frame Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door garnish. (See SLIDING DOOR GARNISH REMOVAL/INSTALLATION .)
  2. Remove the fastener.
  3. Pull the sliding door upper frame toward you, then disengage clips A from the body, and remove the sliding door upper frame.
  4. Install in the reverse order of removal.

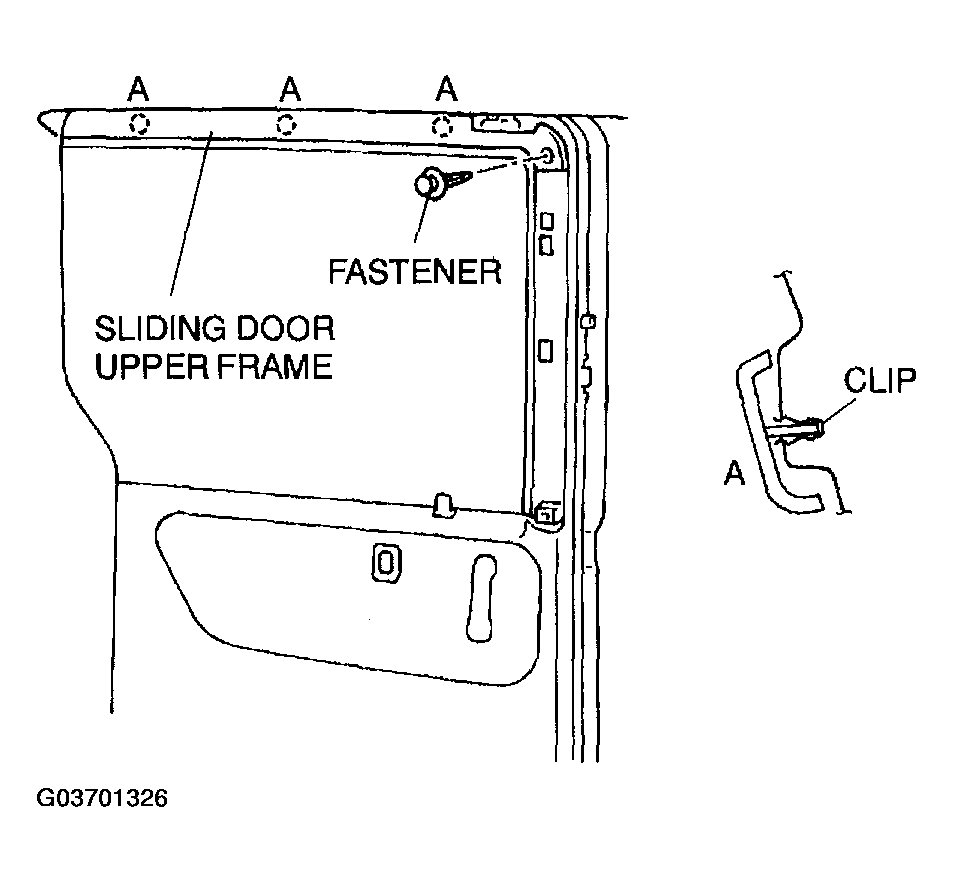

    Fig 1: Removing Sliding Door Upper Frame
    G03701326Courtesy of MAZDA MOTORS CORP.
