On-Vehicle Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the terminal component No.2 connector.

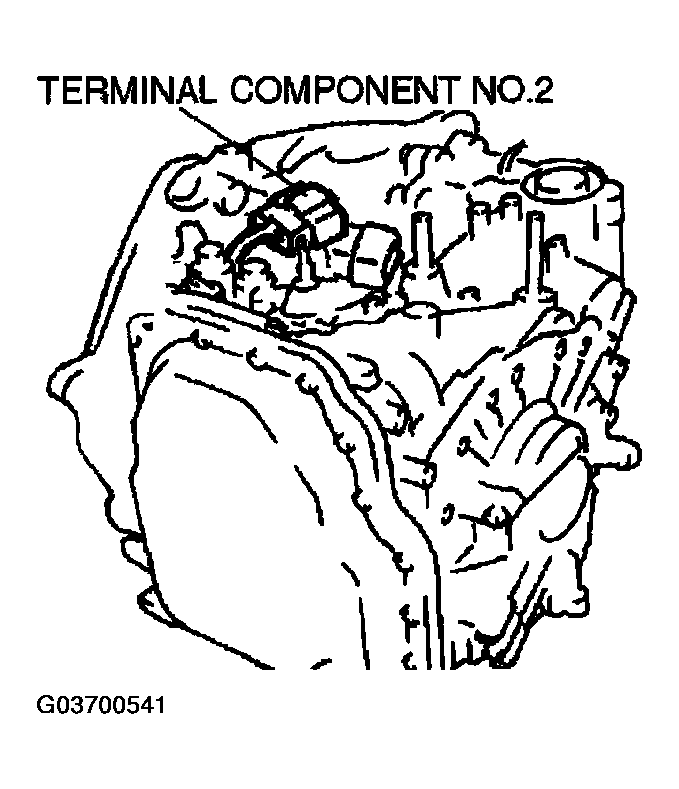

Fig 1: Identifying Terminal Component No.2 Connector
Courtesy of MAZDA MOTORS CORP.
Measure resistance between the terminals E and F.
- If not as specified, inspect the input/turbine speed sensor. (See INSPECTION OF INDIVIDUAL PART .)
Fig 2: Identifying Terminal Component No. 2 Transaxle Case Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.

Resistance (ATF temperature: 20 °C {68 °F})
1. 513-627 ohms
Connect the terminal component No.2 connector.
