Hydraulic Lash Adjuster (HLA) Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the splash shield (RH).
  3. Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove the drive belt. (See DRIVE BELT REPLACEMENT .)
  5. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION .)
  6. Remove the water pump drive belt. (See WATER PUMP DRIVE BELT .)
  7. Remove the water pump drive belt pulley. (See WATER PUMP DRIVE BELT PULLEY REMOVAL NOTE .) (See WATER PUMP DRIVE BELT PULLEY INSTALLATION NOTE .)
  8. Remove the camshaft oil seal. (See CAMSHAFT OIL SEAL REMOVAL NOTE .) (See CAMSHAFT OIL SEAL INSTALLATION NOTE .)
  9. Remove the camshaft oil seal housing.
  10. Remove in the order indicated in the table.
  11. Install in the reverse order of removal.

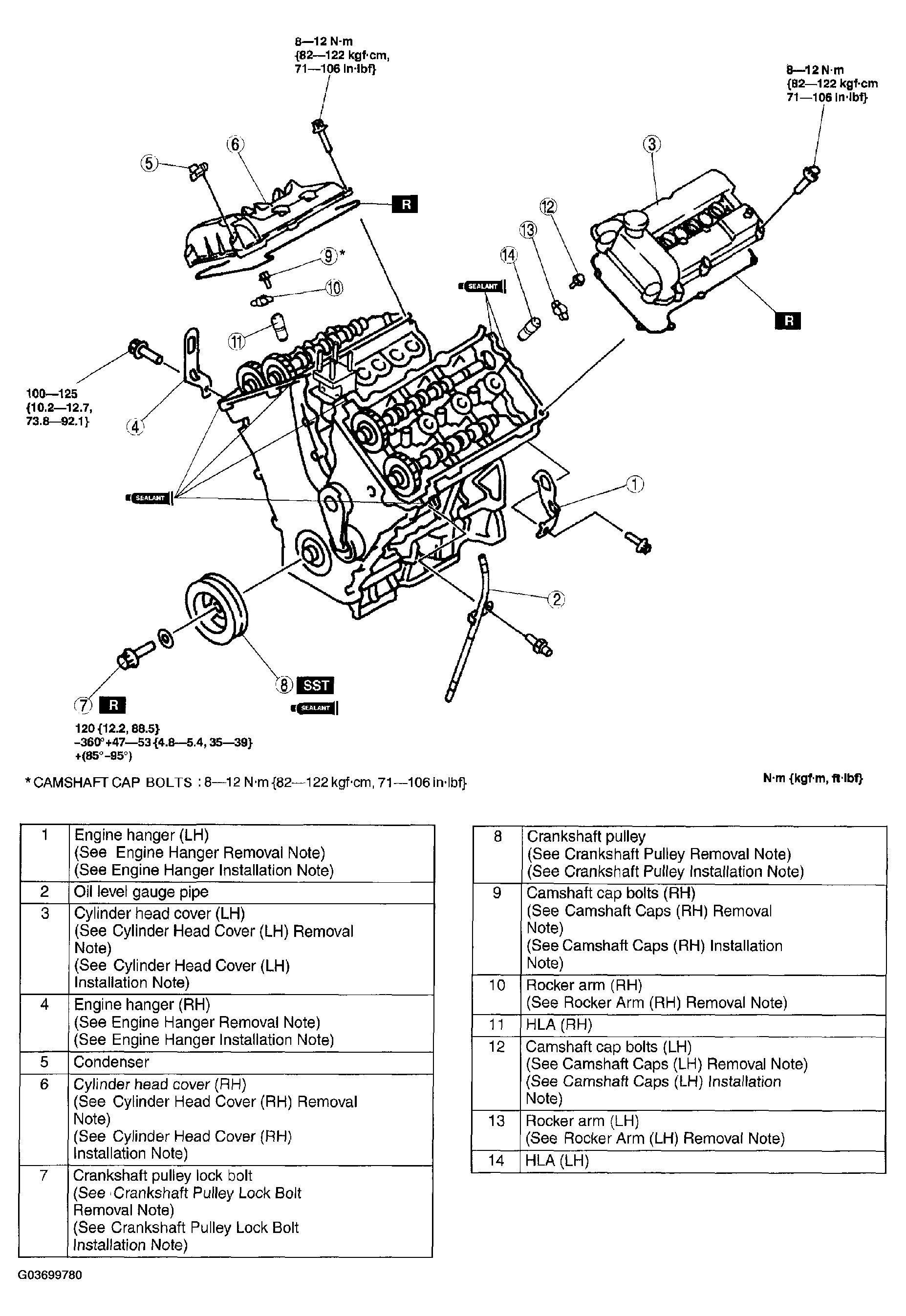

    Fig 1: Identifying Hydraulic Lash Adjuster (HLA) Components
    G03699780Courtesy of MAZDA MOTORS CORP.
