Water Pump Drive Belt Pulley Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump pulley using the SST.

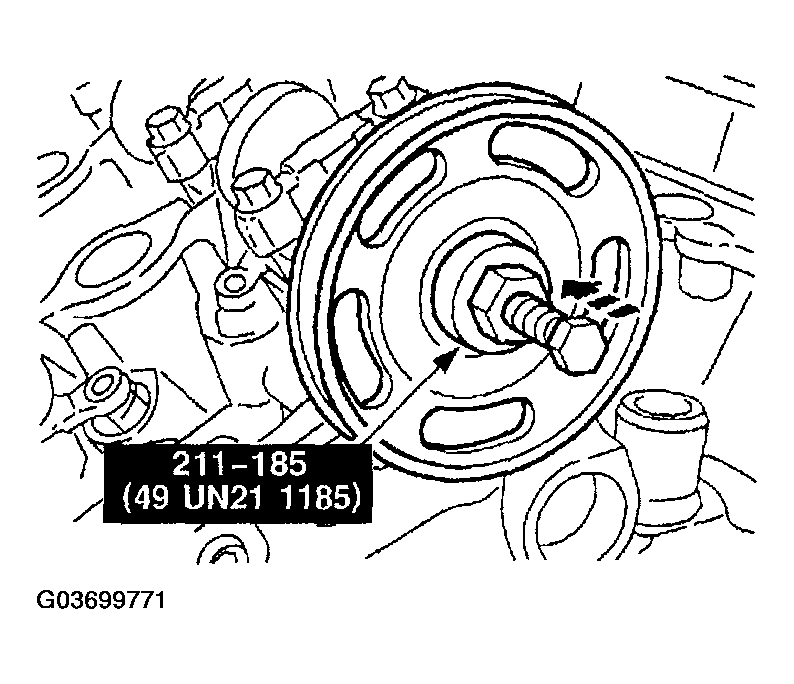

    Fig 1: Installing Water Pump Pulley Using SST
    G03699771Courtesy of MAZDA MOTORS CORP.
