Wiper And Washer Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the wiper and washer switch terminals using an ohmmeter.
- If not as specified, replace the wiper and washer switch.

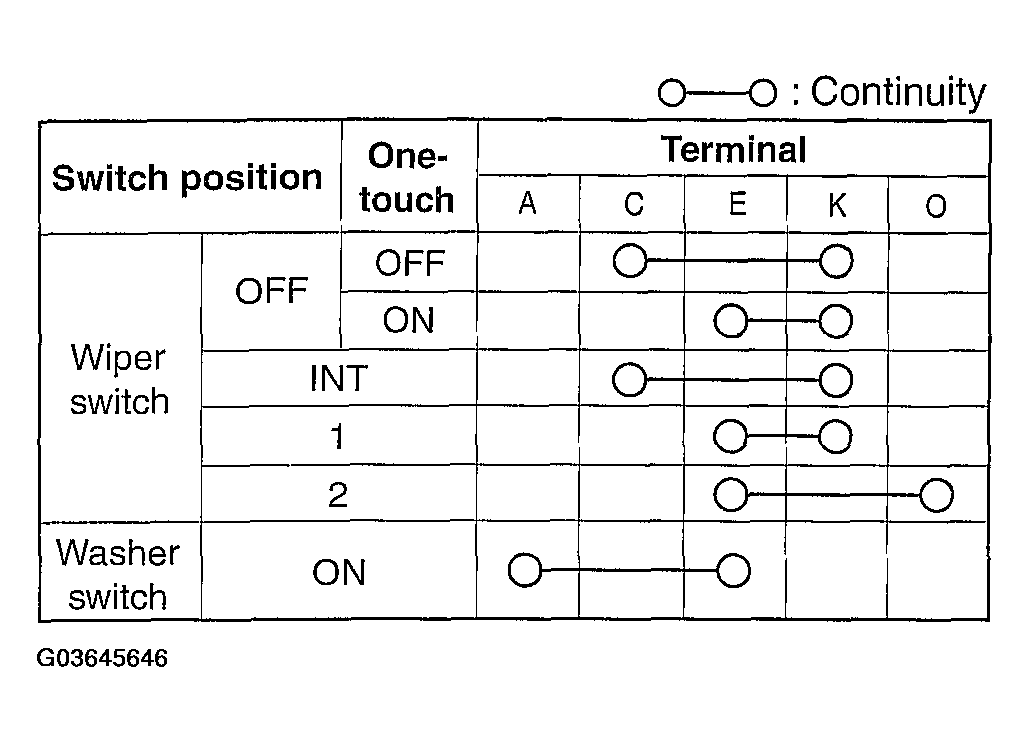

  Fig 1: Wiper And Washer Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

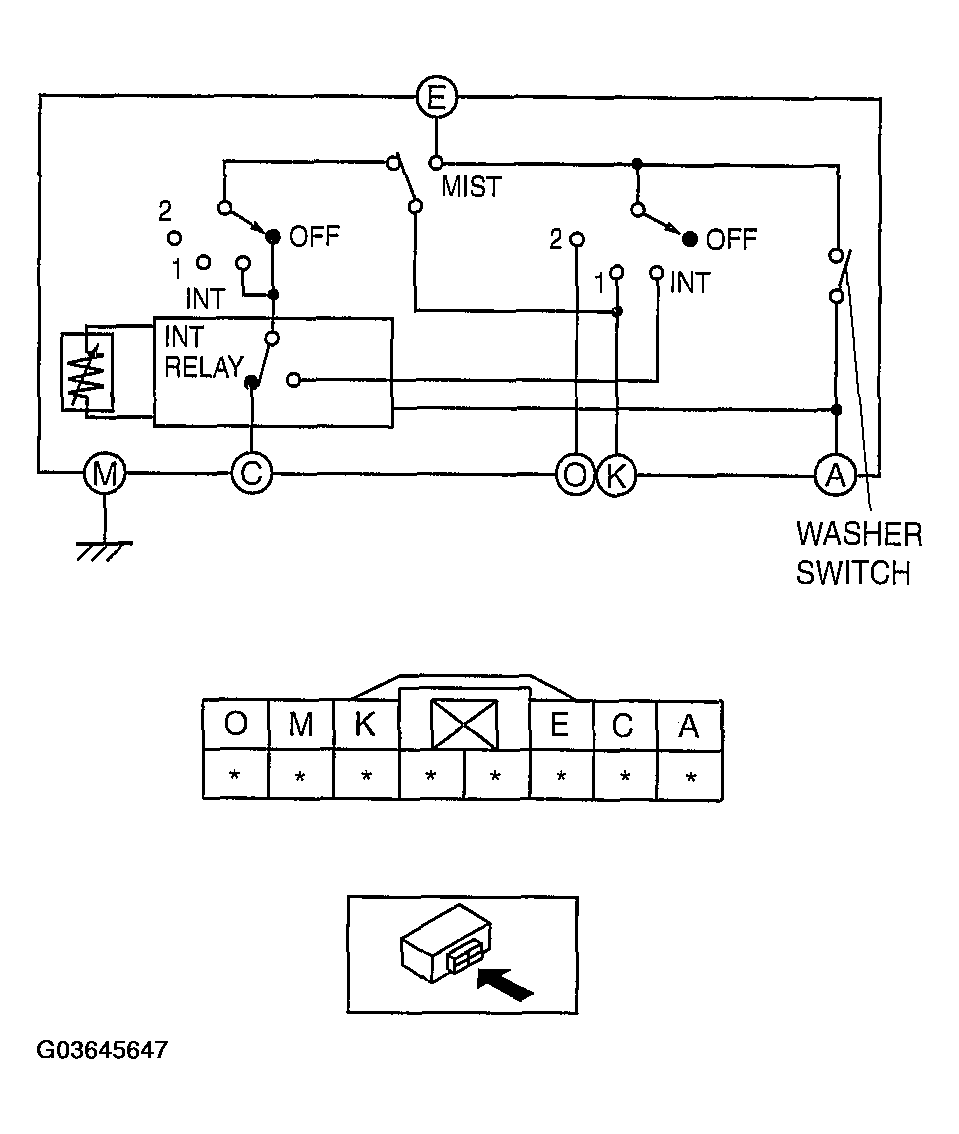

  Fig 2: Wiper And Washer Switch Circuit Diagram And Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
