Wiper And Washer Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Remove in the order indicated in the table.

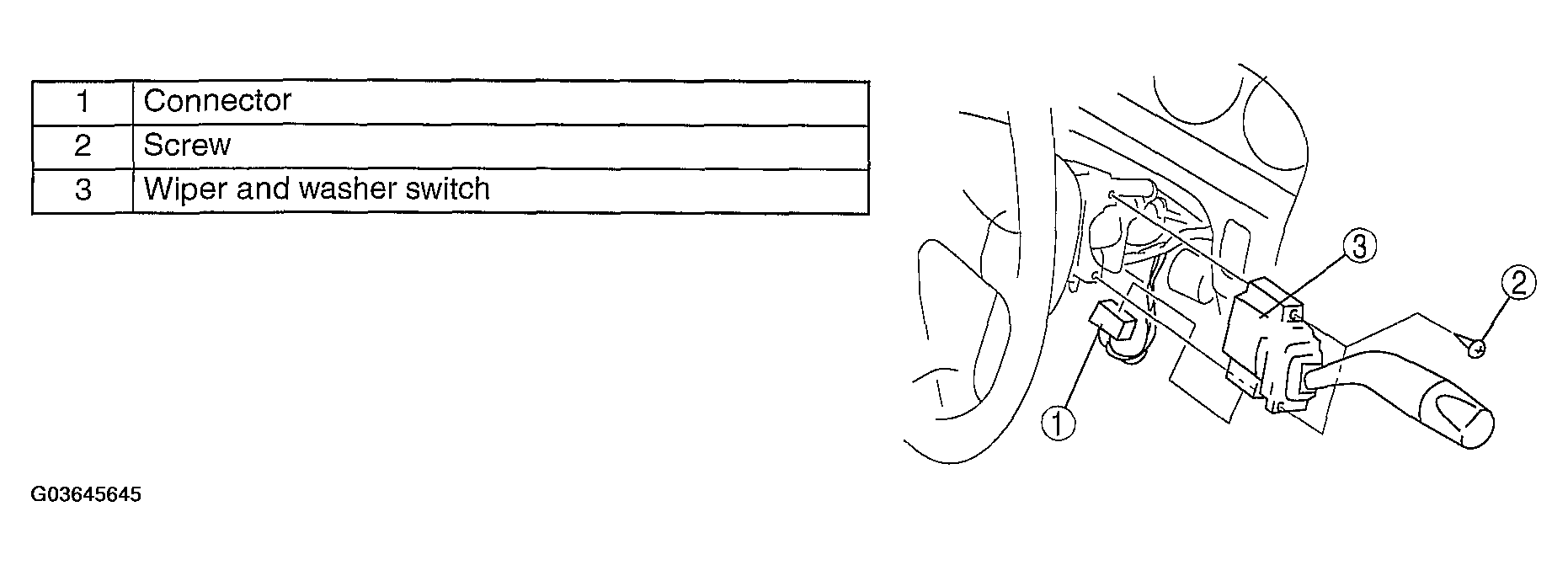

    Fig 1: Wiper And Washer Switch Removal Sequence
    G03645645Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
