Section 364 (Symptom Troubleshooting [Automatic Transaxle Aw6A-El)): Foreword

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

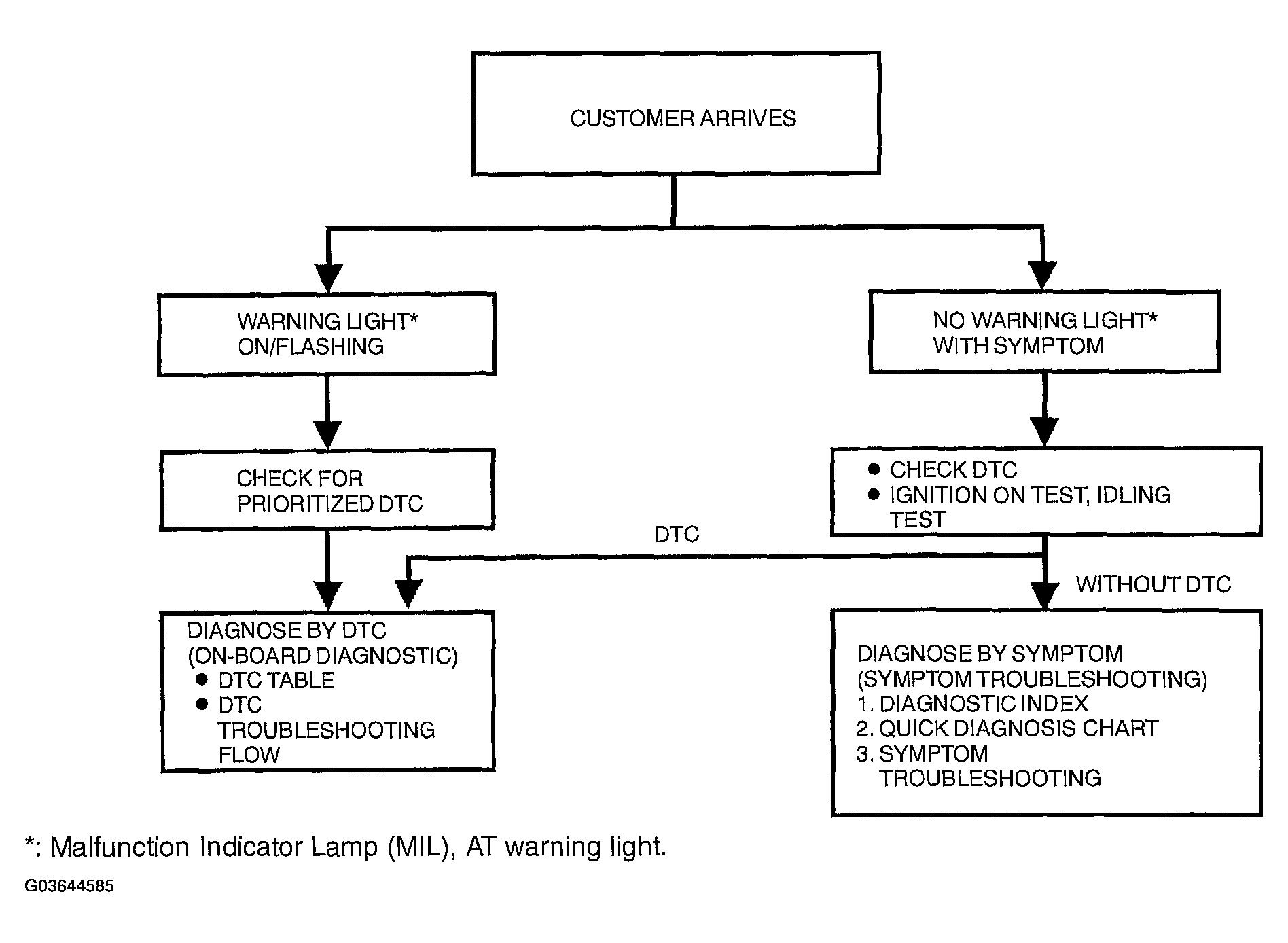

When the customer reports a vehicle malfunction, inspect the malfunction indicator lamp (MIL) indication, AT warning indicator light flash, and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.
- If a DTC exists, diagnose the applicable DTC inspection.
  (See DTC TABLE .)
- If a DTC does not exist, the MIL does not illuminate and the AT warning indicator light illuminate, diagnose the applicable symptom troubleshooting.
  (See SYMPTOM TROUBLESHOOTING ITEM TABLE .)

  Fig 1: Symptom Troubleshooting Item Table [AW6A-EL]
  Courtesy of MAZDA MOTORS CORP.
