Water Pump Removal/Installation: AJ

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove the air cleaner. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT  .)
  5. Remove the water pump drive belt pulley. (See WATER PUMP DRIVE BELT PULLEY REMOVAL NOTE .)
  6. Remove in the order indicated in the table.

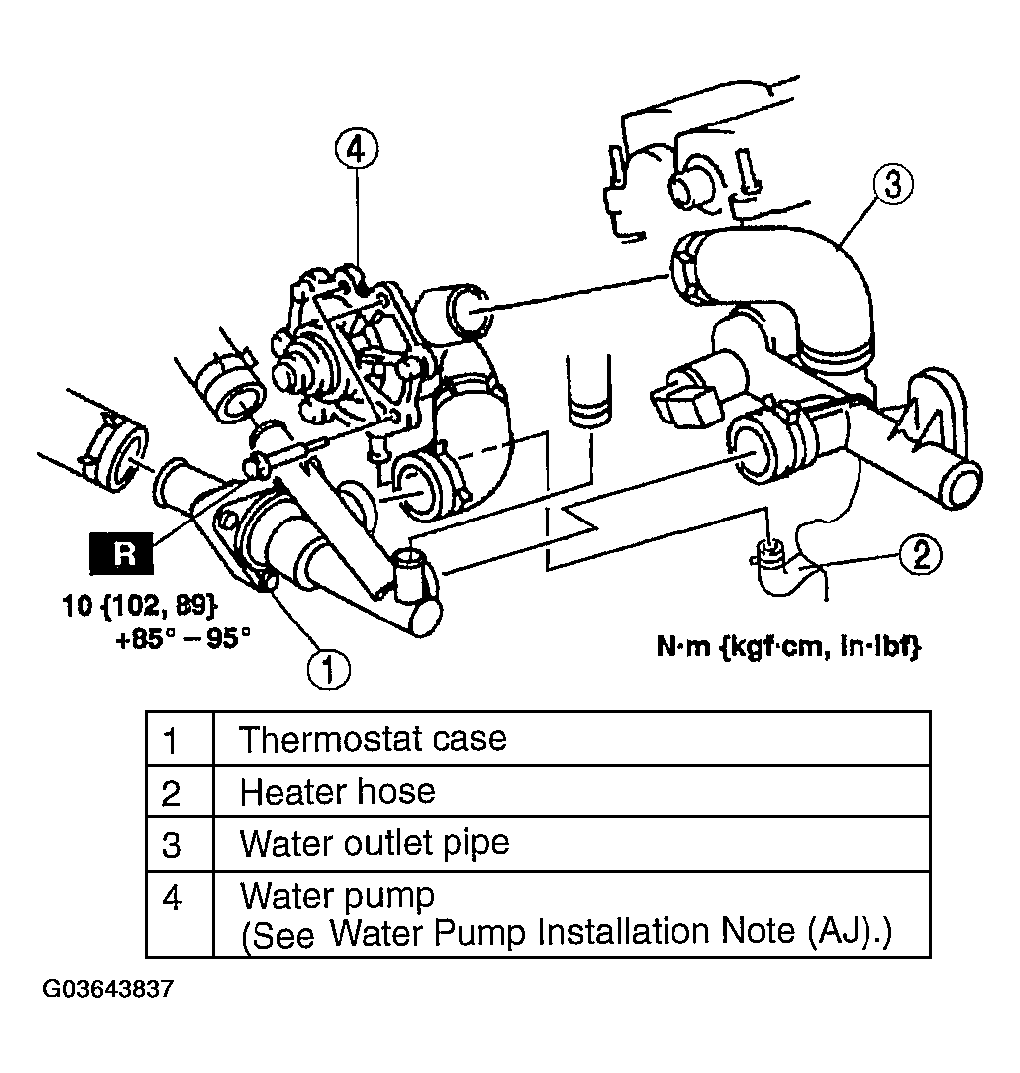

    Fig 1: Removing Water Pump (AJ) (Torque Specs)
    G03643837Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Install the new water pump drive belt pulley. (See WATER PUMP DRIVE BELT PULLEY INSTALLATION NOTE .)
  9. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT  .)
