Water Pump Drive Belt Pulley Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Replace part A of the SST [303-009 (49 UN30 3009)] with the SST [303-457 (49 UN30 3457)].

Fig 1: Identifying SST Parts
Courtesy of MAZDA MOTORS CORP.
Remove the water pump pulley using the SSTs .

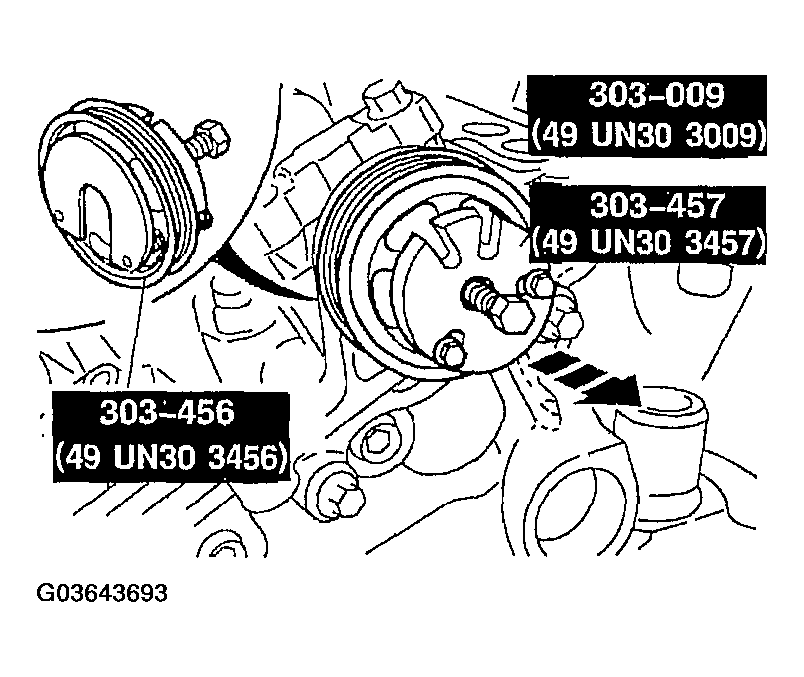

Fig 2: Removing Water Pump Pulley
Courtesy of MAZDA MOTORS CORP.
