Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel. (MTX) (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  2. Remove the drive plate. (ATX) (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

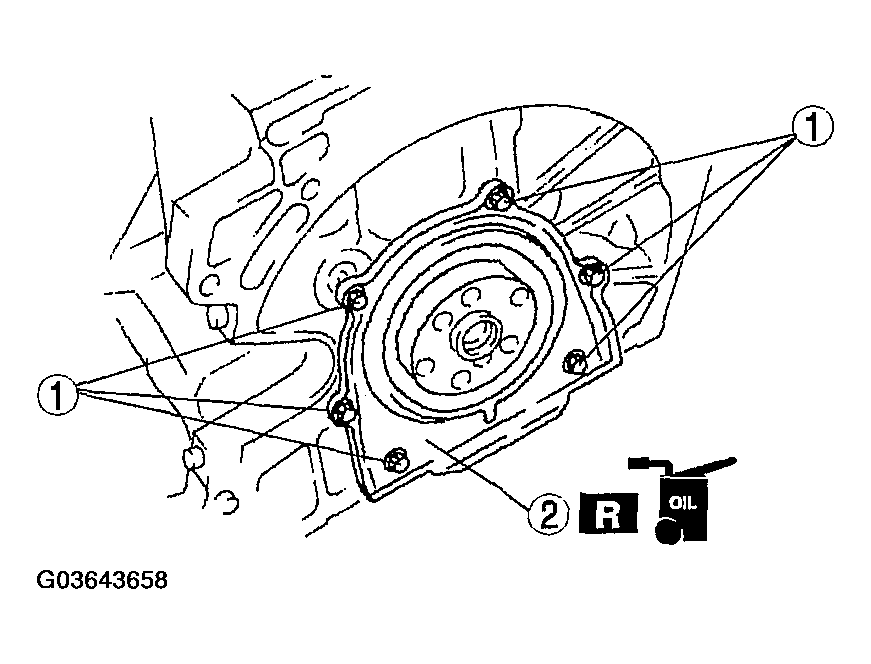

    Fig 1: Removing Rear Oil Seal
    G03643658Courtesy of MAZDA MOTORS CORP.
    REAR OIL SEAL REMOVING ORDER

    1 Bolt
    2 Rear oil seal (See REAR OIL SEAL INSTALLATION NOTE )
  4. Install in the reverse order of removal.
