Rear Oil Seal Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the mating faces as shown in the figure.
Thickness

4.0-6.0 mm {0.16-0.23 in}

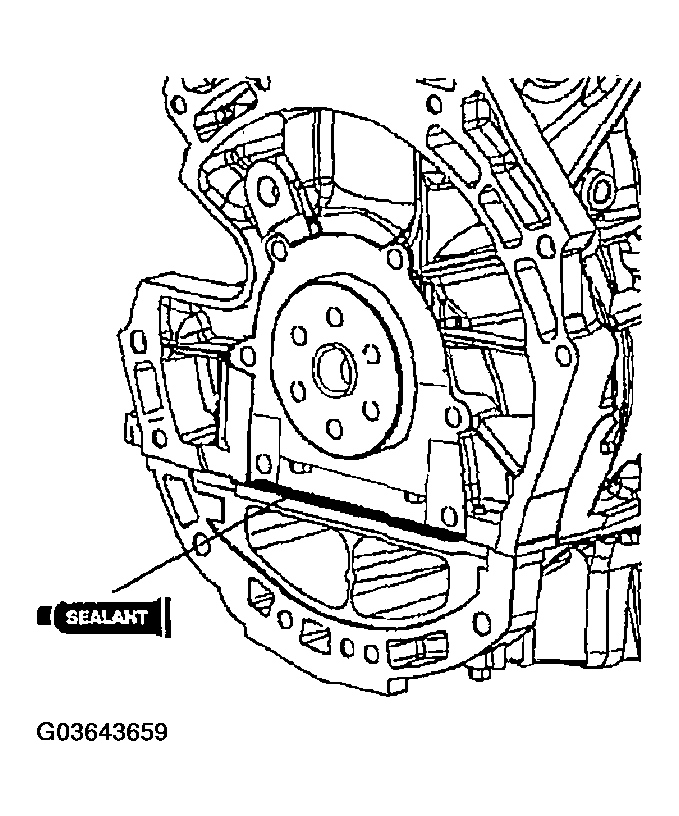

Fig 1: Applying Silicone Sealant To Mating Faces
Courtesy of MAZDA MOTORS CORP.
Apply clean engine oil to the new oil seal lip.
Install the rear oil seal using the jig as shown in the illustration.

Fig 2: Installing Rear Oil Seal
Courtesy of MAZDA MOTORS CORP.
Tighten the rear oil seal bolts in the order as shown.
Tightening torque

8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf}

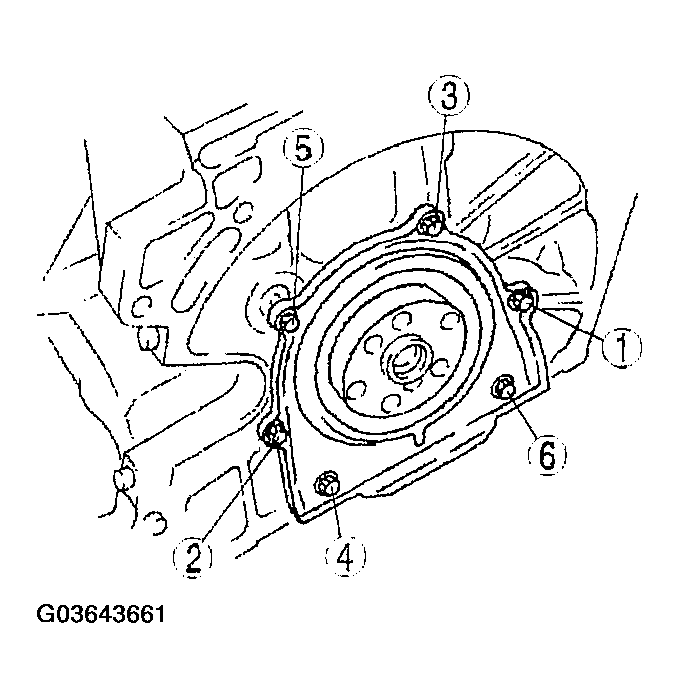

Fig 3: Rear Oil Seal Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
