Front Resistor Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the illustration.

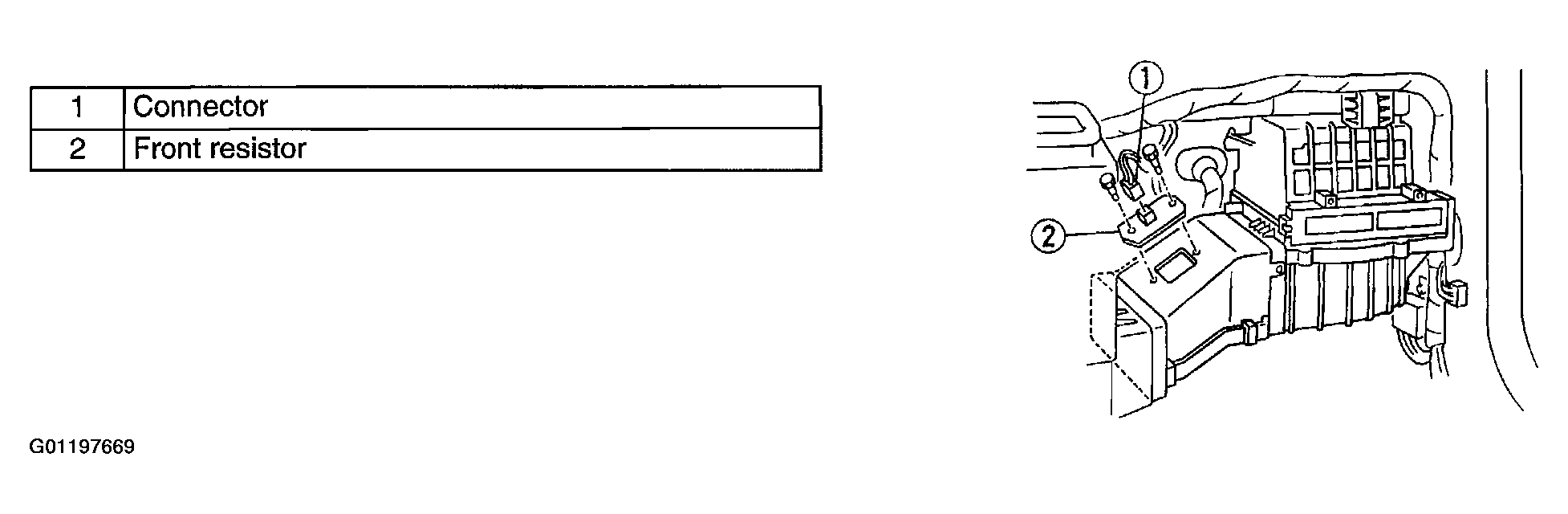

    Fig 1: Removing/Installing Front Resistor
    G01197669Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
