Glove Compartment Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Bend the stoppers inward, then remove.

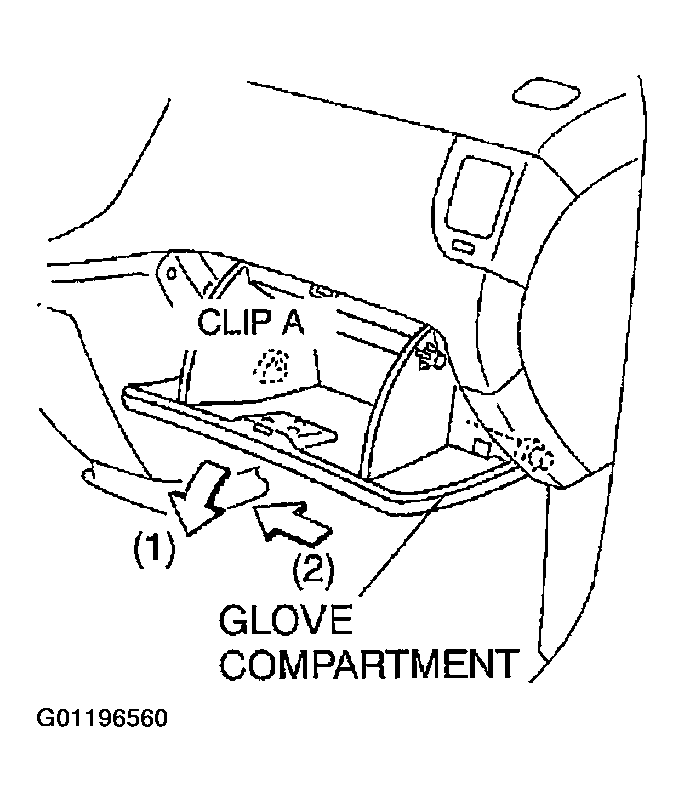

Fig 1: Removing Glove Compartment
Courtesy of MAZDA MOTORS CORP.
Pull the glove compartment toward you while pushing it downward (1), then remove clip A.
Slide the glove compartment toward driver's side door (2).
Install in the reverse order of removal.

Fig 2: Installing Glove Compartment

Courtesy of MAZDA MOTORS CORP.
