Vacuum Schematic

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

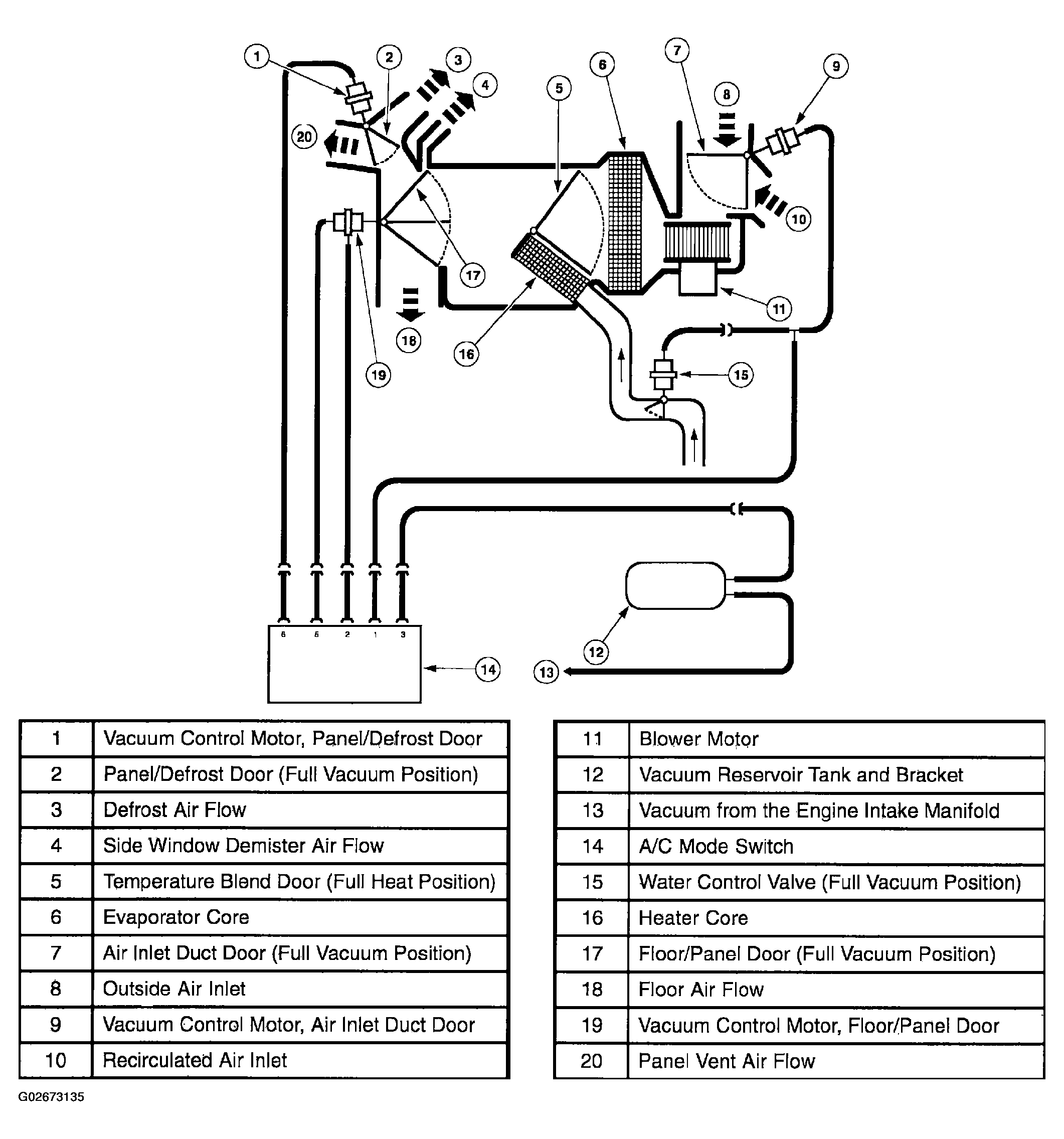

Fig 1: Manual Climate Control System Vacuum Schematic

Courtesy of MAZDA MOTORS CORP.

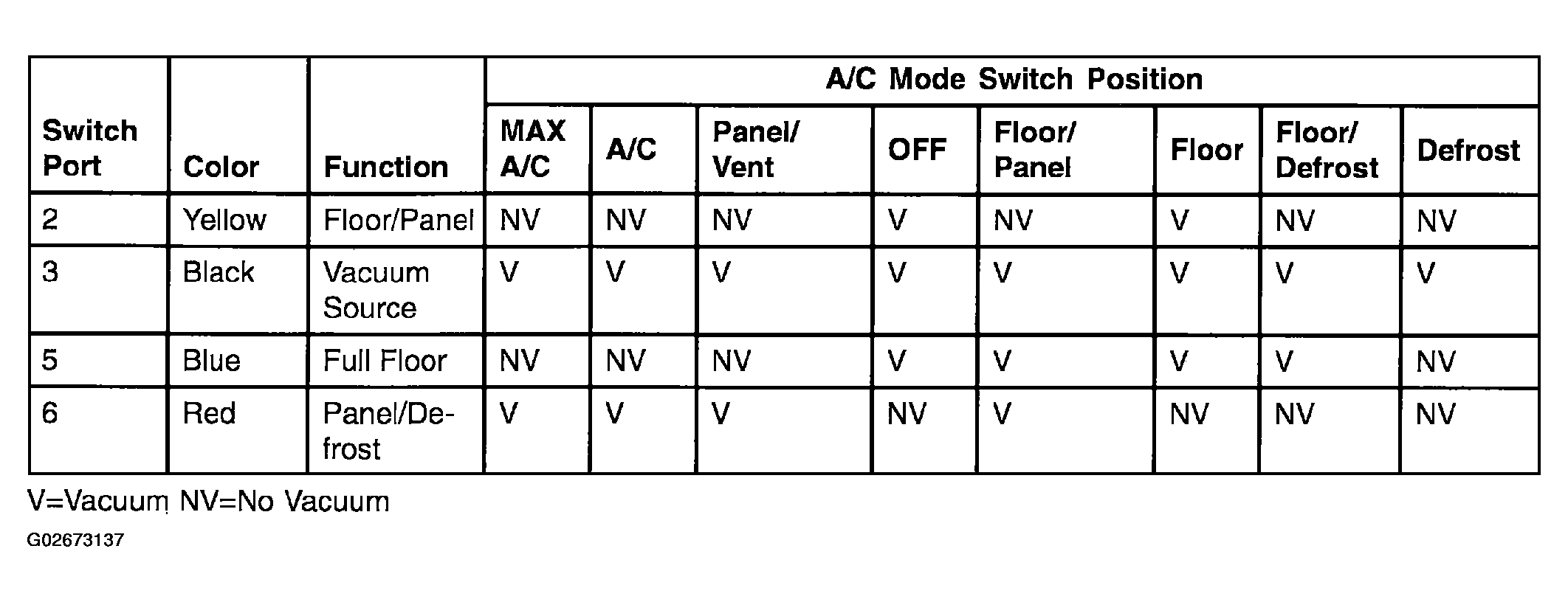

Fig 2: A/C Mode Switch Vacuum Application Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

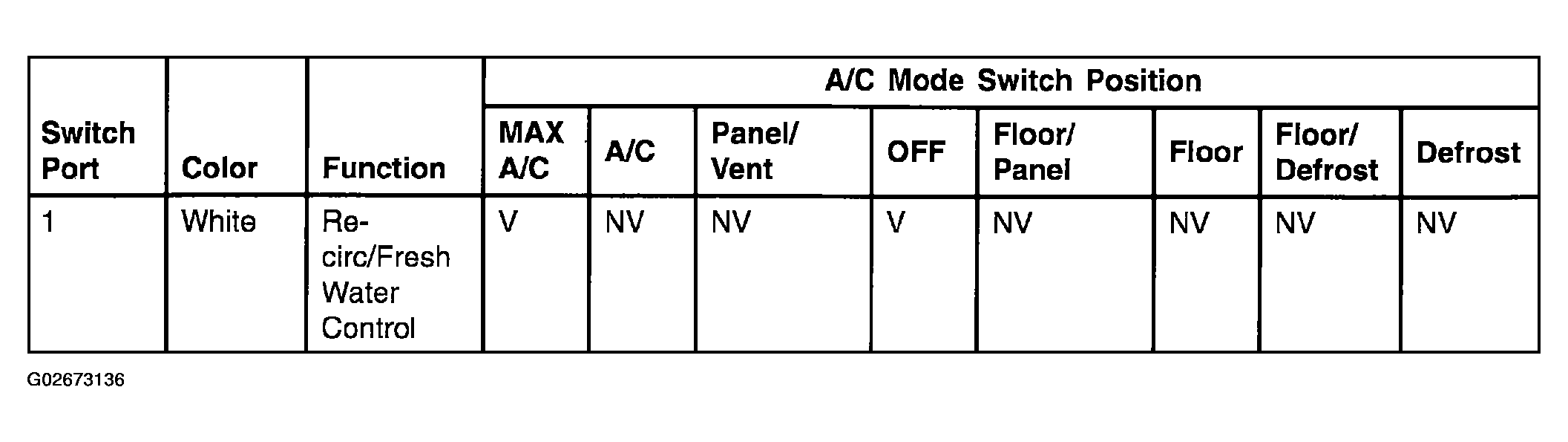

Fig 3: A/C Mode Switch Vacuum Application Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
