Troubleshooting Index

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

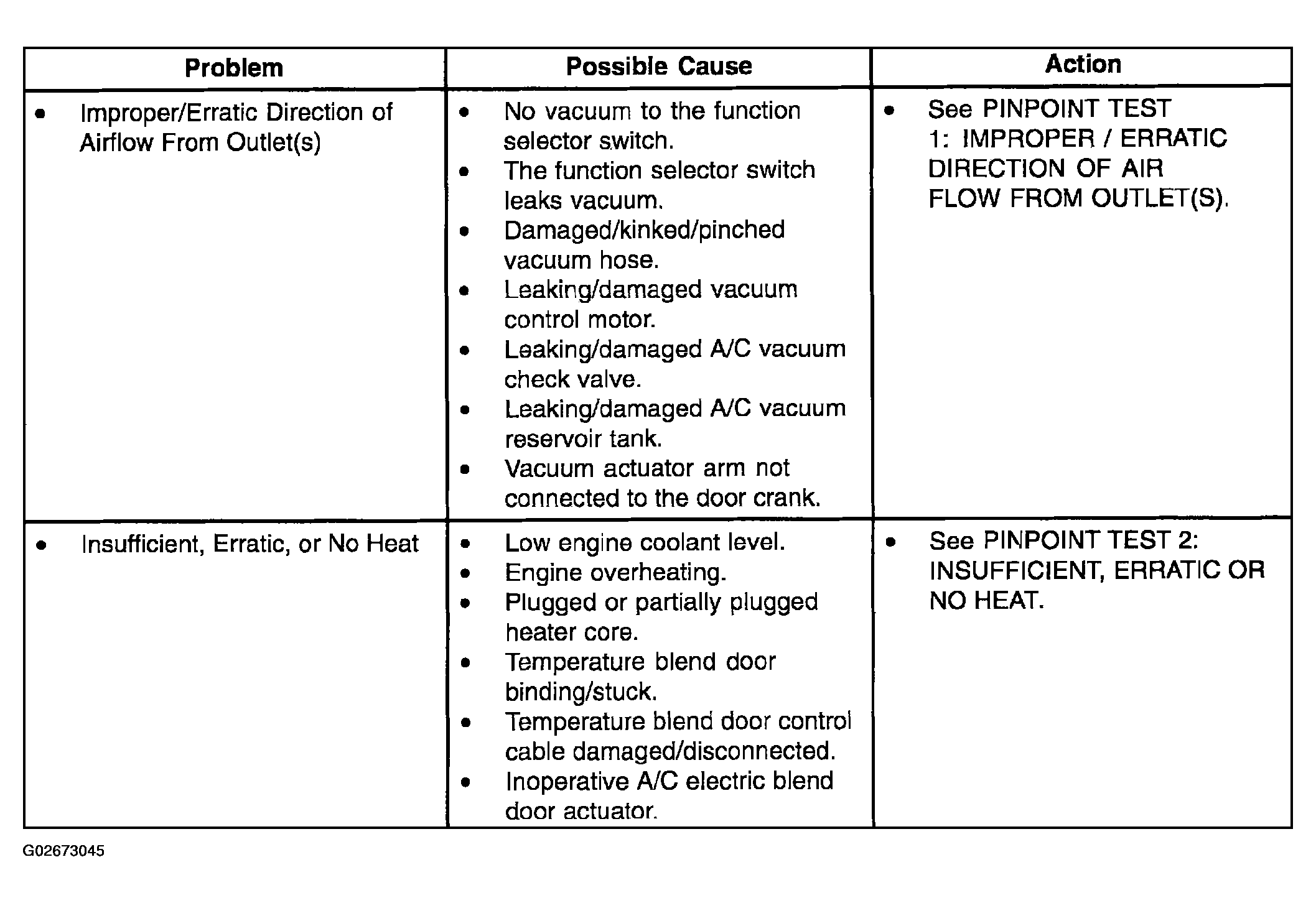

Fig 1: Troubleshooting Index (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Troubleshooting Index (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

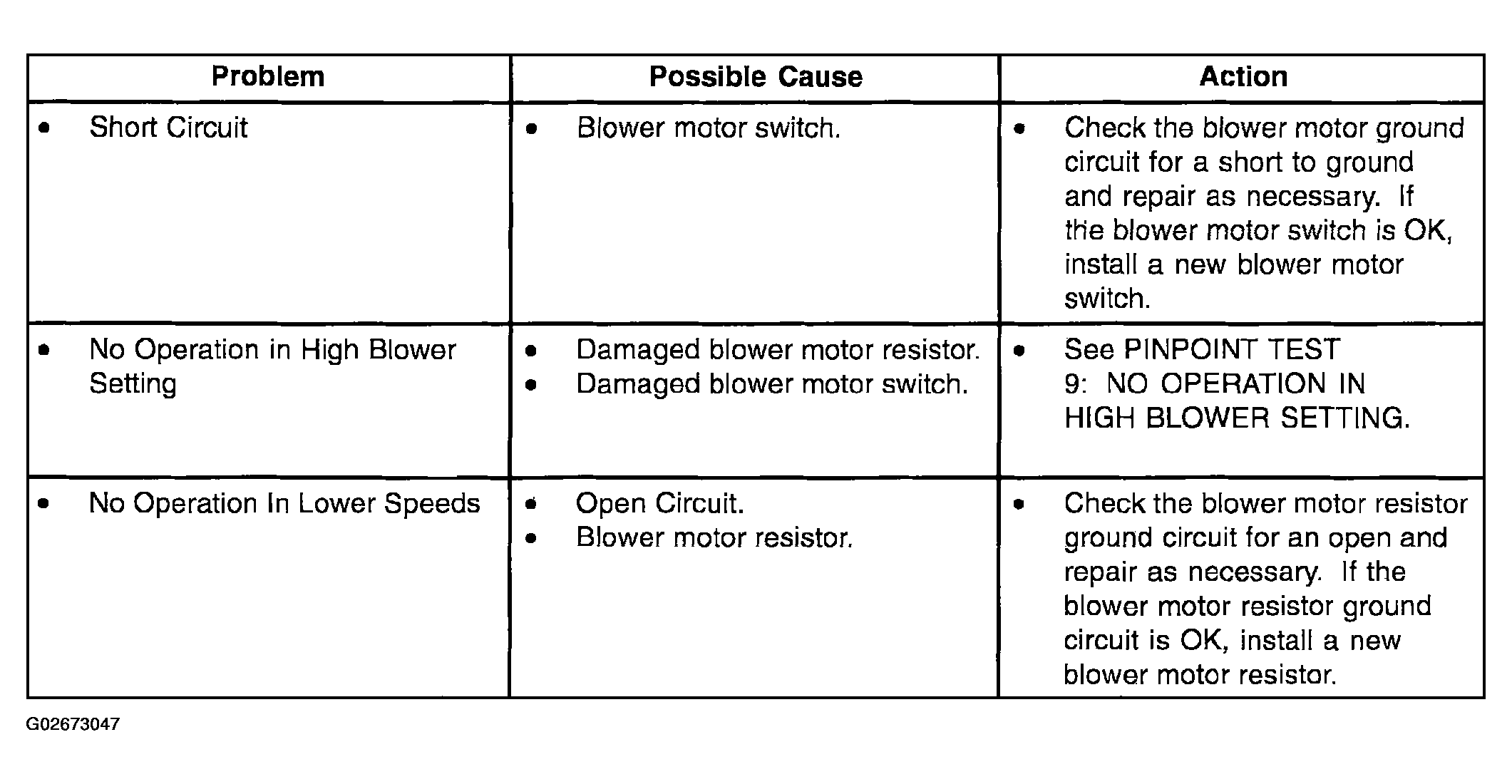

Fig 3: Troubleshooting Index (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
