Pinpoint Test 9: No Operation In High Blower Setting
WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

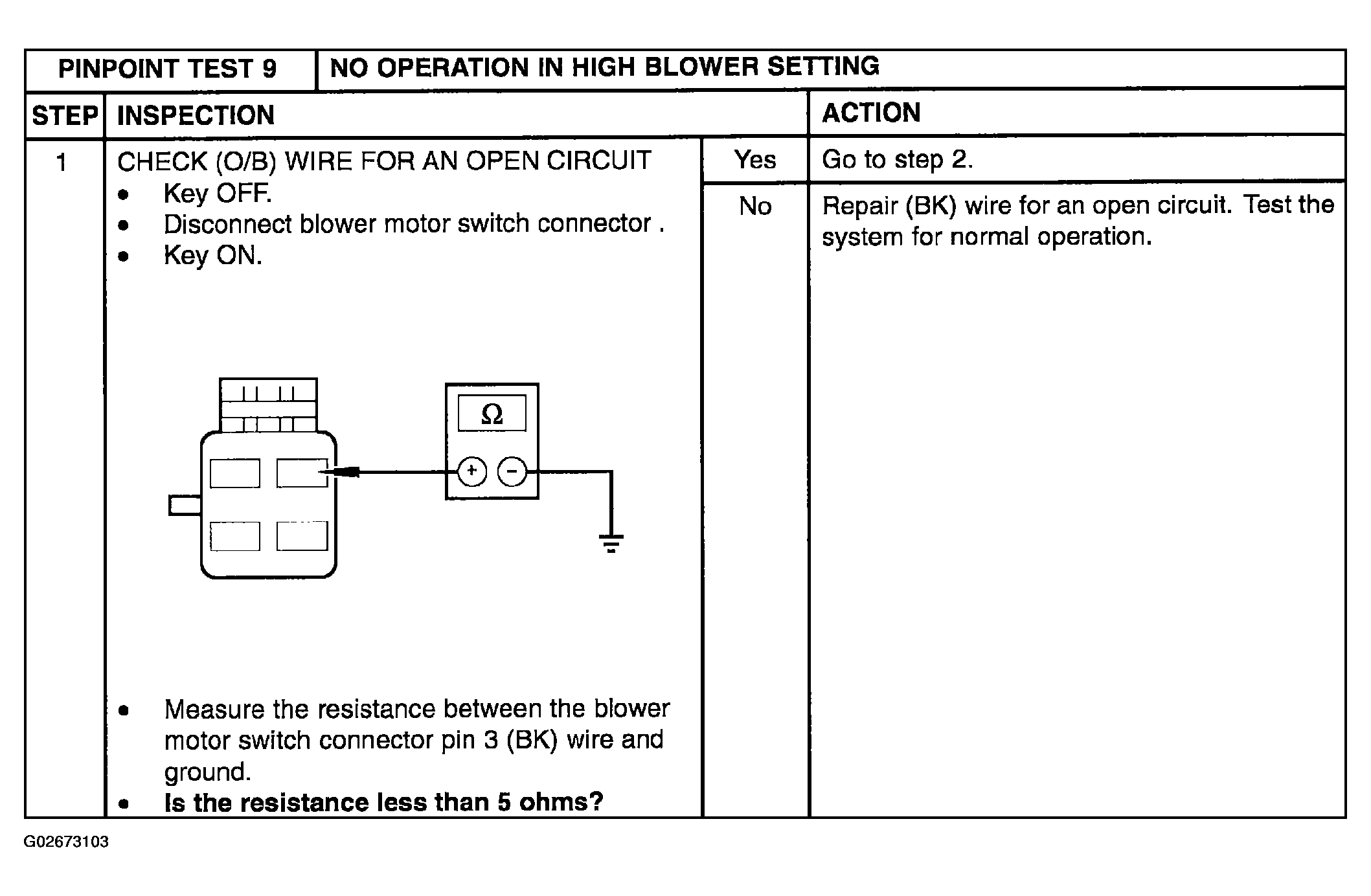

Fig 1: Pinpoint Test 9: No Operation In High Blower Setting (Step 1)
Courtesy of MAZDA MOTORS CORP.

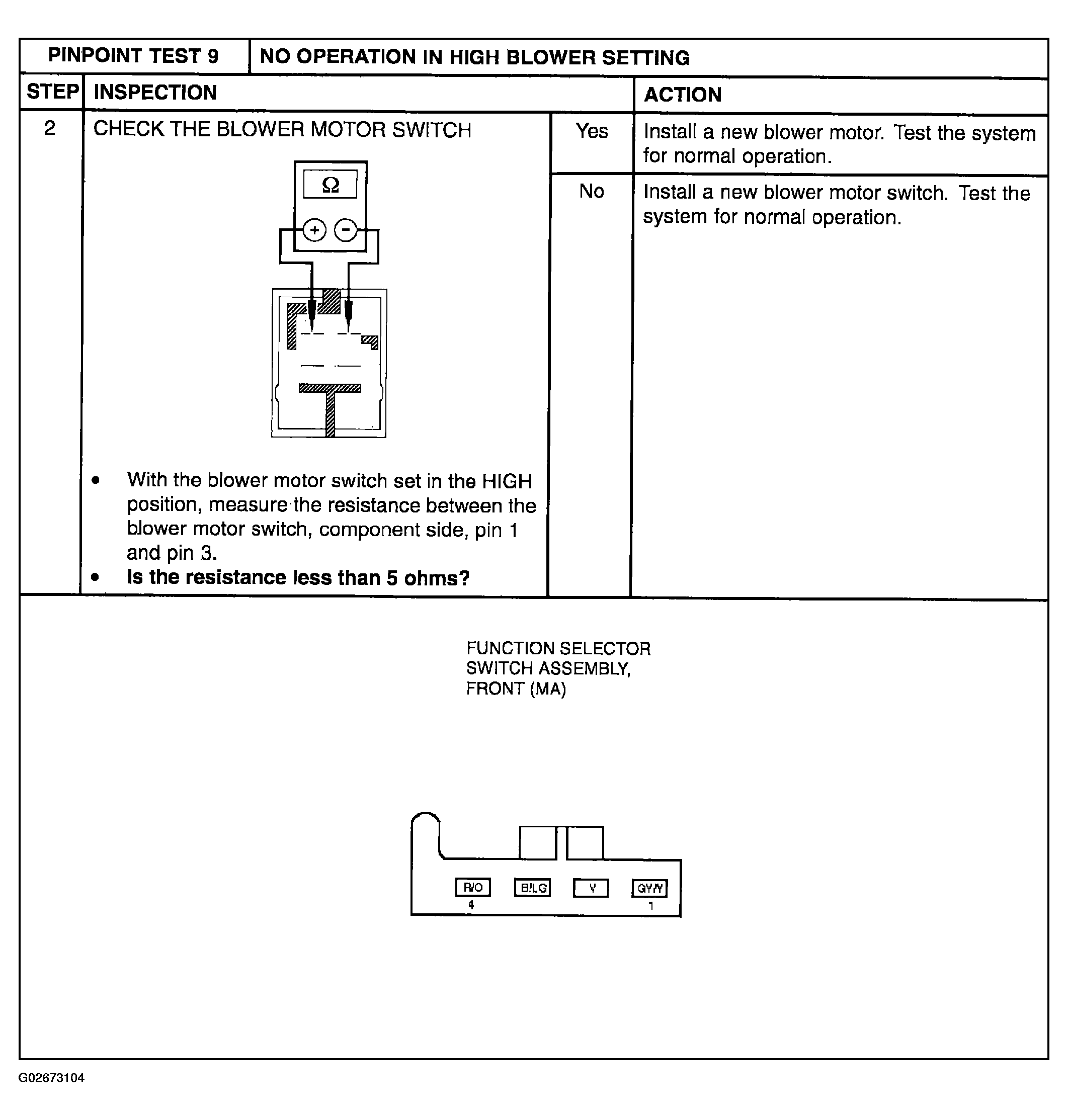

Fig 2: Pinpoint Test 9: No Operation In High Blower Setting (Step 2 & Front Function Selector Switch Assembly Connector G-234)
