Pinpoint Test 7: The Blower Motor Does Not Operate
WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

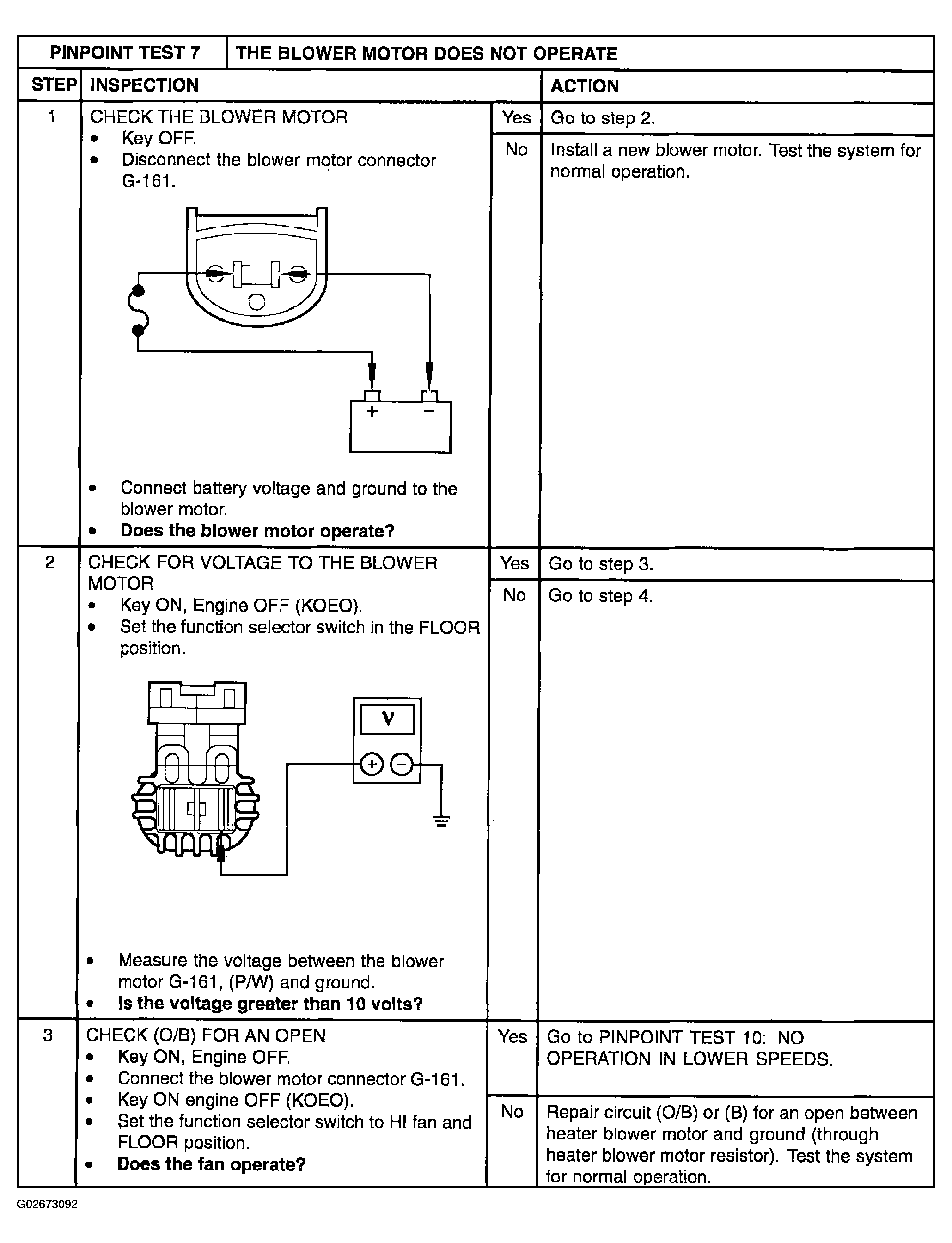

Fig 1: Pinpoint Test 7: The Blower Motor Does Not Operate (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

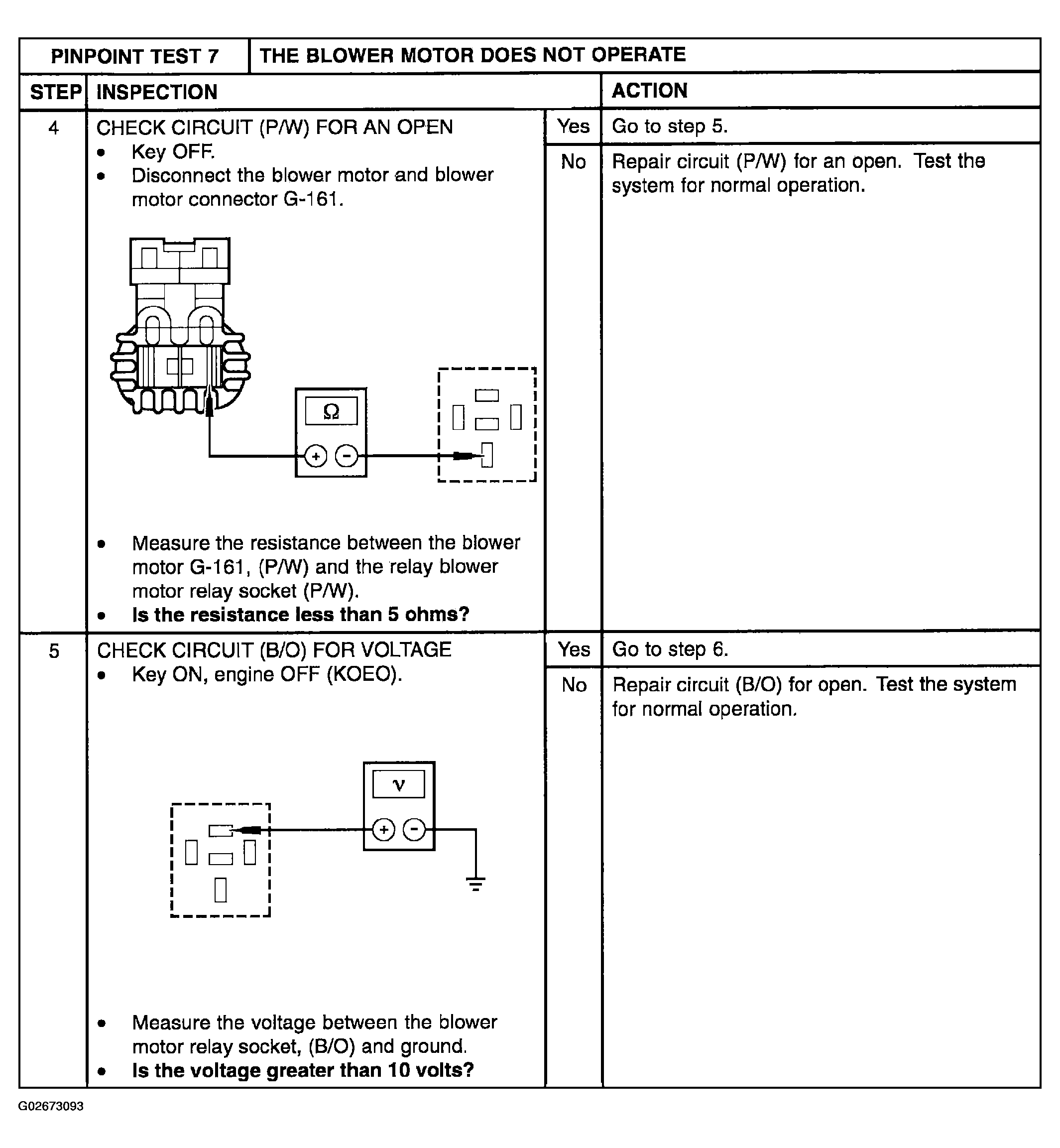

Fig 2: Pinpoint Test 7: The Blower Motor Does Not Operate (Steps 4-5)
Courtesy of MAZDA MOTORS CORP.

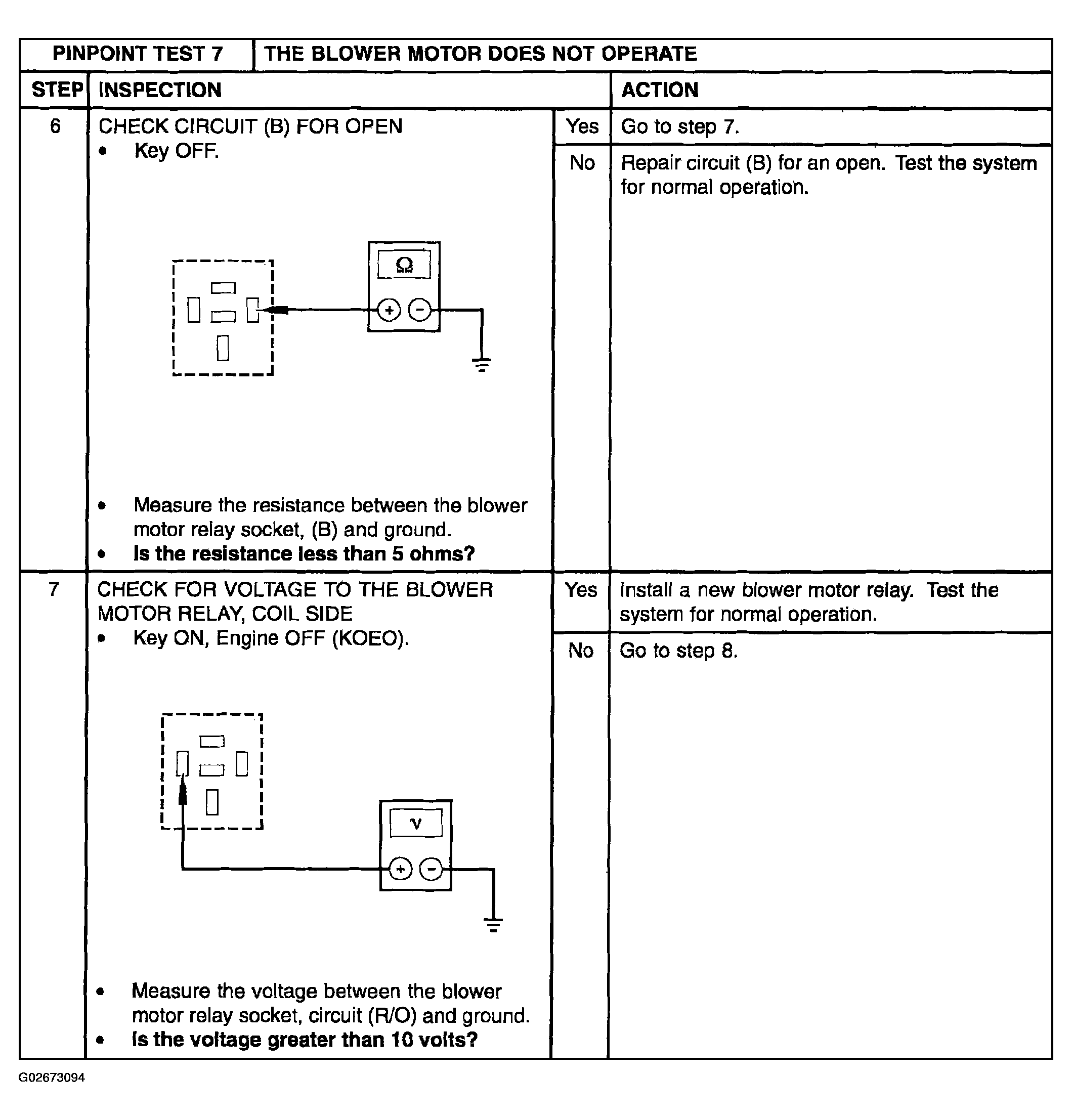

Fig 3: Pinpoint Test 7: The Blower Motor Does Not Operate (Steps 6-7)
Courtesy of MAZDA MOTORS CORP.

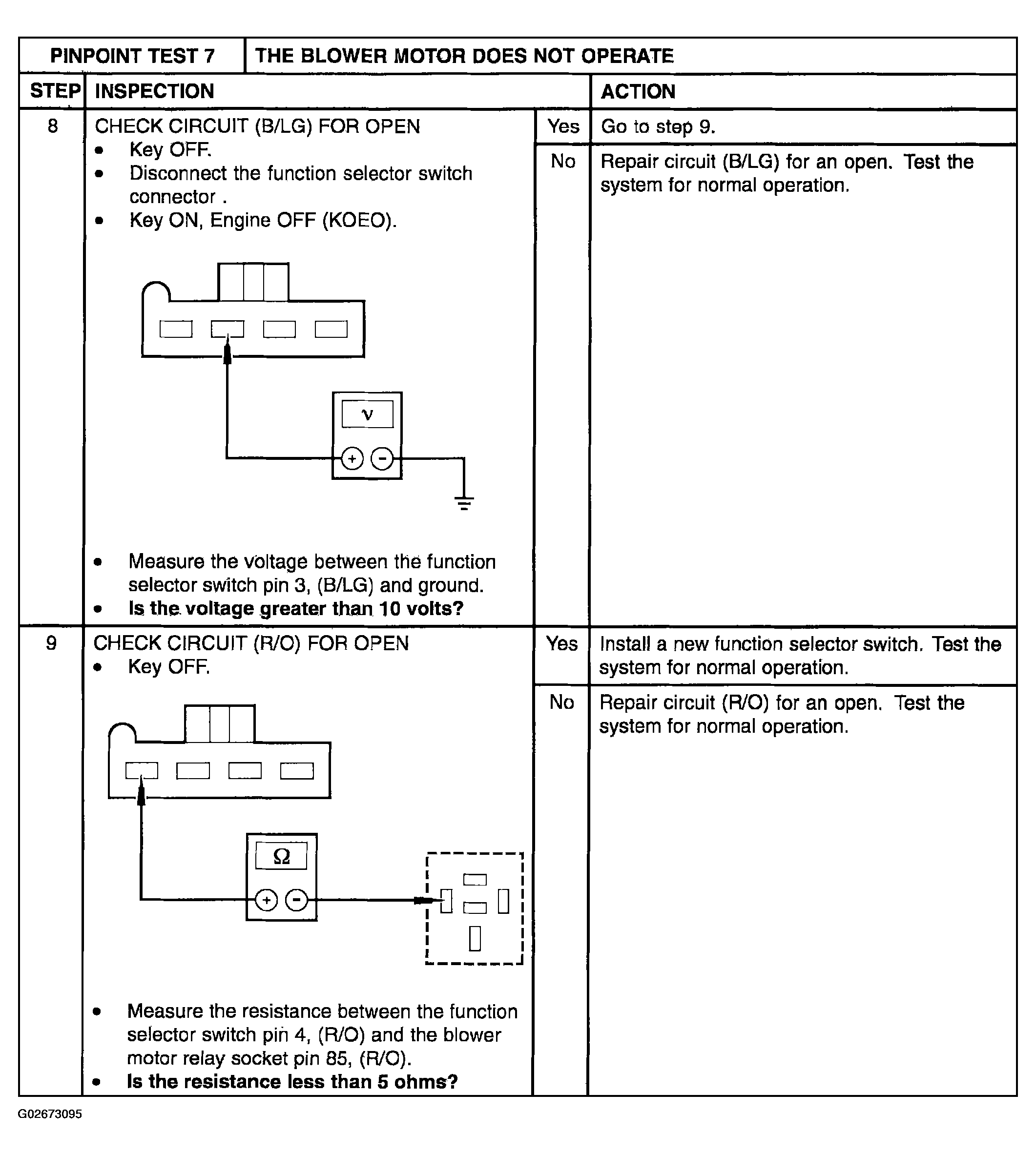

Fig 4: Pinpoint Test 7: The Blower Motor Does Not Operate (Steps 8-9)
Courtesy of MAZDA MOTORS CORP.

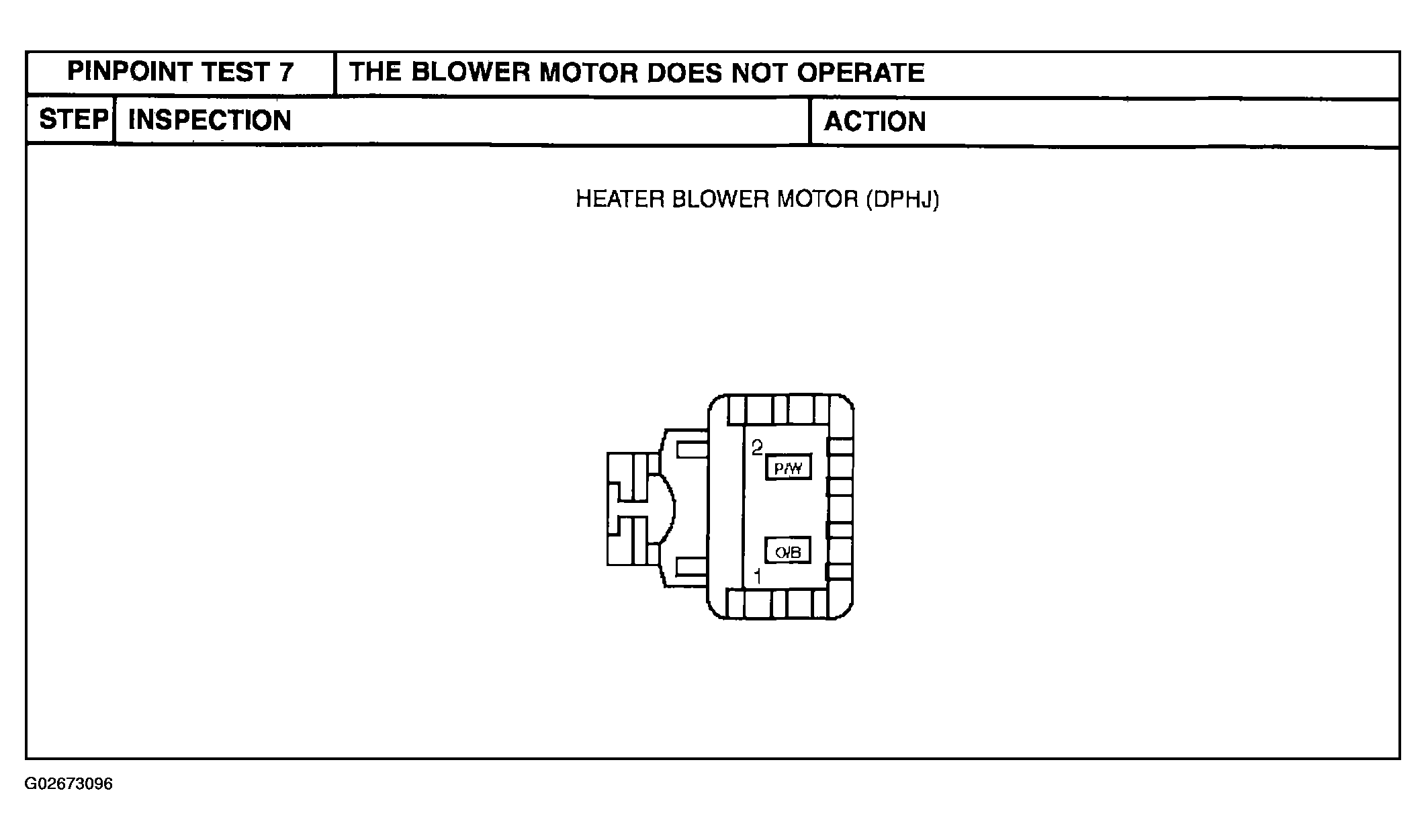

Fig 5: Pinpoint Test 7: The Blower Motor Does Not Operate (Heater Blower Motor Connector G-161 Terminal Identification)
Courtesy of MAZDA MOTORS CORP.

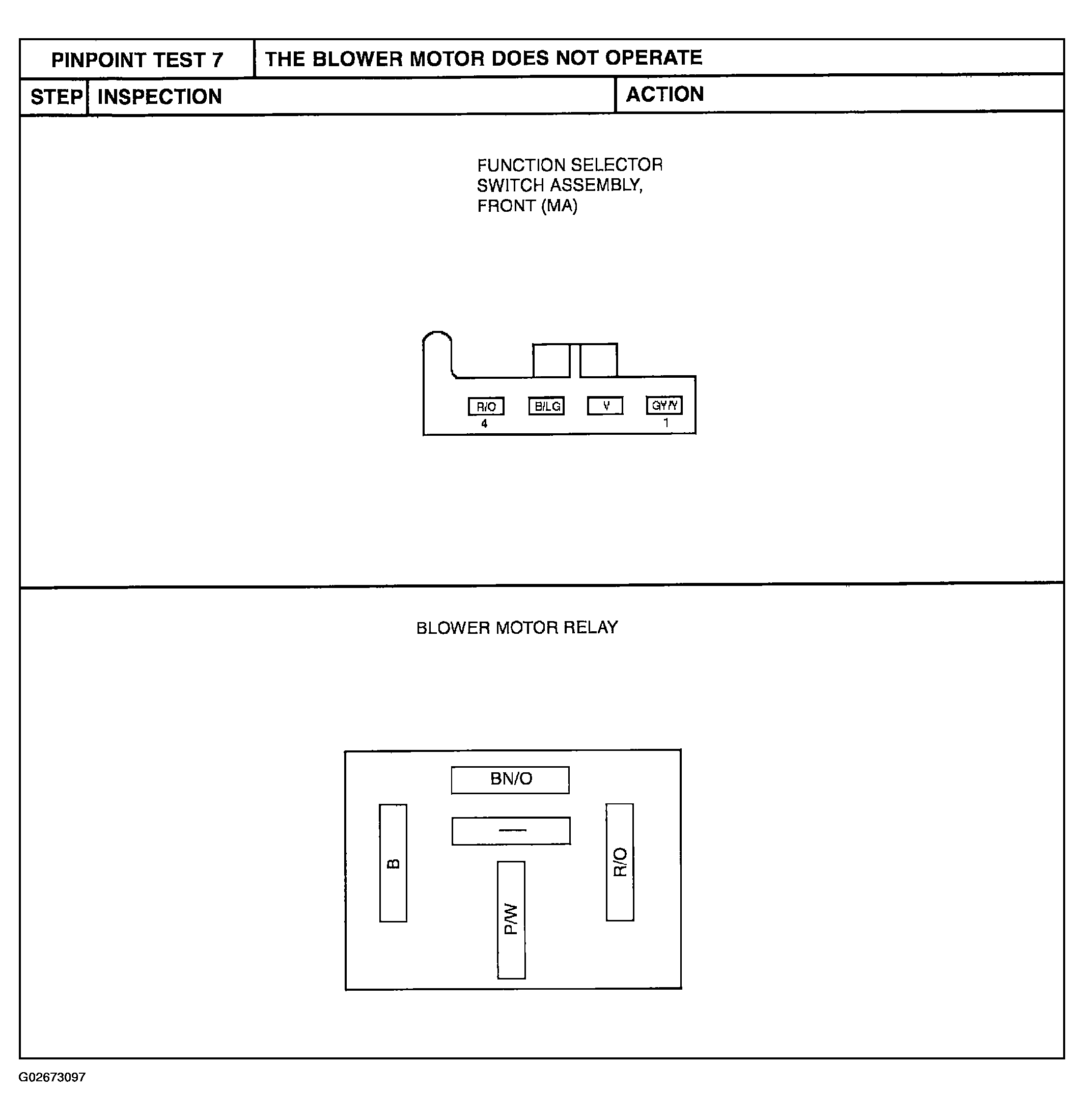

Fig 6: Pinpoint Test 7: The Blower Motor Does Not Operate (Front Function Selector Switch Assembly Connector G-234 & Blower Motor Relay Terminal Identification)
