Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

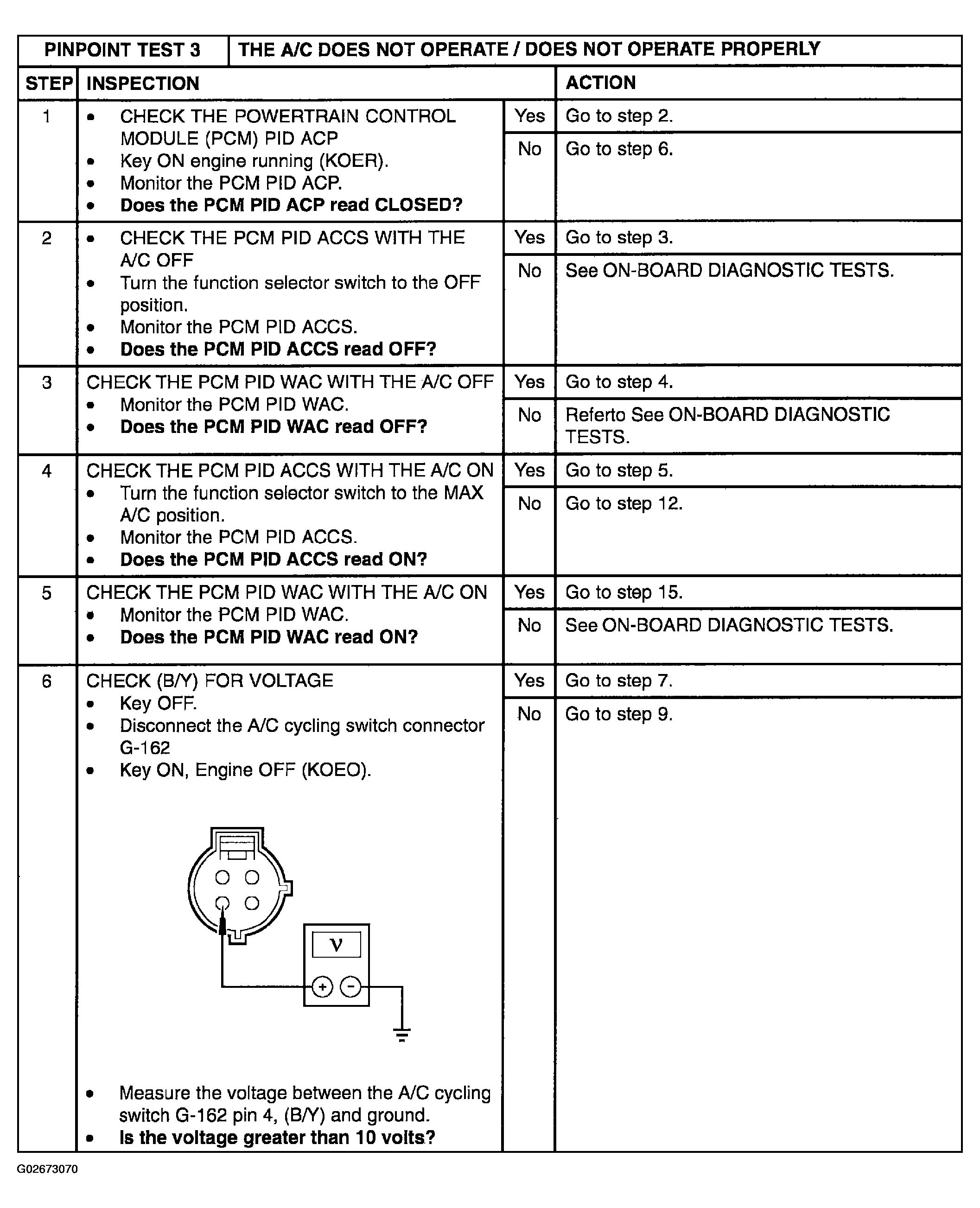

Fig 1: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Steps 1-6)

Courtesy of MAZDA MOTORS CORP.

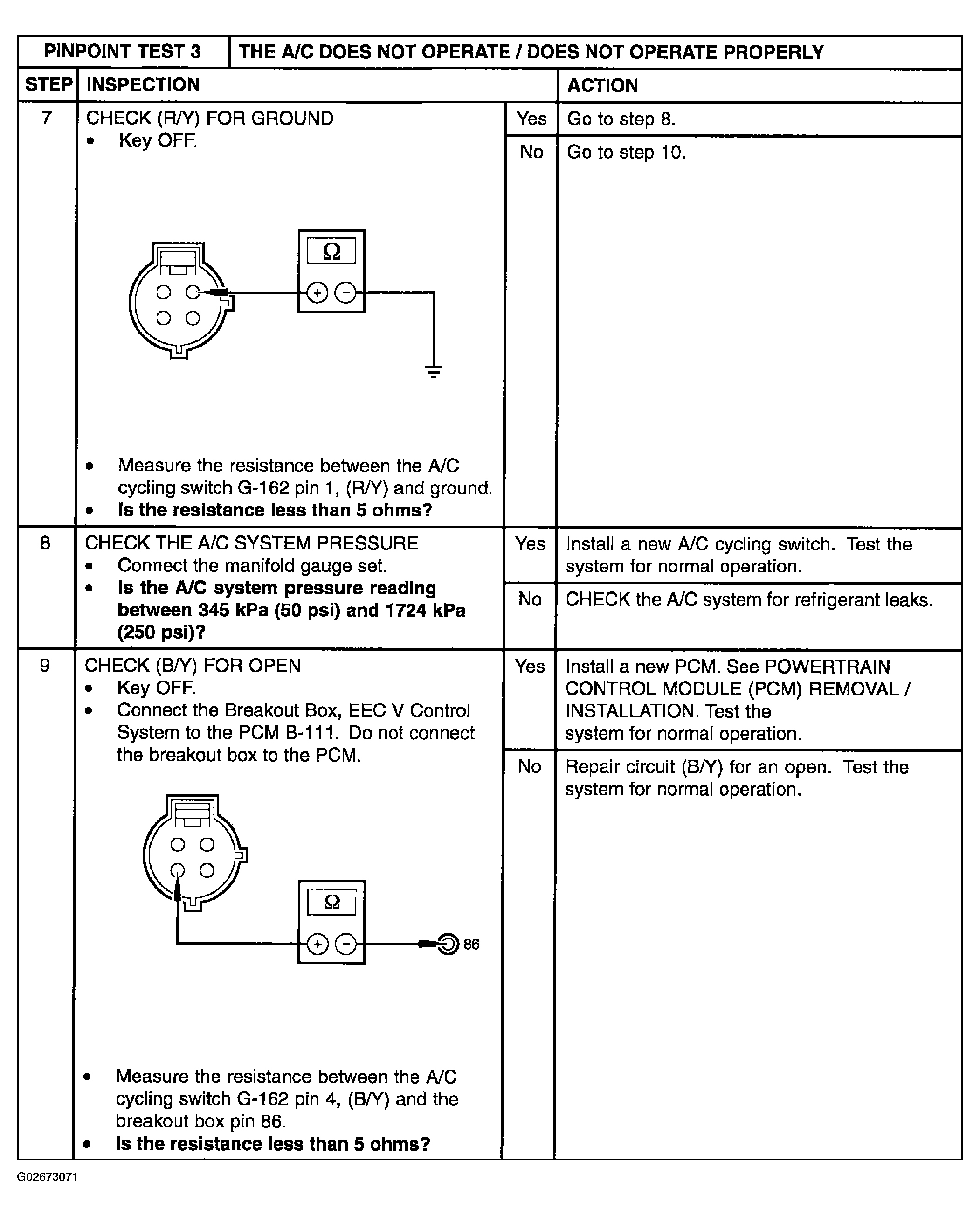

Fig 2: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Steps 7-9)

Courtesy of MAZDA MOTORS CORP.

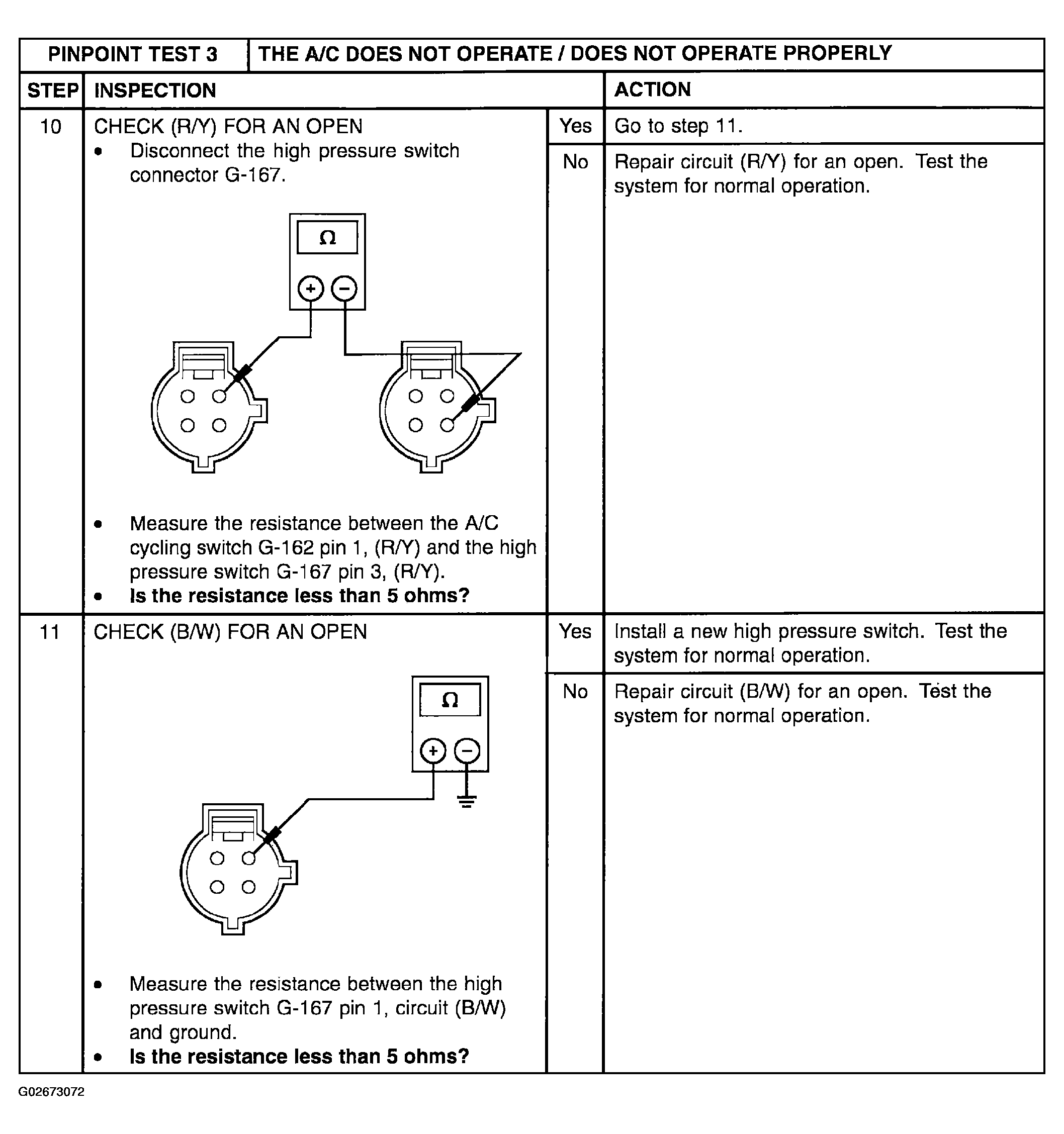

Fig 3: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Steps 10-11)

Courtesy of MAZDA MOTORS CORP.

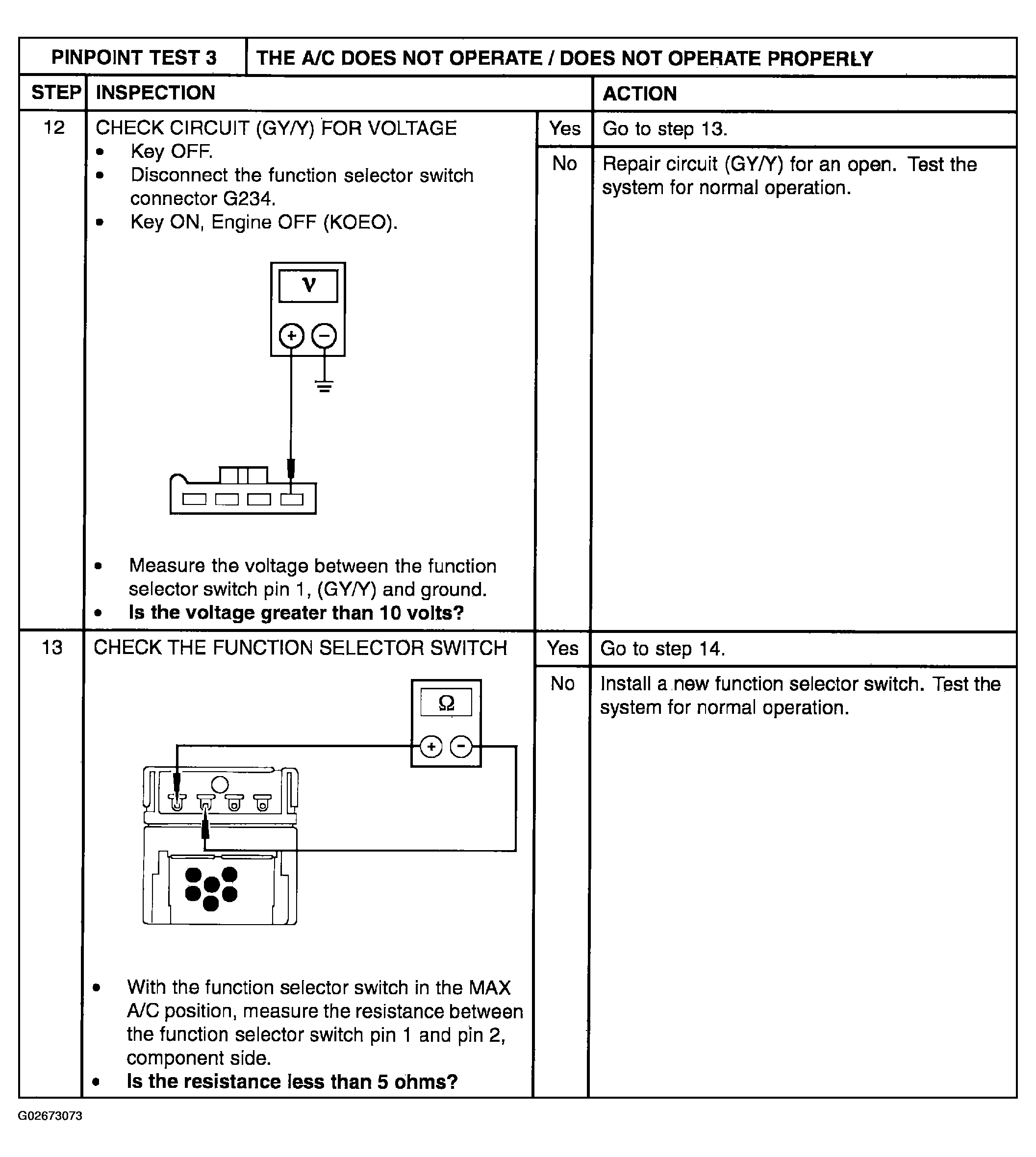

Fig 4: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Steps 12-13)

Courtesy of MAZDA MOTORS CORP.

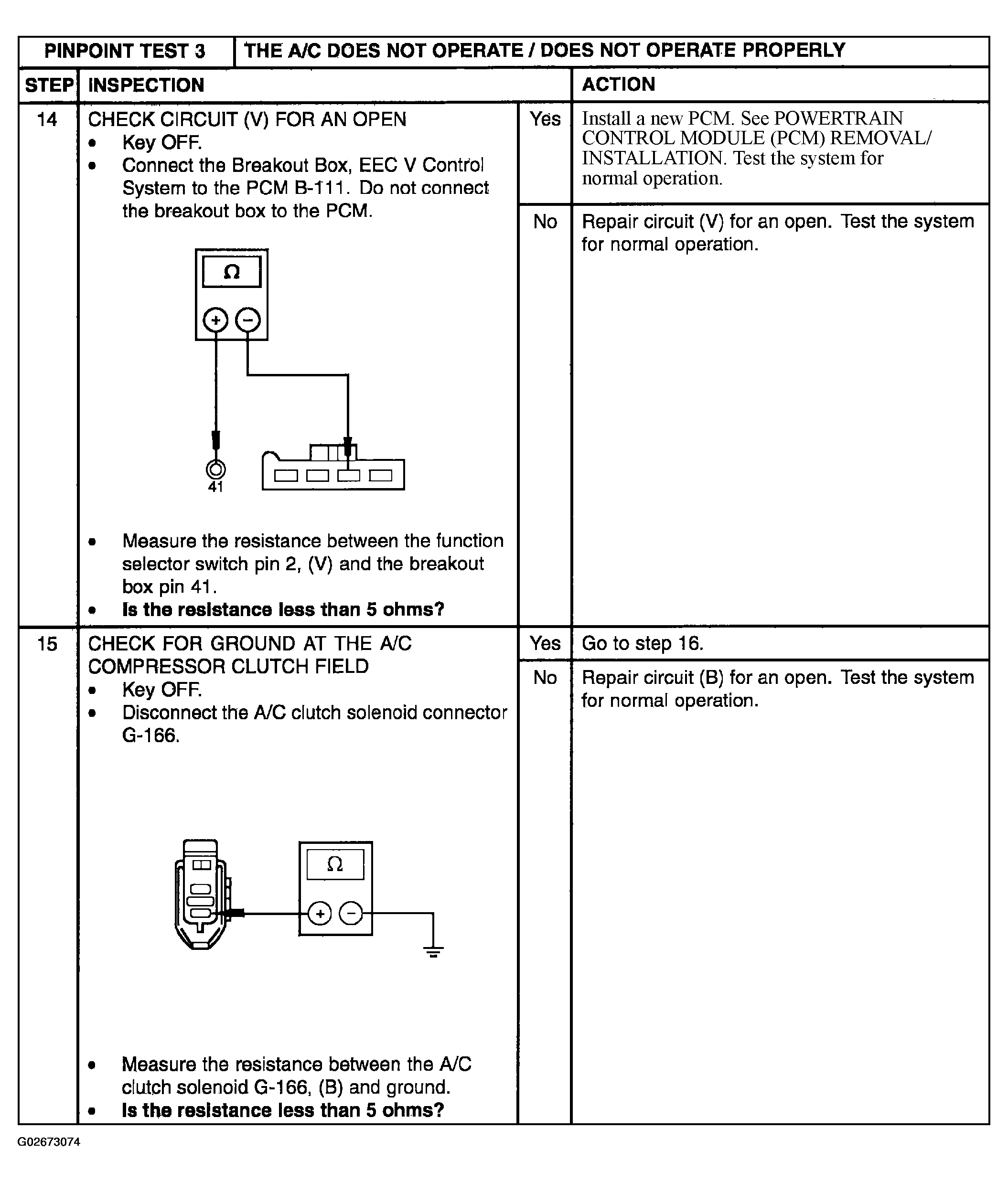

Fig 5: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Steps 14-15)

Courtesy of MAZDA MOTORS CORP.

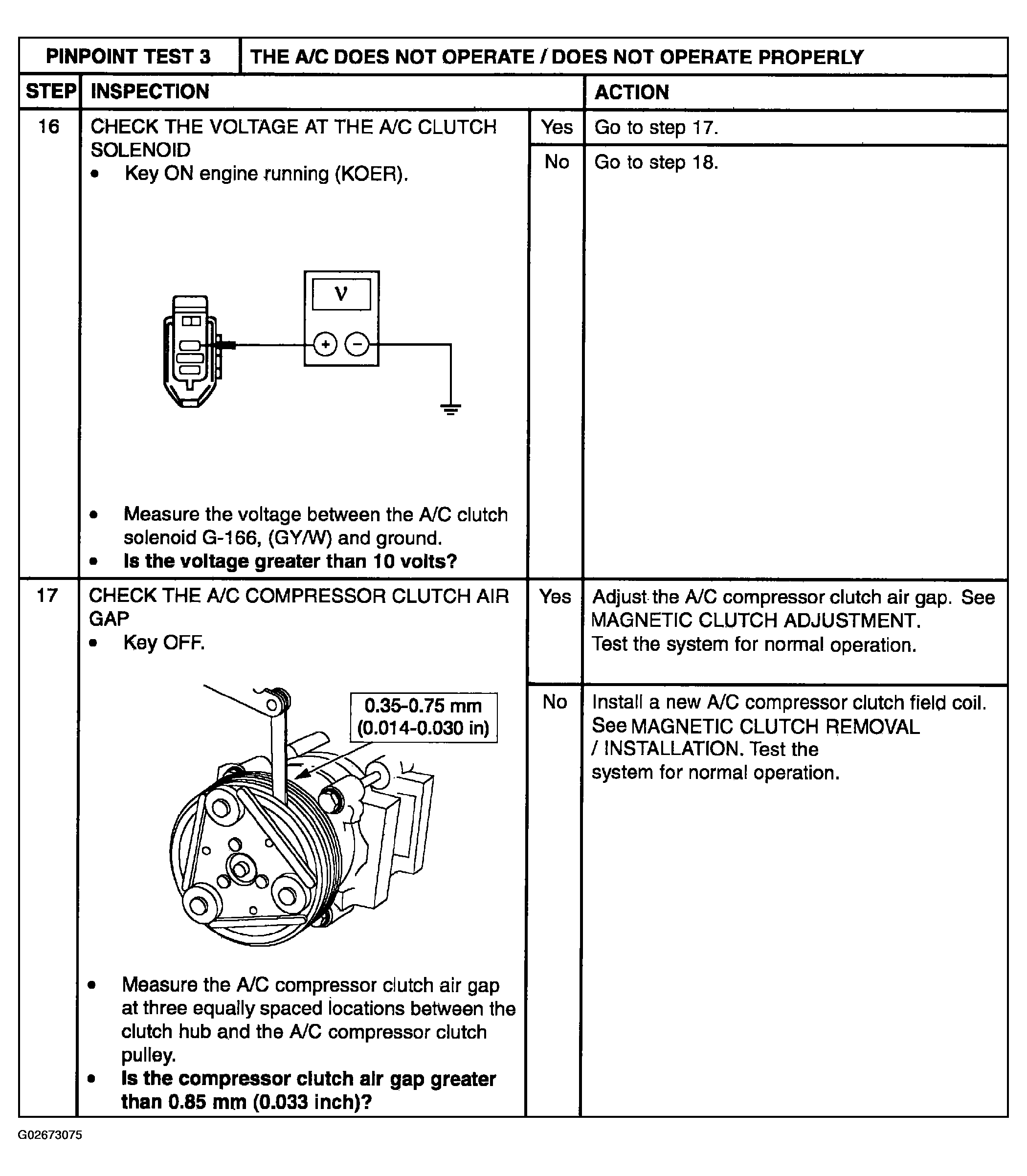

Fig 6: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Steps 16-17)

Courtesy of MAZDA MOTORS CORP.

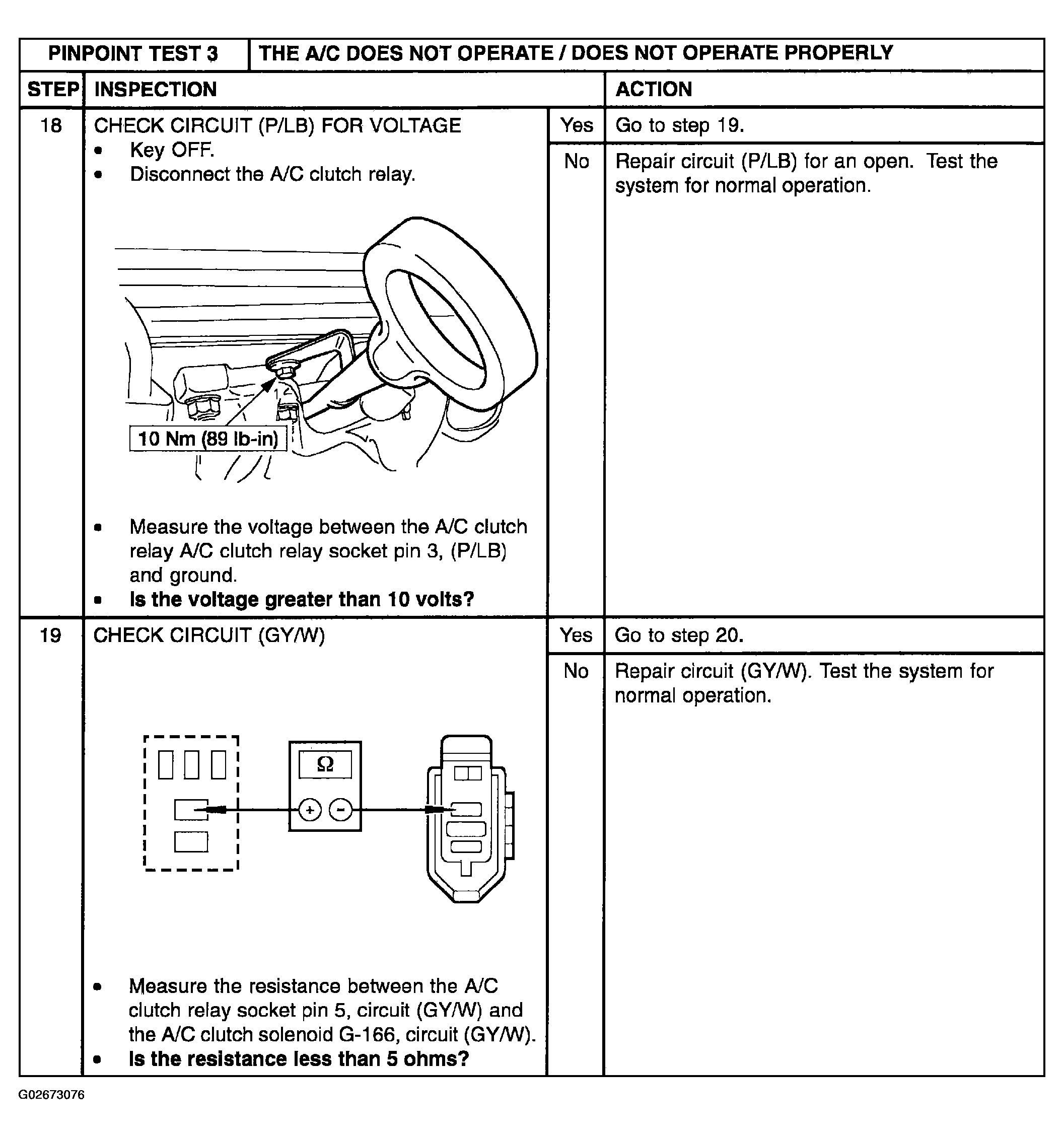

Fig 7: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Steps 18-19)

Courtesy of MAZDA MOTORS CORP.

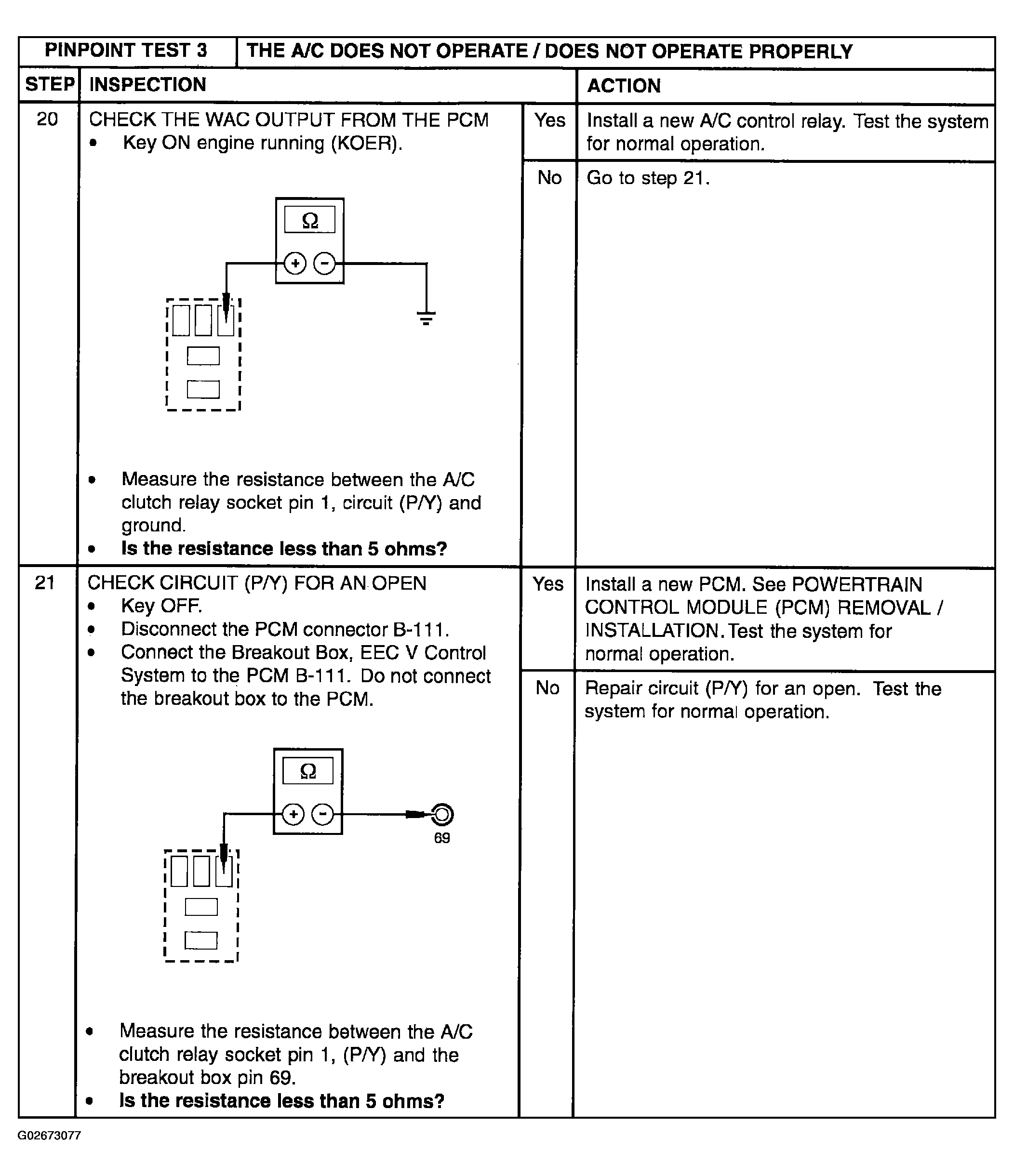

Fig 8: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Steps 20-21)

Courtesy of MAZDA MOTORS CORP.

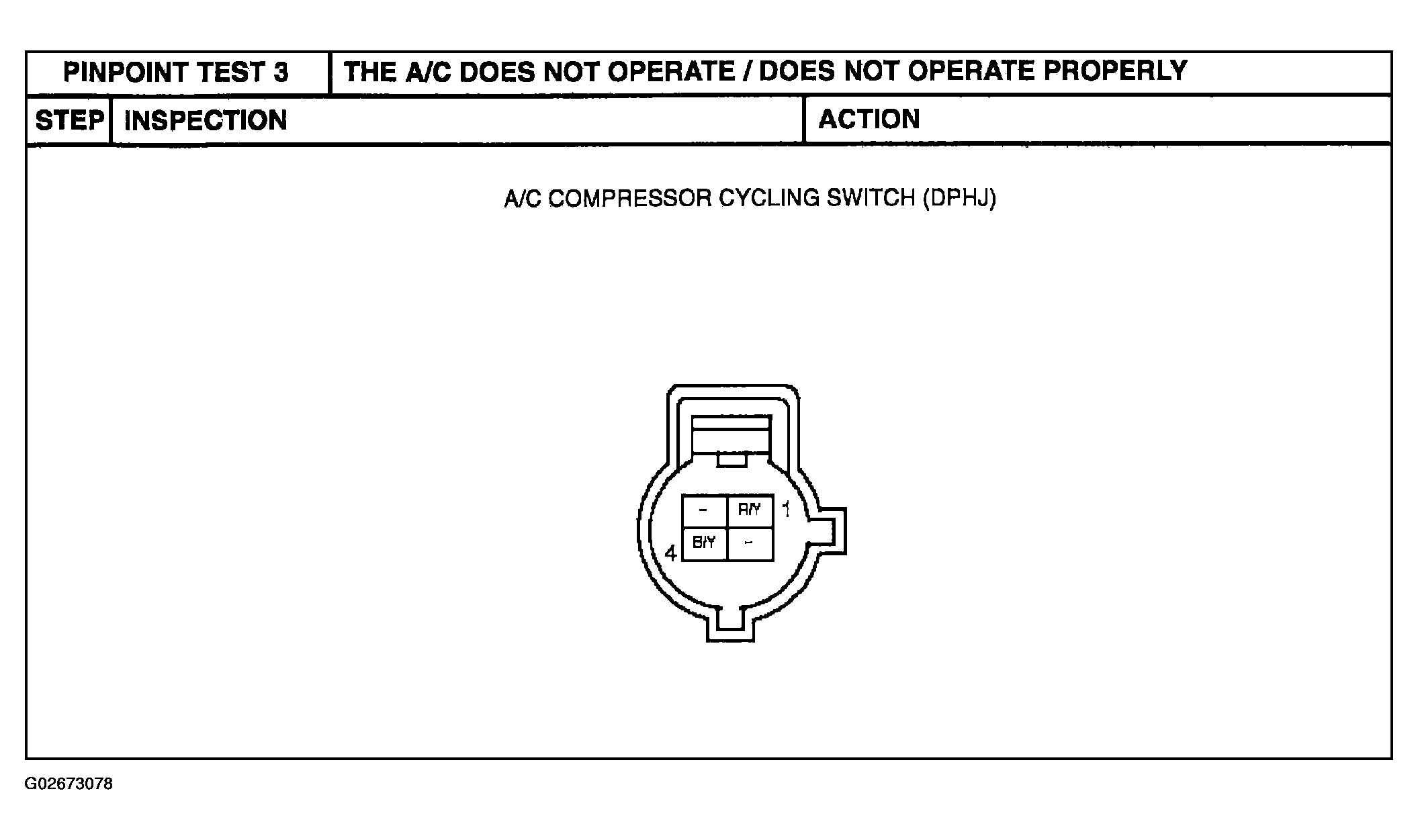

Fig 9: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (A/C Compressor Cycling Switch Connector G-162 Terminal Identification)

Courtesy of MAZDA MOTORS CORP.

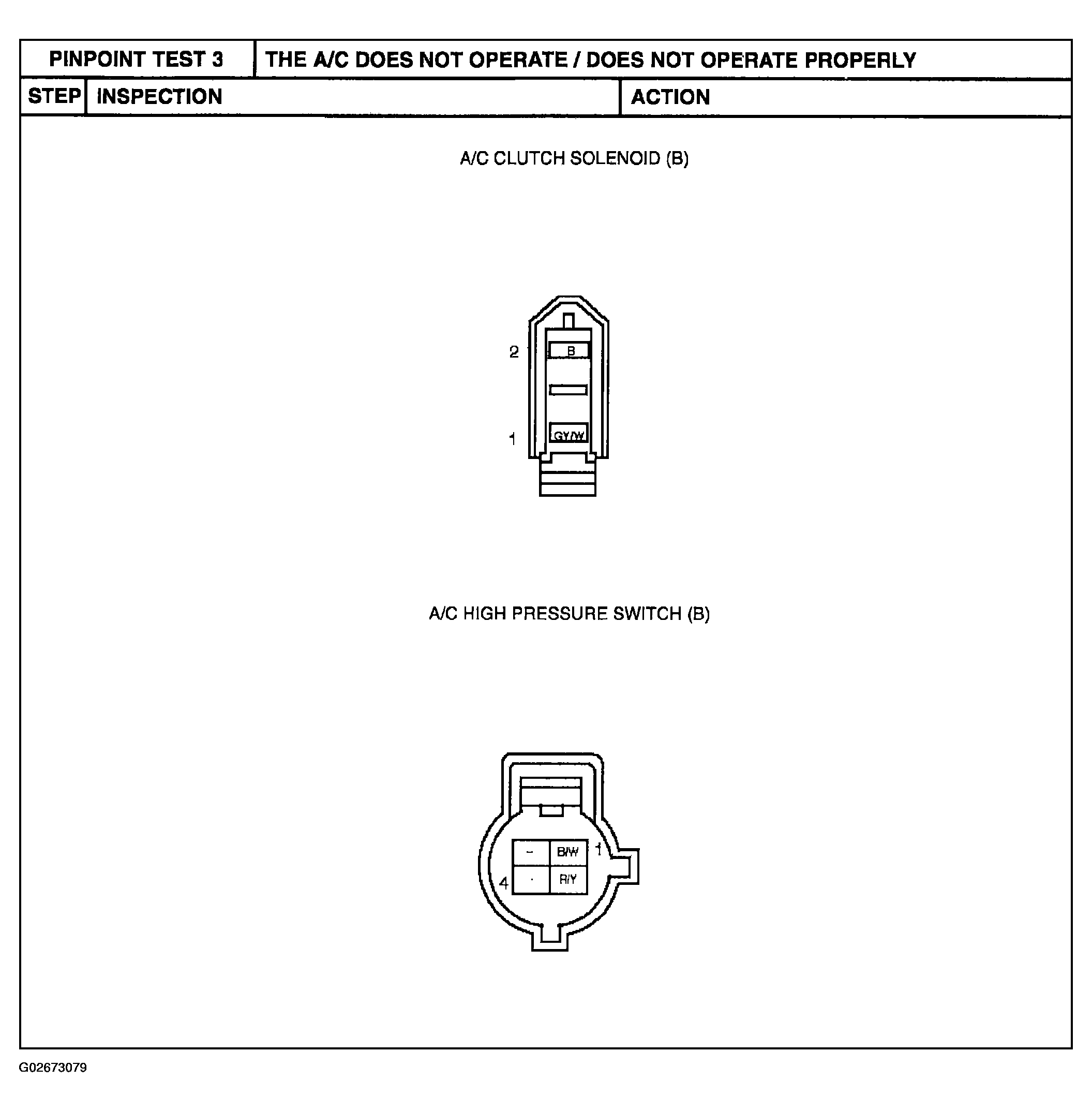

Fig 10: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (A/C Clutch Solenoid Connector G-166 & A/C High Pressure Switch Connector G-167 Terminal Identification)

Courtesy of MAZDA MOTORS CORP.

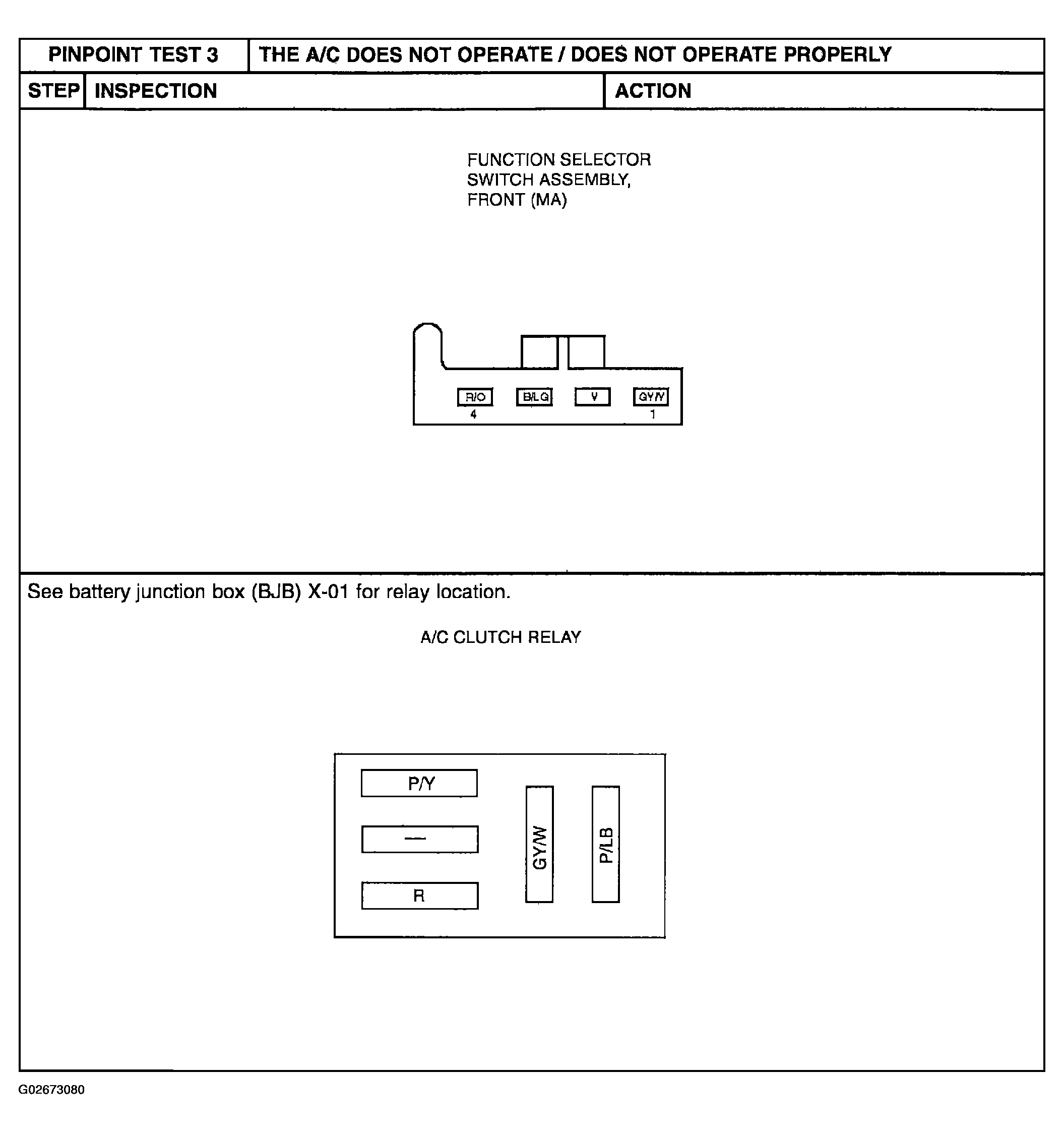

Fig 11: Pinpoint Test 3: The A/C Does Not Operate/Does Not Operate Properly (Front Function Selector Switch Assembly Connector G-234 & A/C Clutch Relay Terminal Identification)

Courtesy of MAZDA MOTORS CORP.
