Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(S)

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

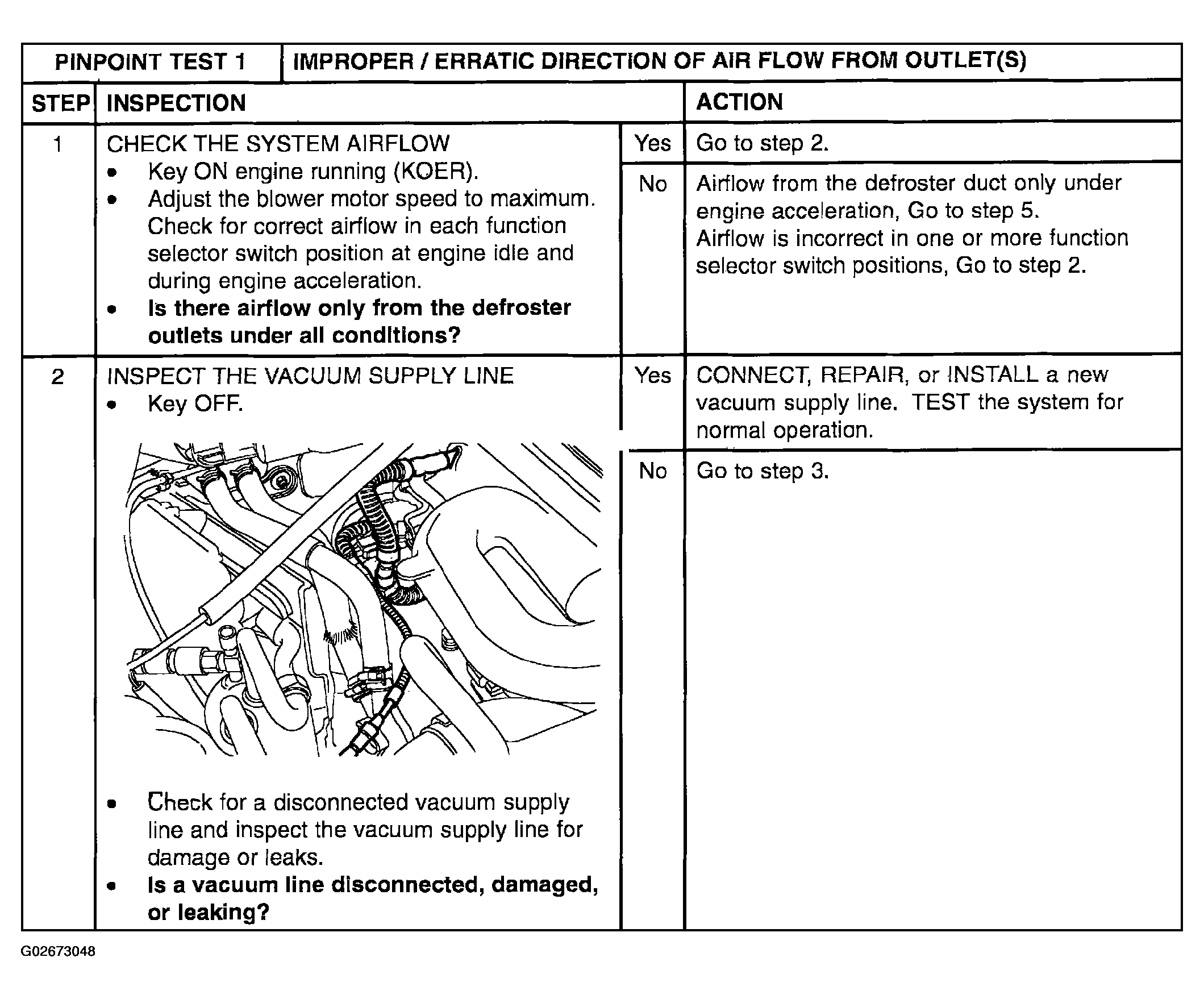

Fig 1: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

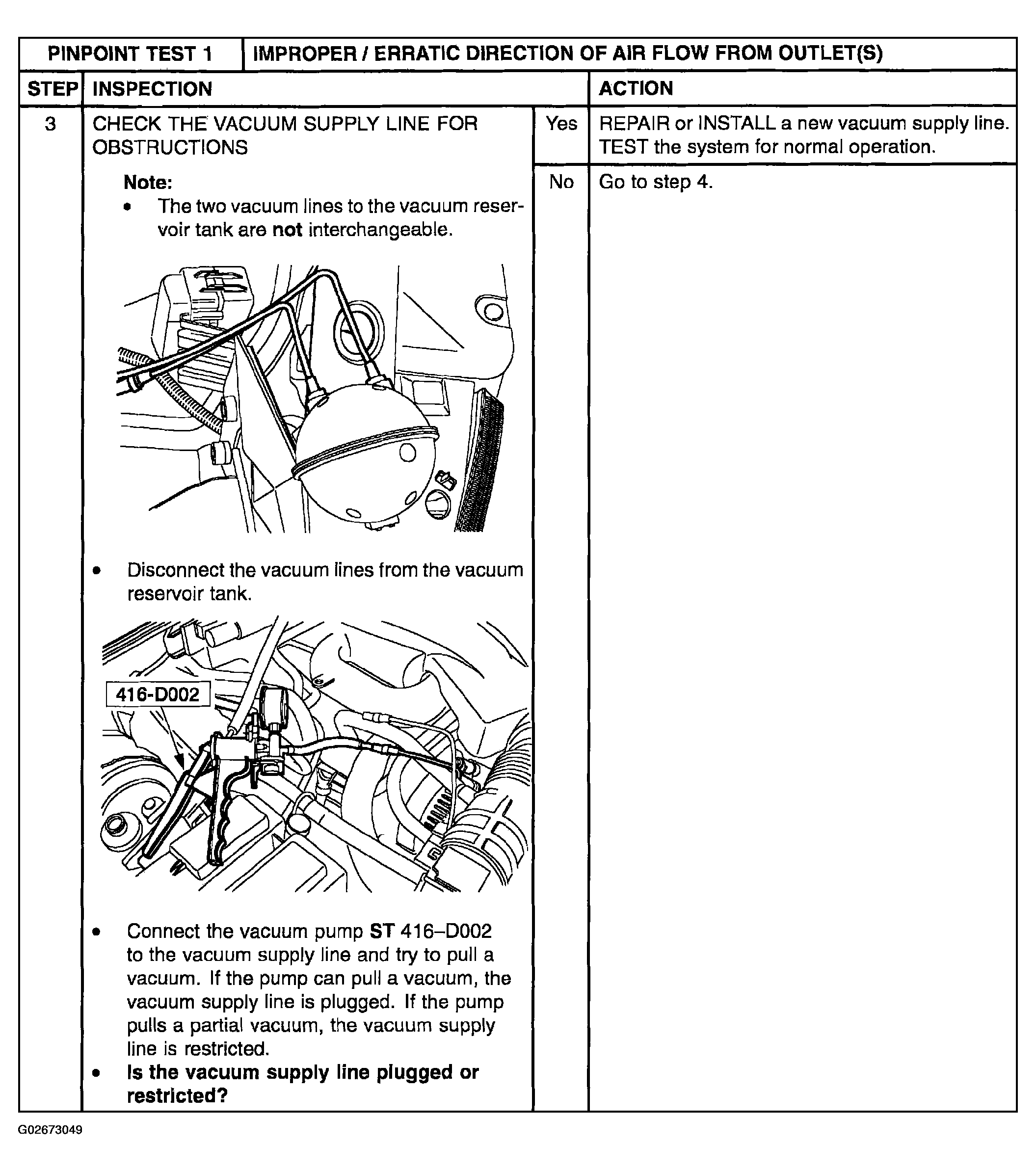

Fig 2: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Step 3)

Courtesy of MAZDA MOTORS CORP.

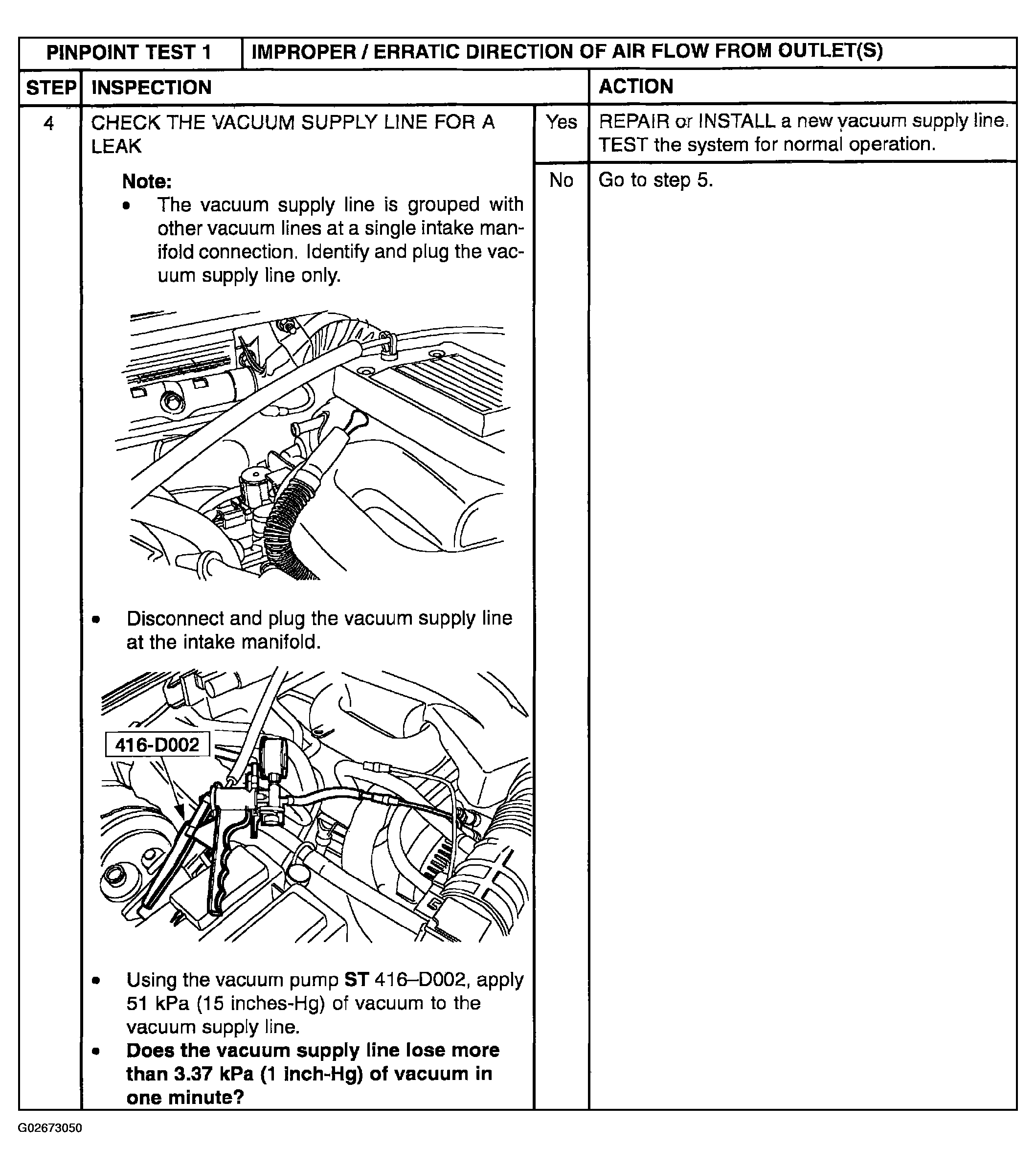

Fig 3: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Step 4)

Courtesy of MAZDA MOTORS CORP.

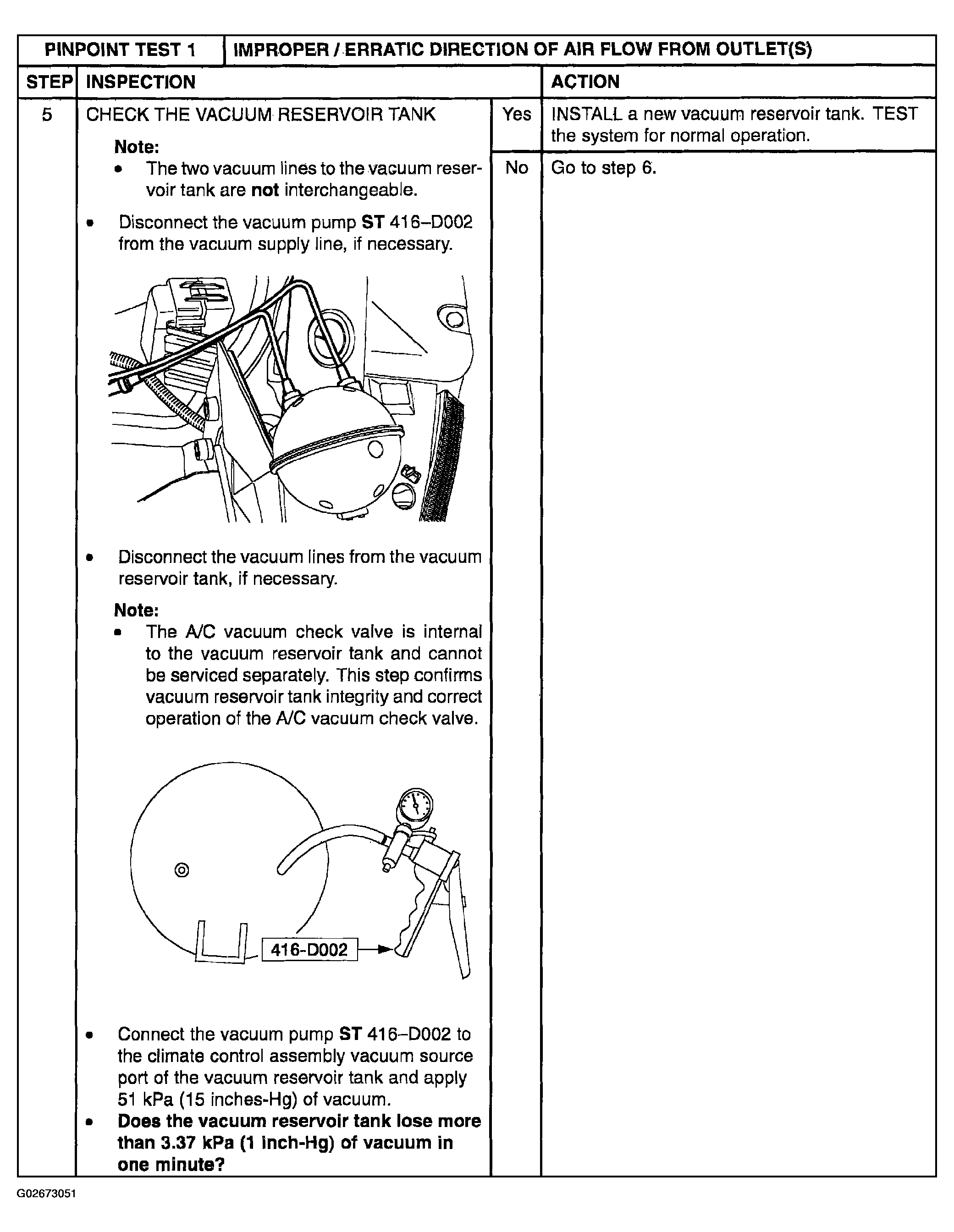

Fig 4: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Step 5)

Courtesy of MAZDA MOTORS CORP.

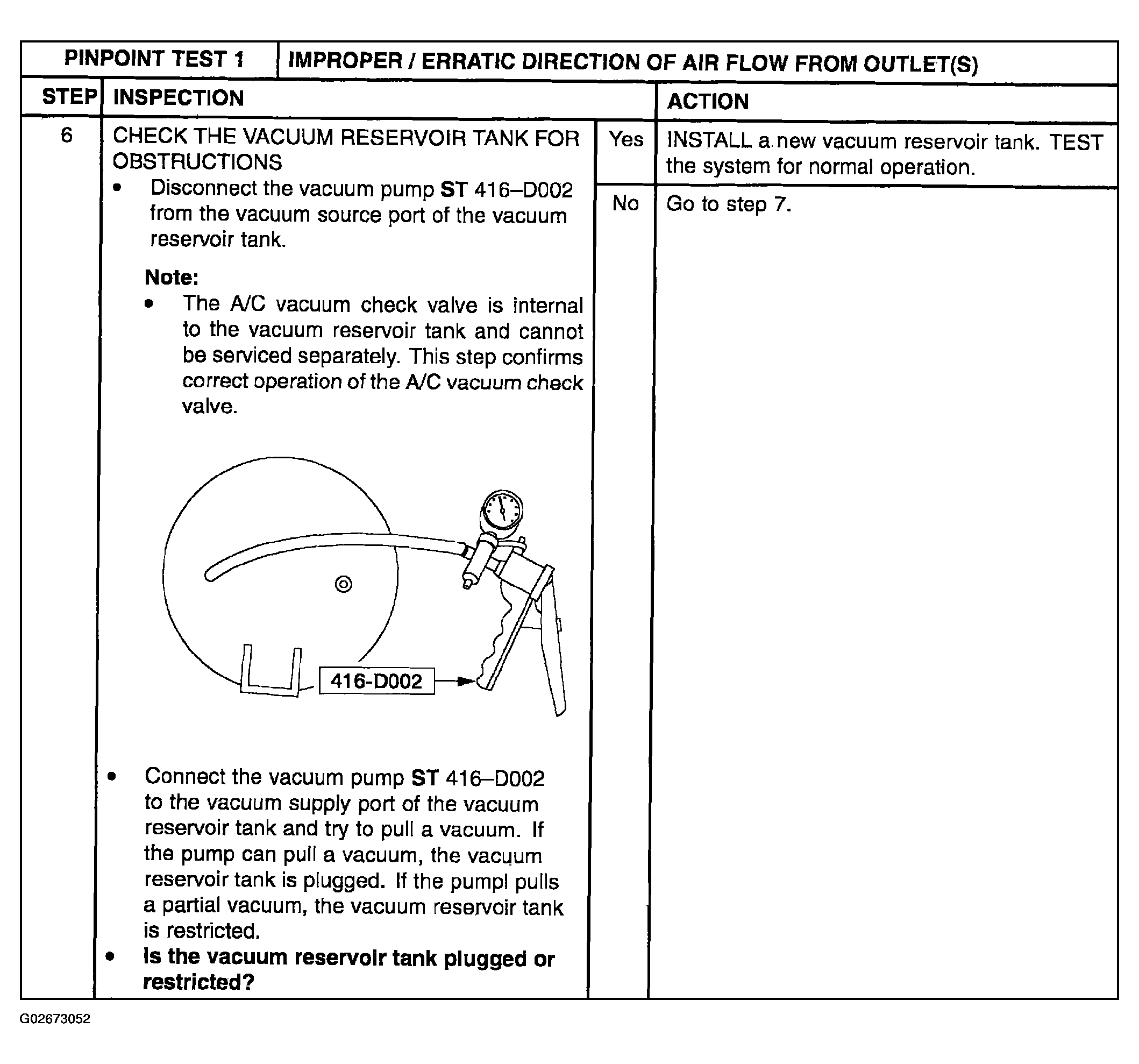

Fig 5: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Step 6)

Courtesy of MAZDA MOTORS CORP.

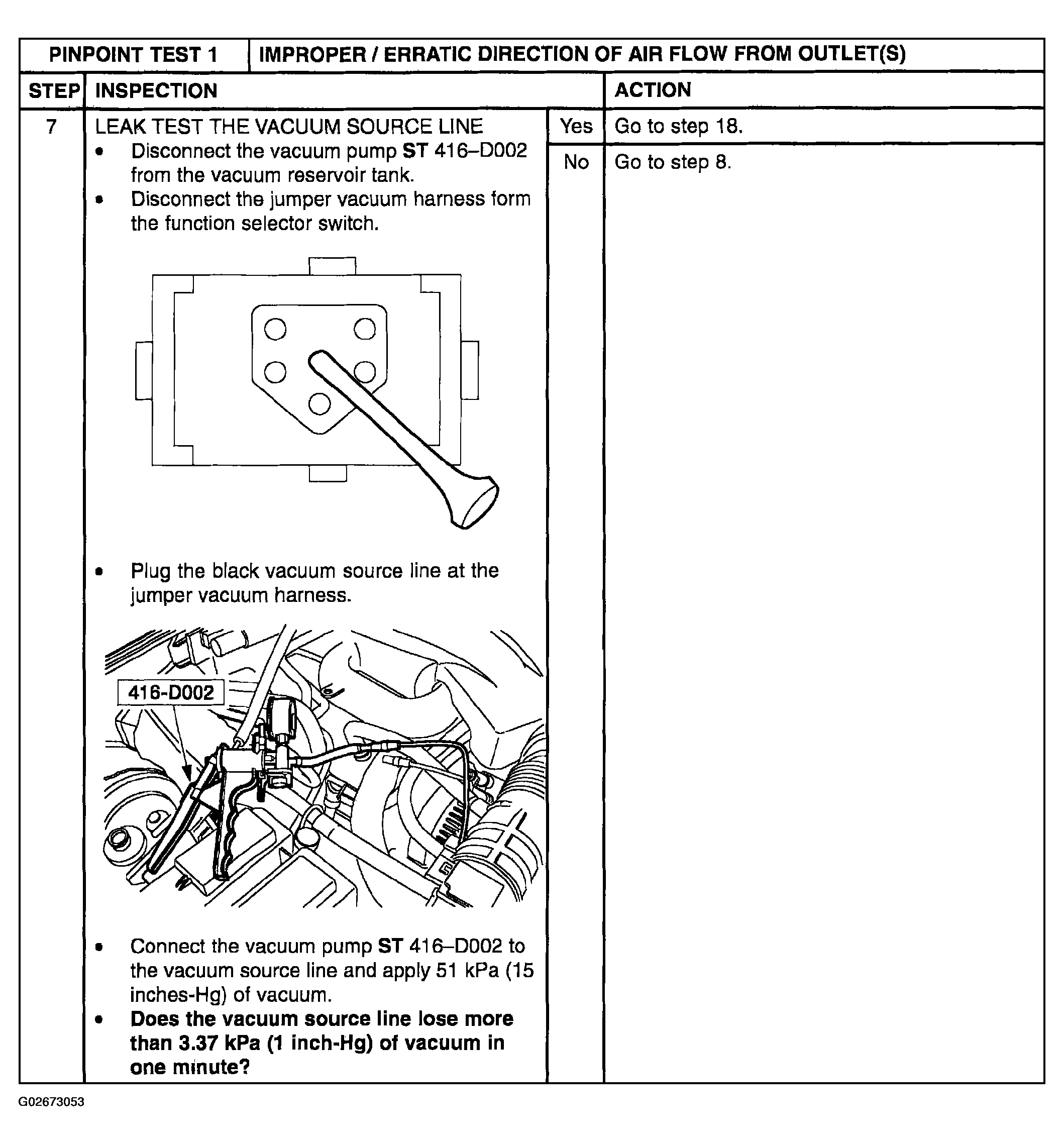

Fig 6: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Step 7)

Courtesy of MAZDA MOTORS CORP.

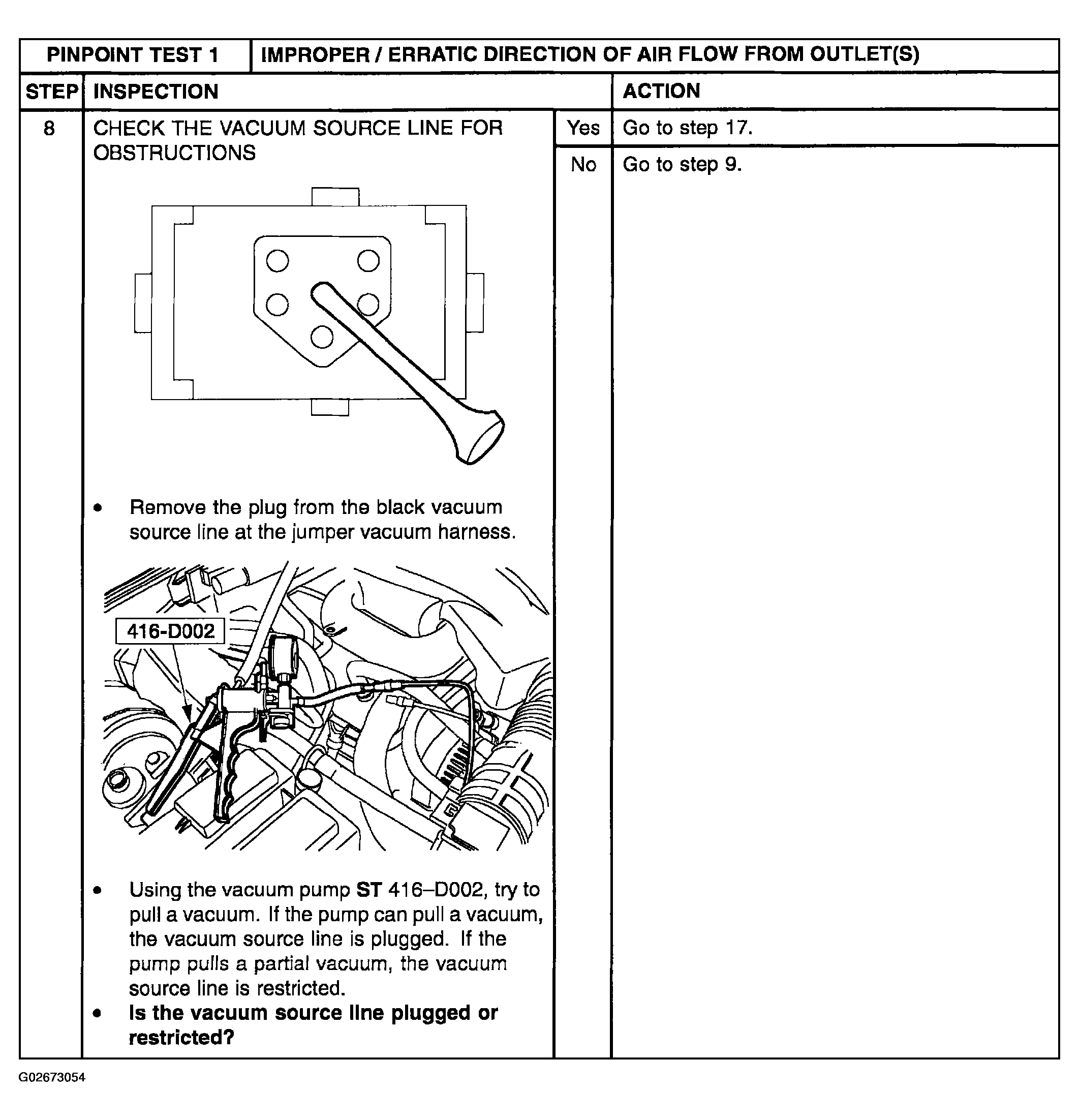

Fig 7: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Step 8)

Courtesy of MAZDA MOTORS CORP.

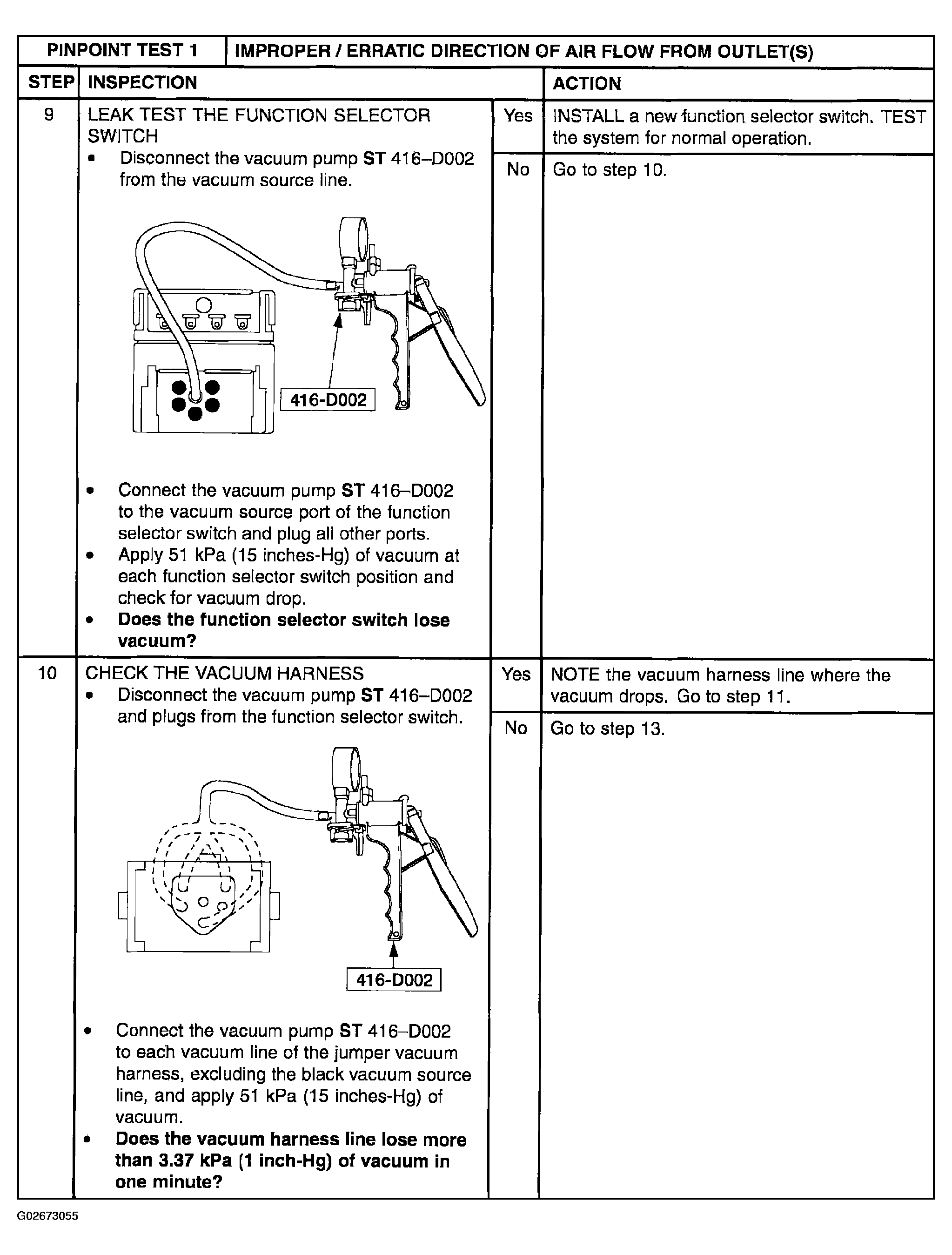

Fig 8: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Steps 9-10)

Courtesy of MAZDA MOTORS CORP.

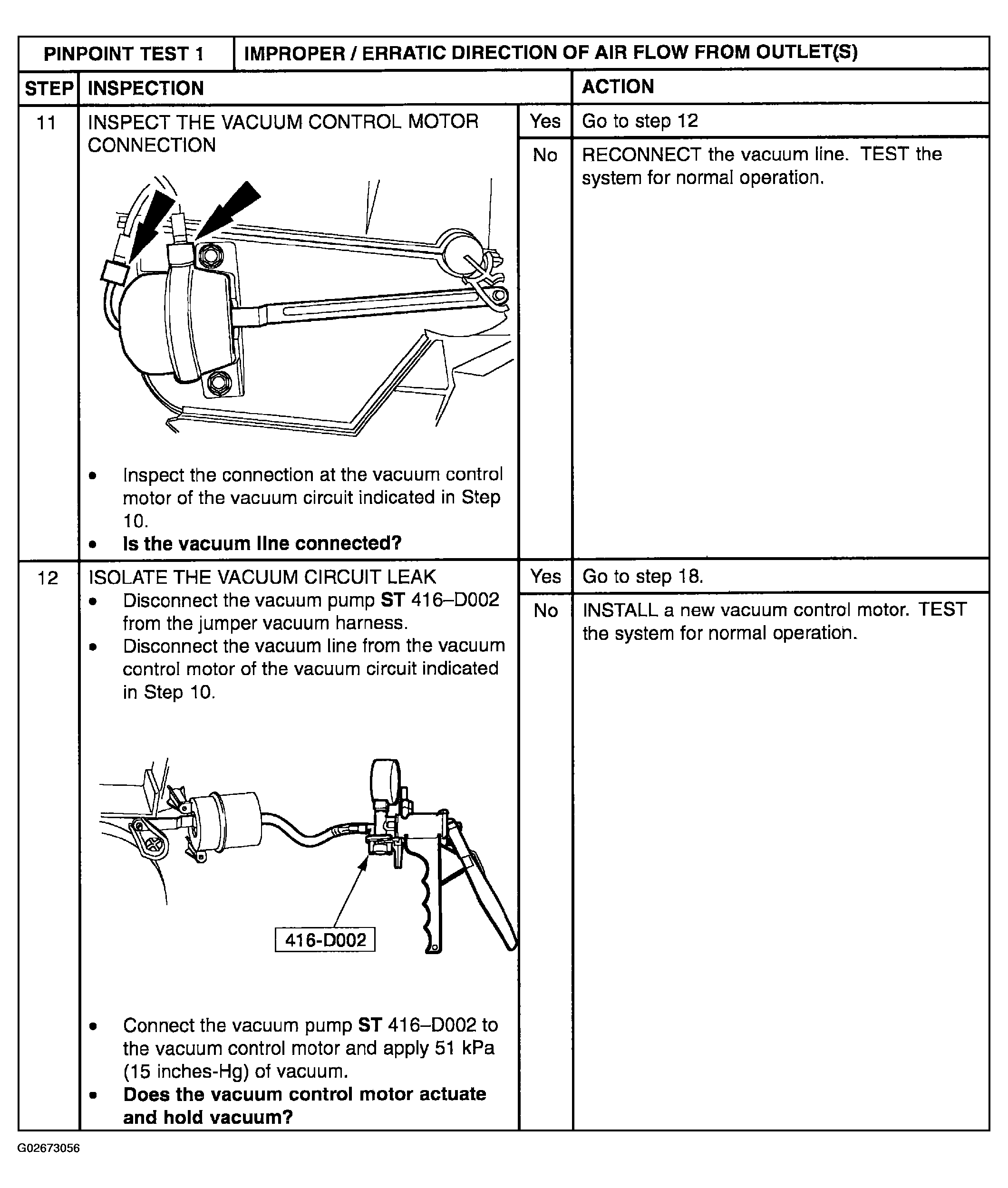

Fig 9: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.

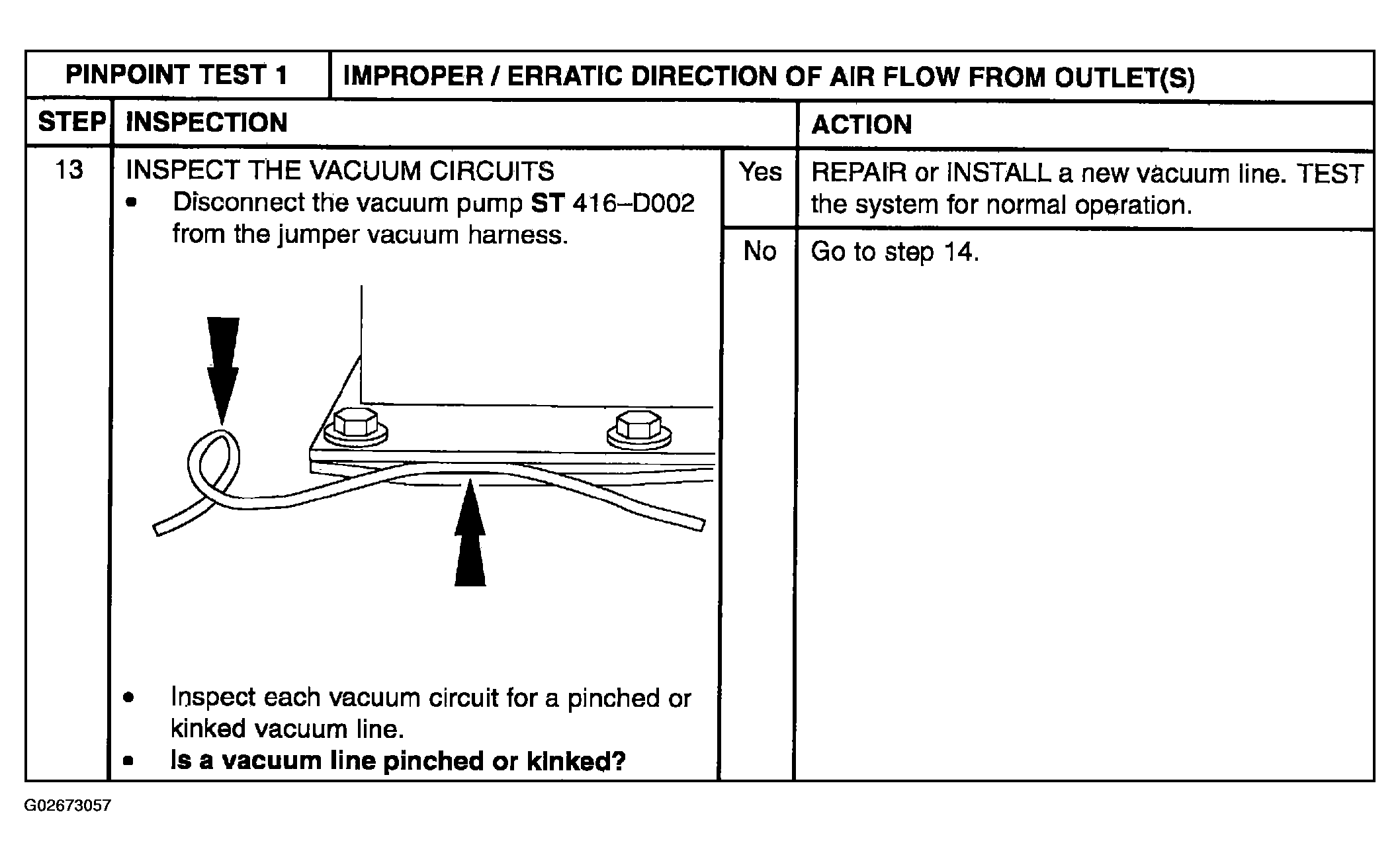

Fig 10: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Step 13)

Courtesy of MAZDA MOTORS CORP.

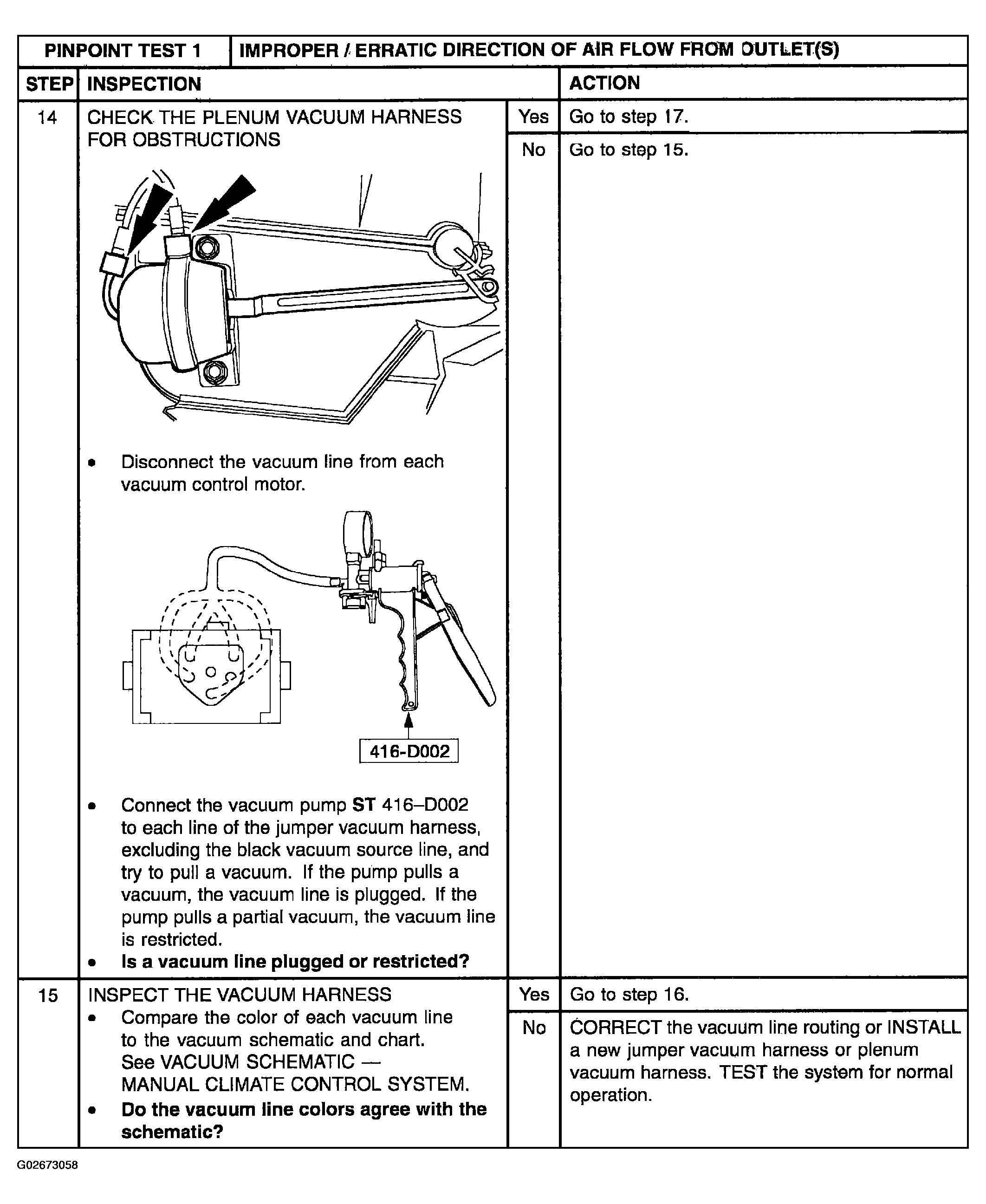

Fig 11: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Steps 14-15)

Courtesy of MAZDA MOTORS CORP.

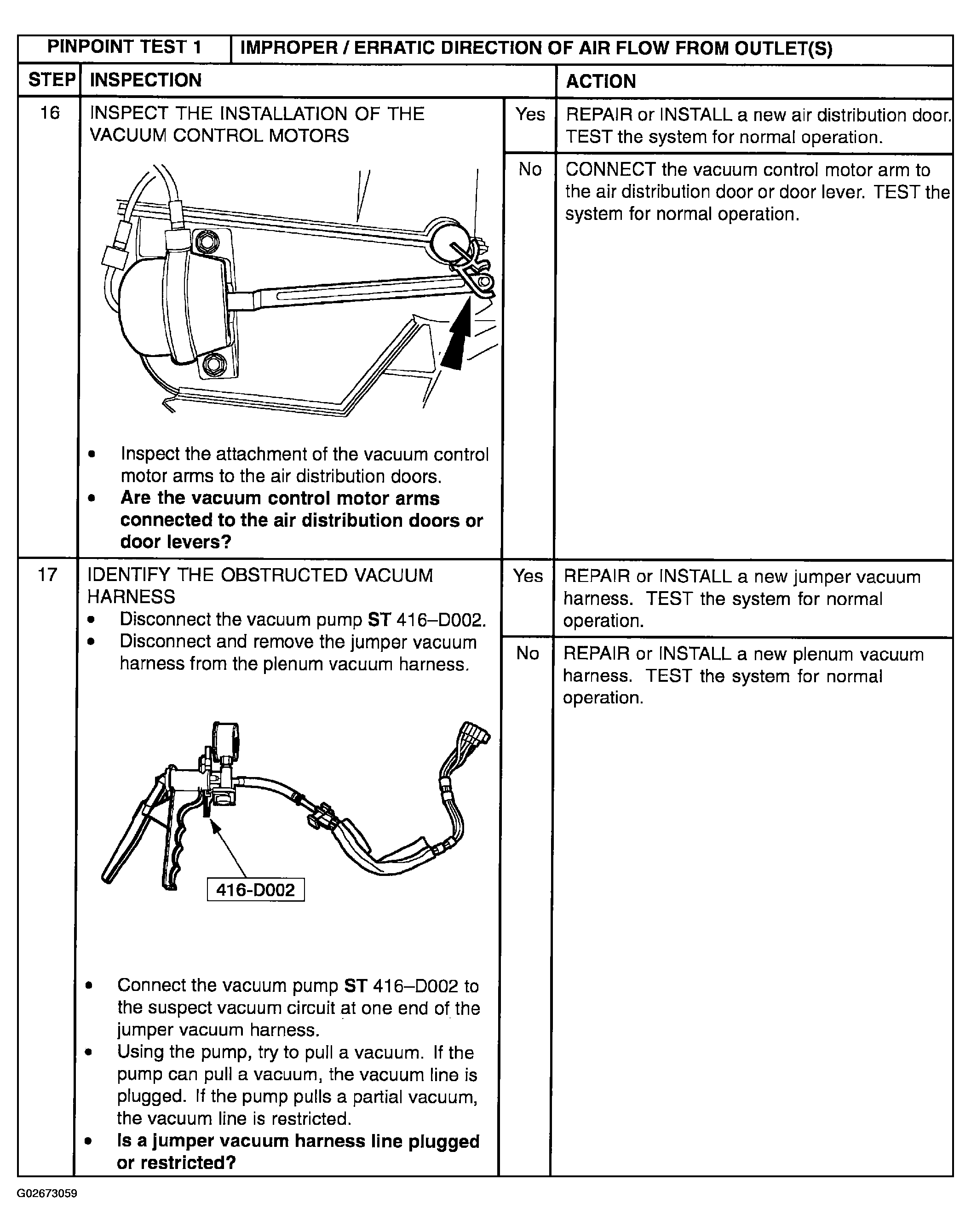

Fig 12: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Steps 16-17)

Courtesy of MAZDA MOTORS CORP.

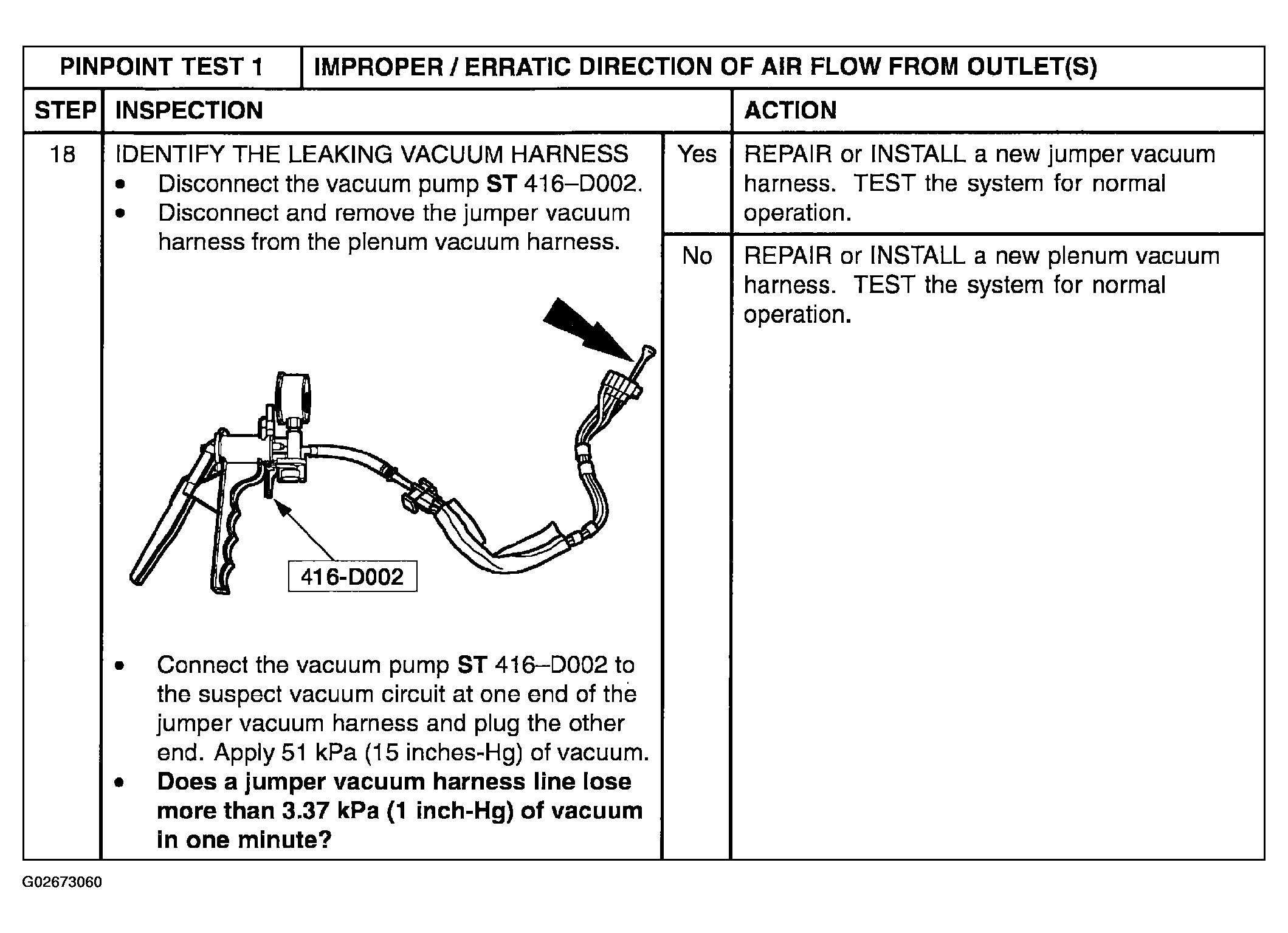

Fig 13: Pinpoint Test 1: Improper/Erratic Direction Of Air Flow From Outlet(s) (Step 18)

Courtesy of MAZDA MOTORS CORP.
