Section 31 (Manual A/C-Heater Systems - HVAC): Specifications

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

SPECIFICATIONS

Application

Specification

Compressor Type

Ford FS-10 Swashplate, 10 Cyl.

Compressor Belt Tension

⁽¹⁾

System Oil Capacity

⁽²⁾ 9.0 ozs.

Magnetic Clutch Air Gap

.014-.030" (0.35-0.75 mm)

Refrigerant (R-134a) Capacity

30 ozs.

System Operating Pressures ⁽³⁾

High-Side

125-230 psi (8.8-16.2 kg/cm² )

Low-Side

26-46 psi (1.8-3.2 kg/cm² )

⁽¹⁾	A serpentine belt is used with an automatic tensioner.

⁽²⁾	Use SUNISCO 5GS refrigerant oil.

⁽³⁾	Specification is with ambient temperature at about 80°F (27°C).

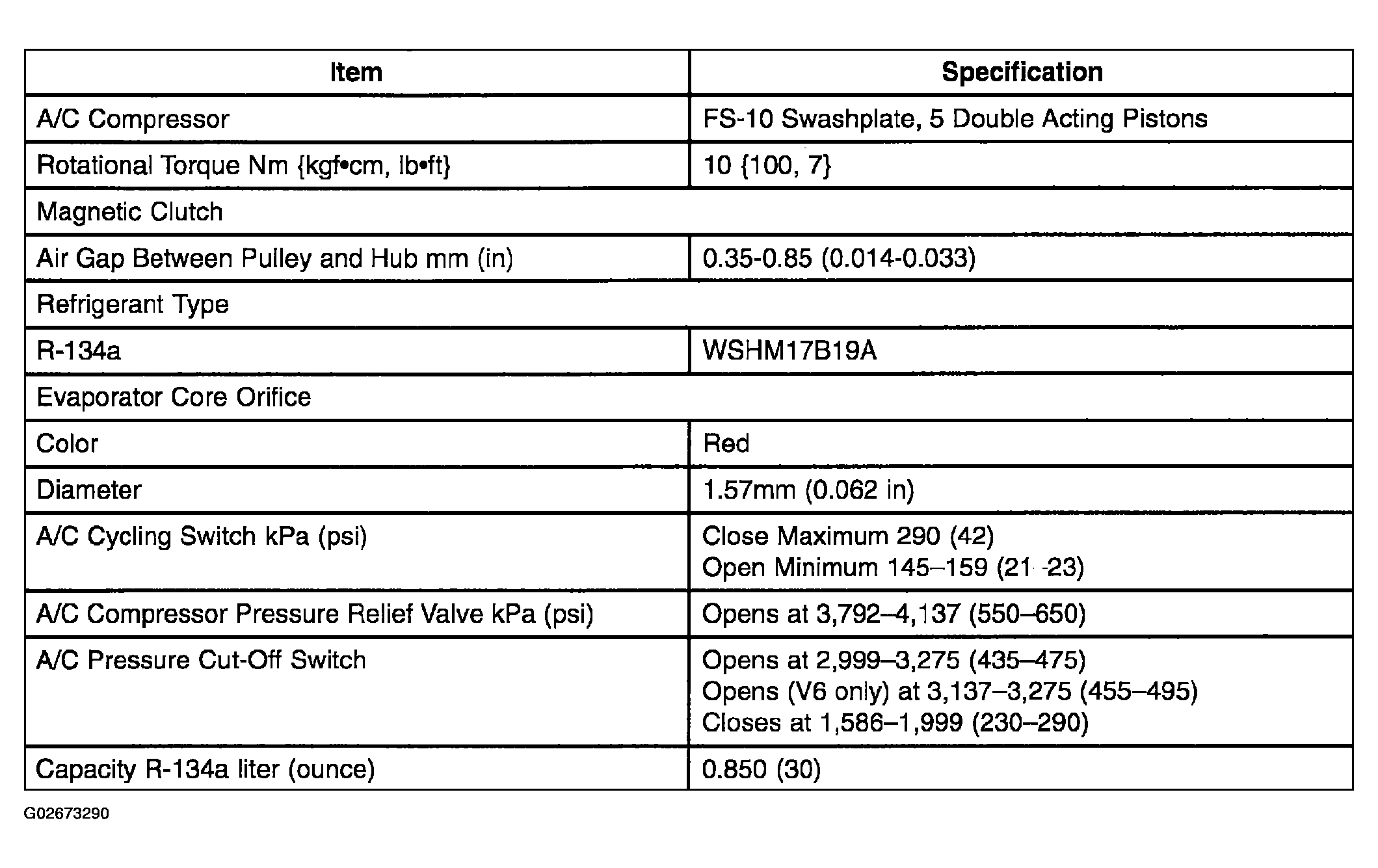

Fig 1: HVAC Specifications

Courtesy of MAZDA MOTORS CORP.
