Windshield Defroster And Side Window Demister Nozzles Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel (1).
Remove the two screws and remove the LH side window demister hose (2) and duct (3).
Tightening Torque

2-3 N.m {20-30 kgf.Cm, 18-26 in.lbf}.

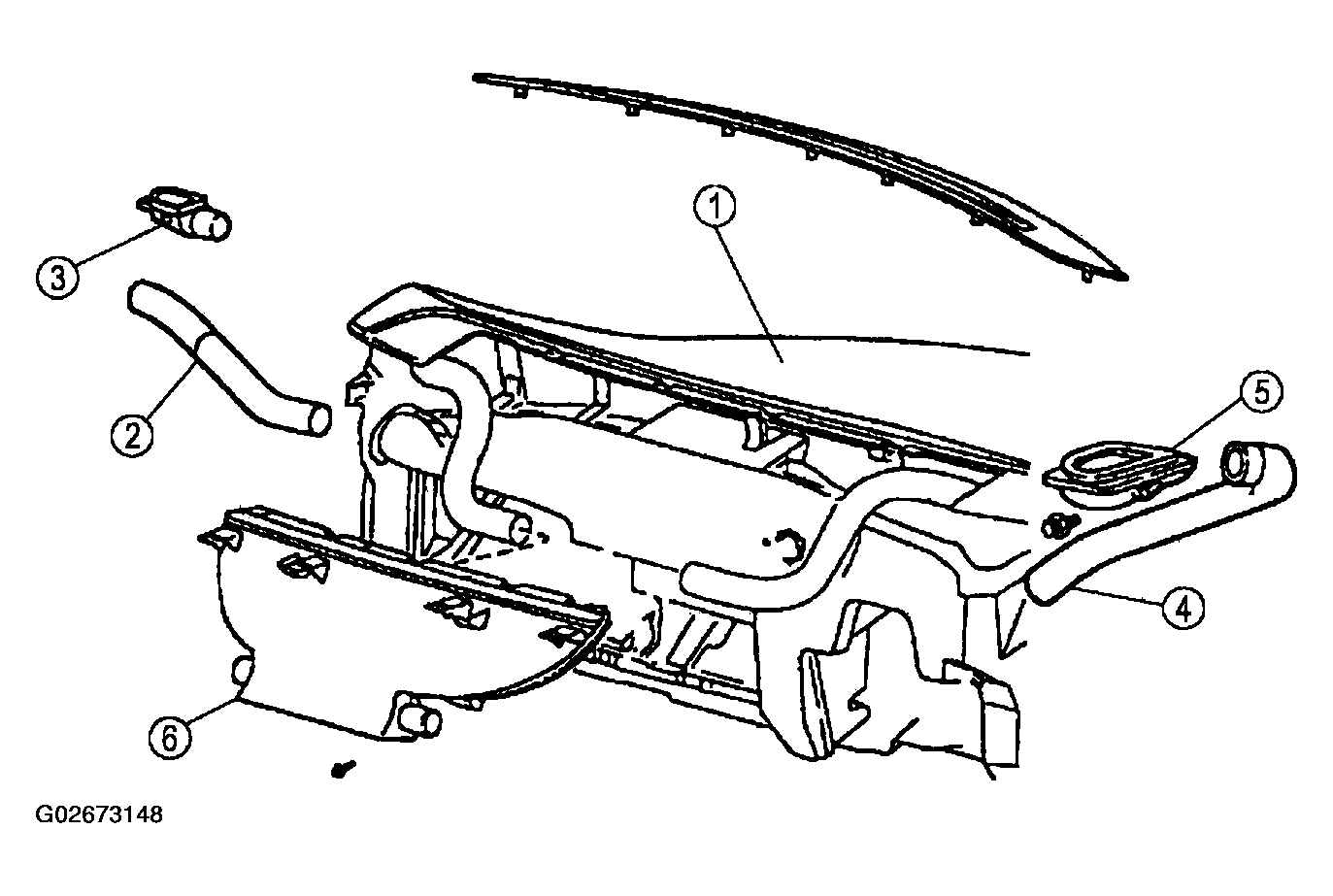

Fig 1: Removing Windshield Defroster & Side Window Demister Nozzles

Courtesy of MAZDA MOTORS CORP.

Remove the two screws and remove the RH side window demister hose (4) and duct (5).
Tightening Torque

2-3 N.m {20-30 kgf.Cm, 18-26 in.lbf}.
Remove the screws and remove the windshield defroster hose nozzle (6).
Tightening Torque

2-3 N.m {20-30 kgf.Cm, 18-26 in.lbf}.
Install in reverse order of removal.
