Installation Note

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To prevent refrigerant system contamination, do not allow dirt or other foreign materials to enter the A/C compressor.

Clean the compressor nose area.
Place the shaft seal on the Shaft Seal Protector ST 49 UN01 045. Lubricate the shaft seal and the special tool with refrigerant oil.

Fig 1: Installing Shaft Seal On Shaft Seal Protector
Courtesy of MAZDA MOTORS CORP.

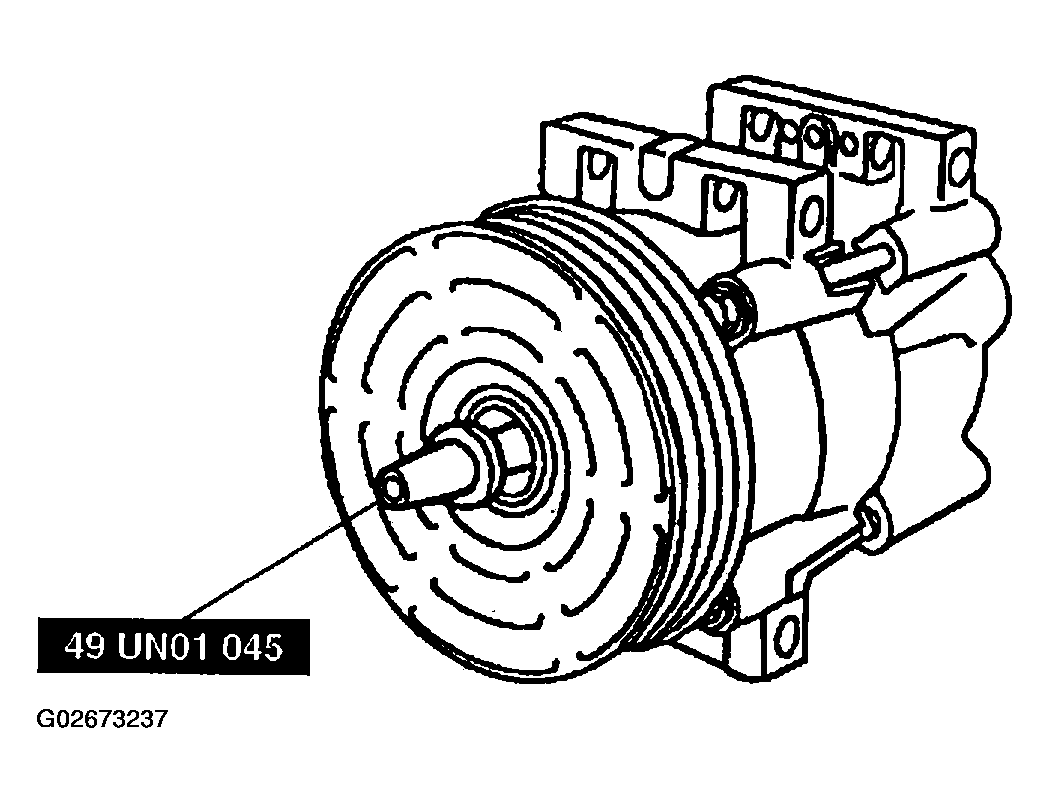

Position the shaft seal and the special tool over the A/C compressor shaft.

Fig 2: Positioning Shaft Seal Compressor Shaft
Courtesy of MAZDA MOTORS CORP.

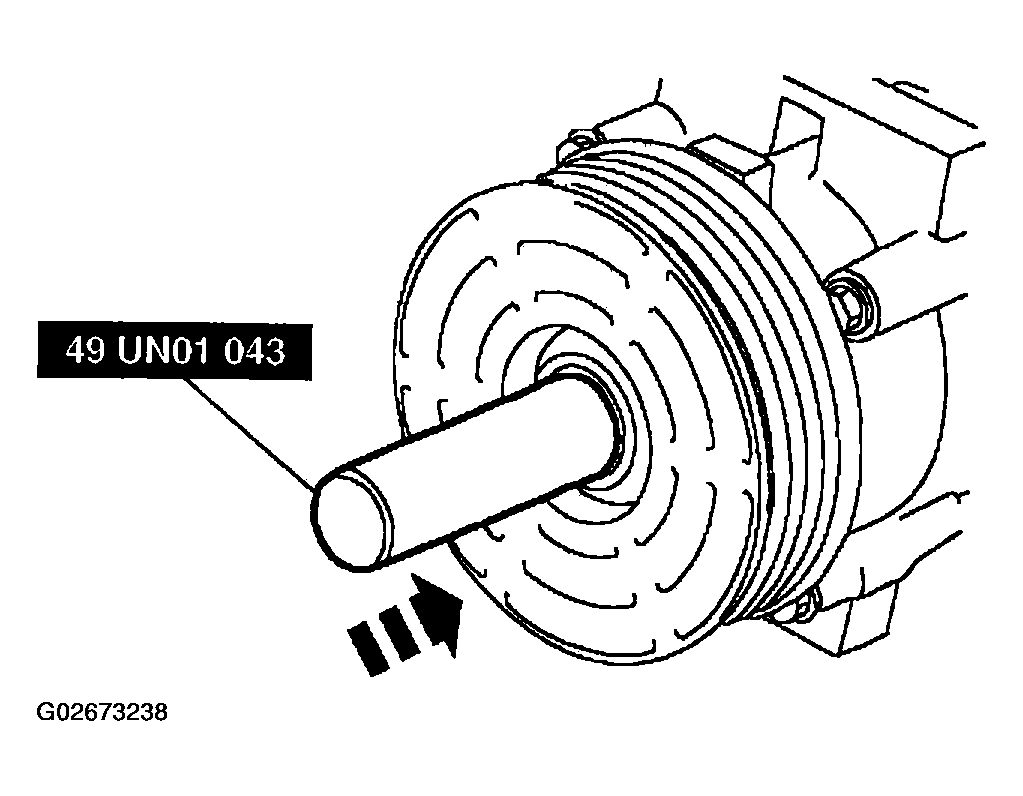

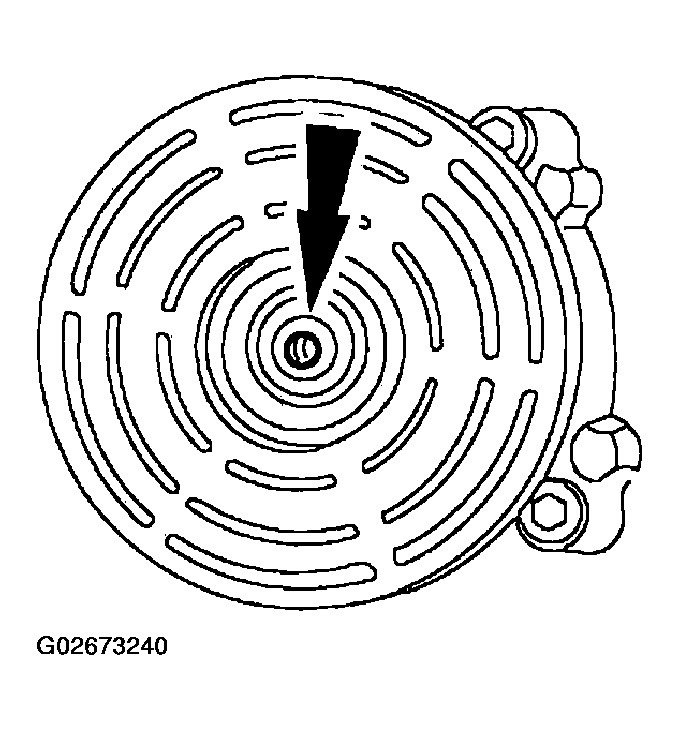

Push the shaft seal onto the compressor shaft with the special tool until seated.

Fig 3: Installing Shaft Seal
Courtesy of MAZDA MOTORS CORP.
Install the shaft seal snap ring.

Fig 4: Installing Shaft Seal Snap Ring
Courtesy of MAZDA MOTORS CORP.
Carry out the A/C Compressor-External Leak Test. See A/C COMPRESSOR INSPECTION .
Install the shaft seal felt.

Fig 5: Installing Shaft Seal Felt
Courtesy of MAZDA MOTORS CORP.
Install the A/C clutch. See MAGNETIC CLUTCH REMOVAL/INSTALLATION .
