Heater Control Switch Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater control unit; see HEATER CONTROL SWITCH REMOVAL/INSTALLATION  .
  2. Gently pull and remove the blower motor knob.
  3. Release the three clips and remove the switch.

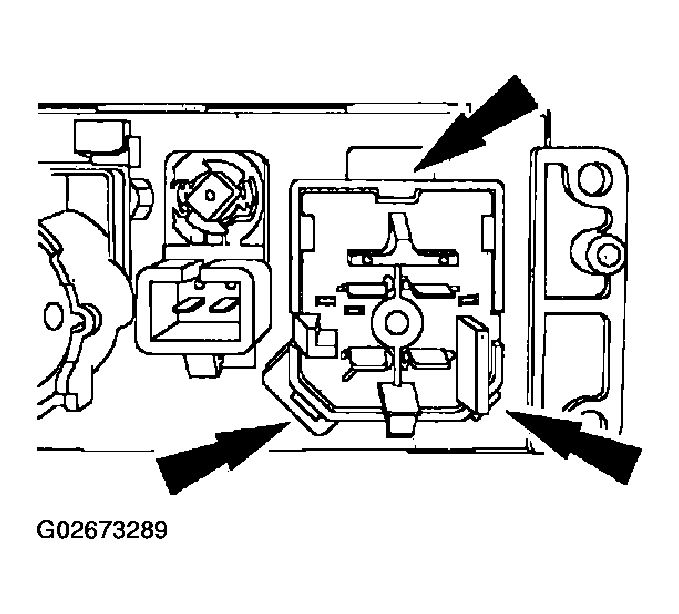

    Fig 1: Removing Heater Control Switch
    G02673289Courtesy of MAZDA MOTORS CORP.
  4. Gently pull and remove the function selector knob.
  5. Release the clips and remove the function selector switch.
  6. To install, reverse the removal procedure.
