Front Splash Shield Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screws
  2. Remove splash shield (1).

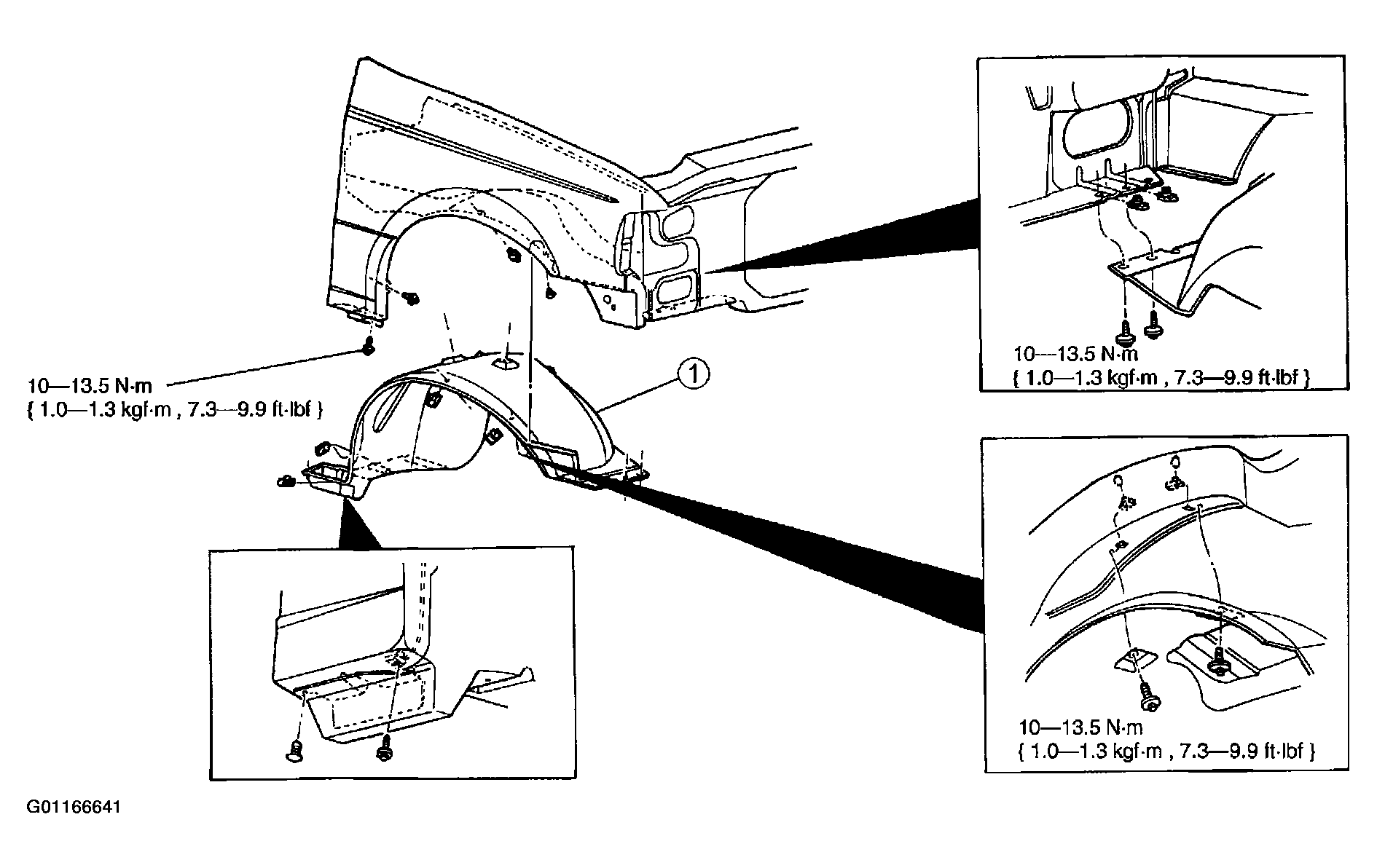

    Fig 1: Removing Front Splash Shield
    G01166641Courtesy of MAZDA MOTORS CORP.
  3. Install in reverse order of removal.
