Center Instrument Panel Register Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Using the special tool, remove the radio chassis.
  3. Disconnect the antenna lead and the wire harness connectors
  4. Remove the center trim finish panel.
  5. Disconnect the wire harness connectors.
  6. Release the eight clips and remove the center instrument panel register from the center trim finish panel.

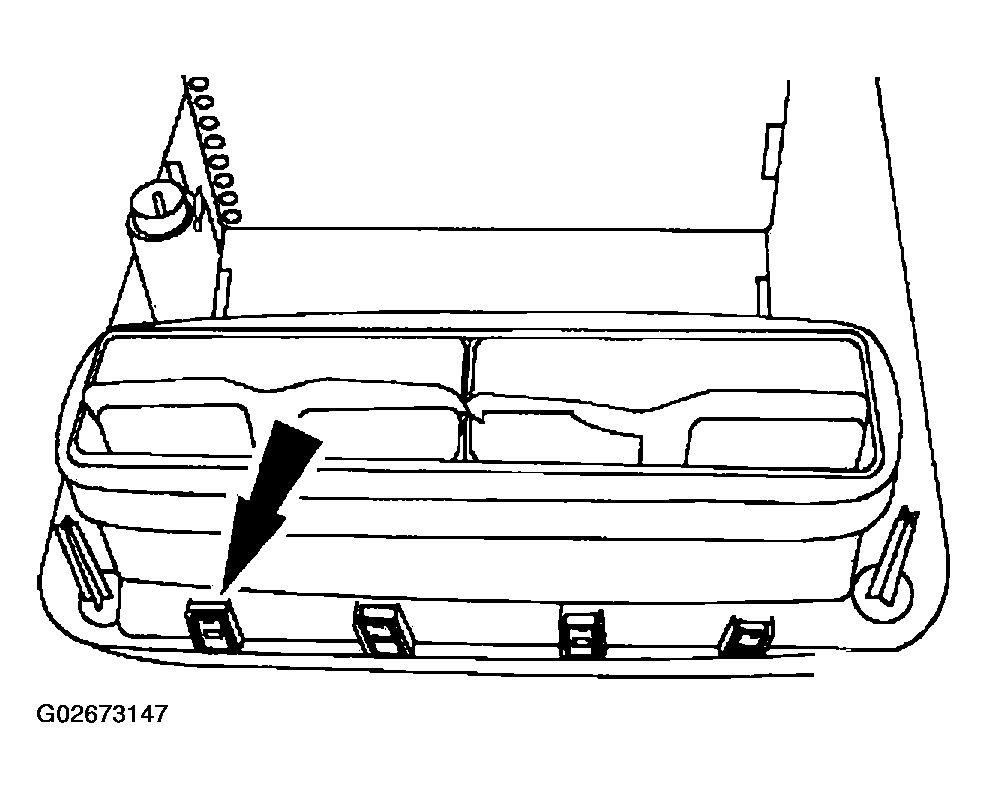

    Fig 1: Identifying Retaining Clips
    G02673147Courtesy of MAZDA MOTORS CORP.
  7. To install, reverse the removal procedure.

    Tightening Torque

    2-3 N.m {20-31 kgf.Cm, 18-26 in.lbf}.
