Blower Motor Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the connector from the cruise control servo.
Remove the screw and reposition the cruise control servo.
Remove in order shown figure.

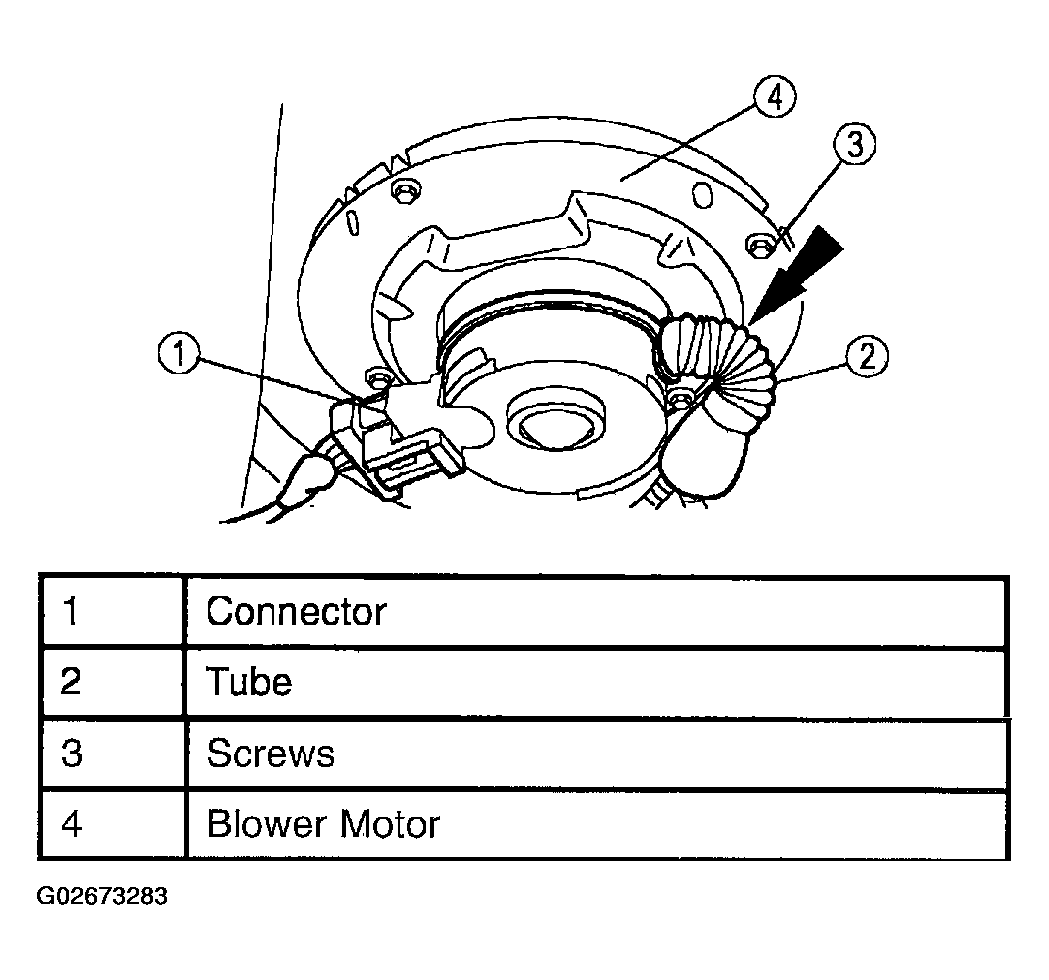

Fig 1: Removing Blower Motor
Courtesy of MAZDA MOTORS CORP.
Remove the retaining clip and wheel from blower motor.

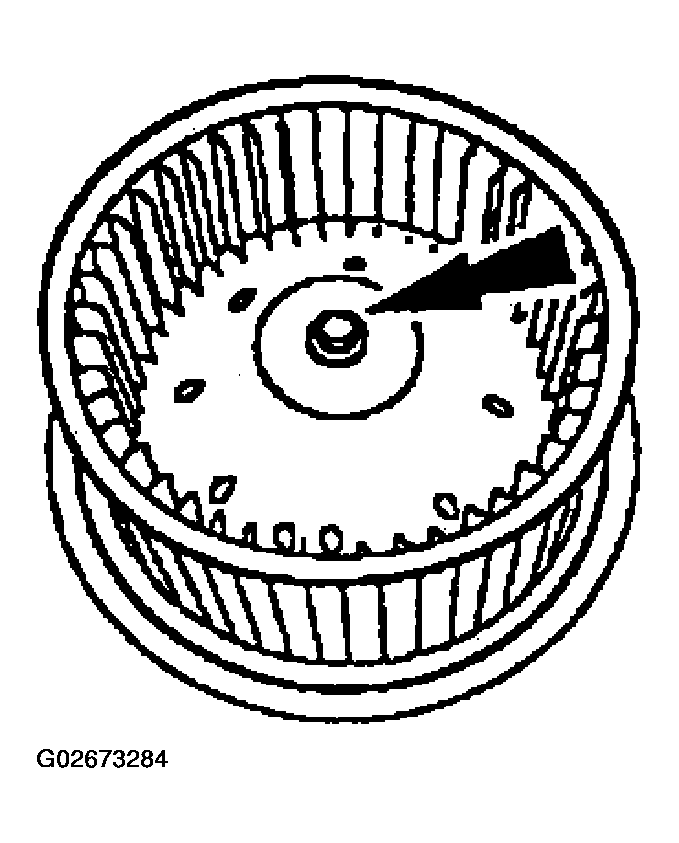

Fig 2: Removing Blower Motor Retaining Clip & Wheel
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
