A/C Compressor Bracket Removal/Installation (3.0L)

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manifold and tube assembly; see MANIFOLD AND TUBE ASSEMBLY REMOVAL/INSTALLATION (3.0L)  .
  2. Remove the power steering pump from the A/C compressor mounting bracket; see POWER STEERING OIL PUMP REMOVAL/INSTALLATION .
  3. Remove the A/C compressor mounting bracket.
    1. Remove the stud bolts.
    2. Remove the bolts and remove the A/C compressor mounting bracket.

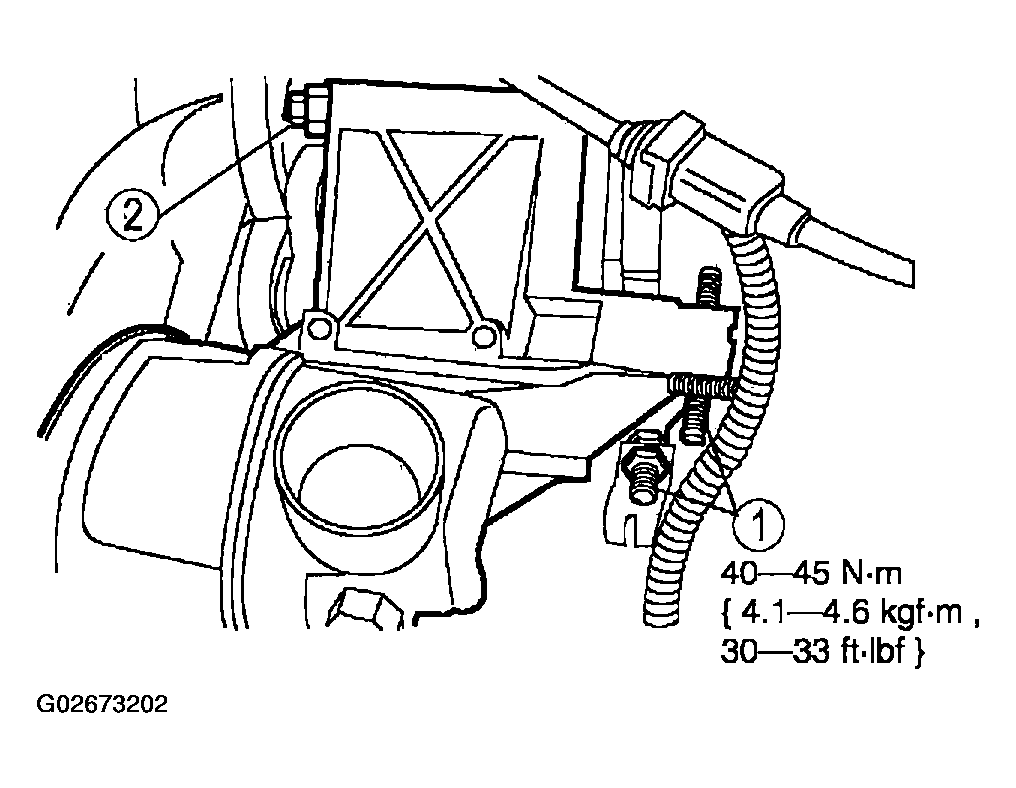

    Fig 1: Removing A/C compressor Mounting Bracket
    G02673202Courtesy of MAZDA MOTORS CORP.
  4. Remove the tensioner from the A/C compressor mounting bracket.

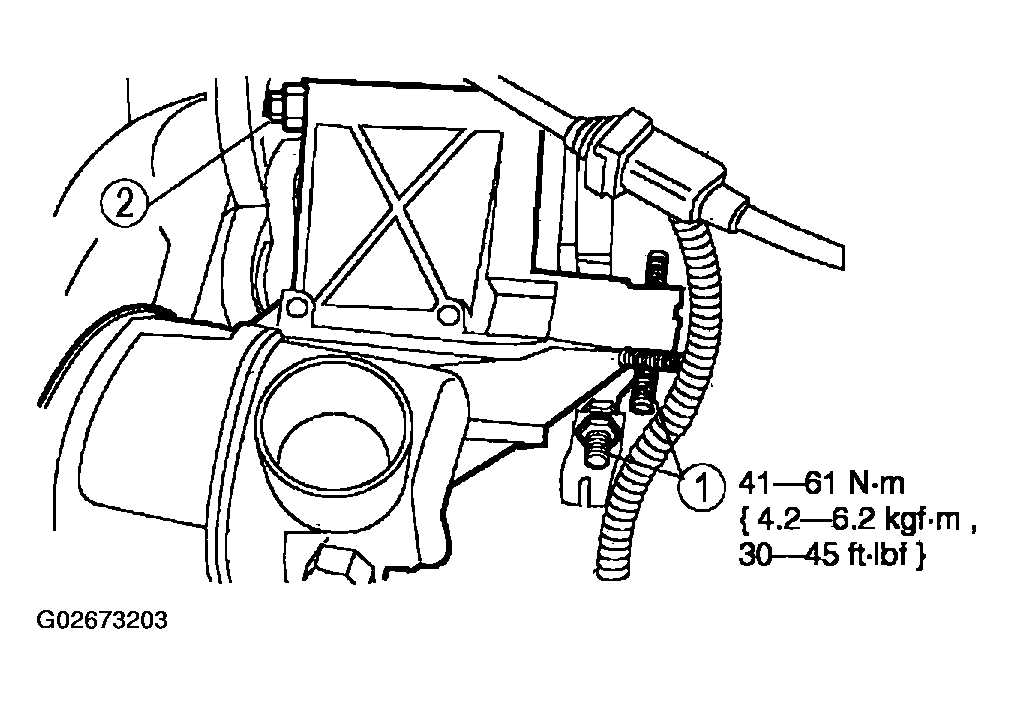

    Fig 2: Removing Tensioner From A/C Compressor Mounting Bracket
    G02673203Courtesy of MAZDA MOTORS CORP.
  5. Remove the idler pulley from the A/C compressor mounting bracket.

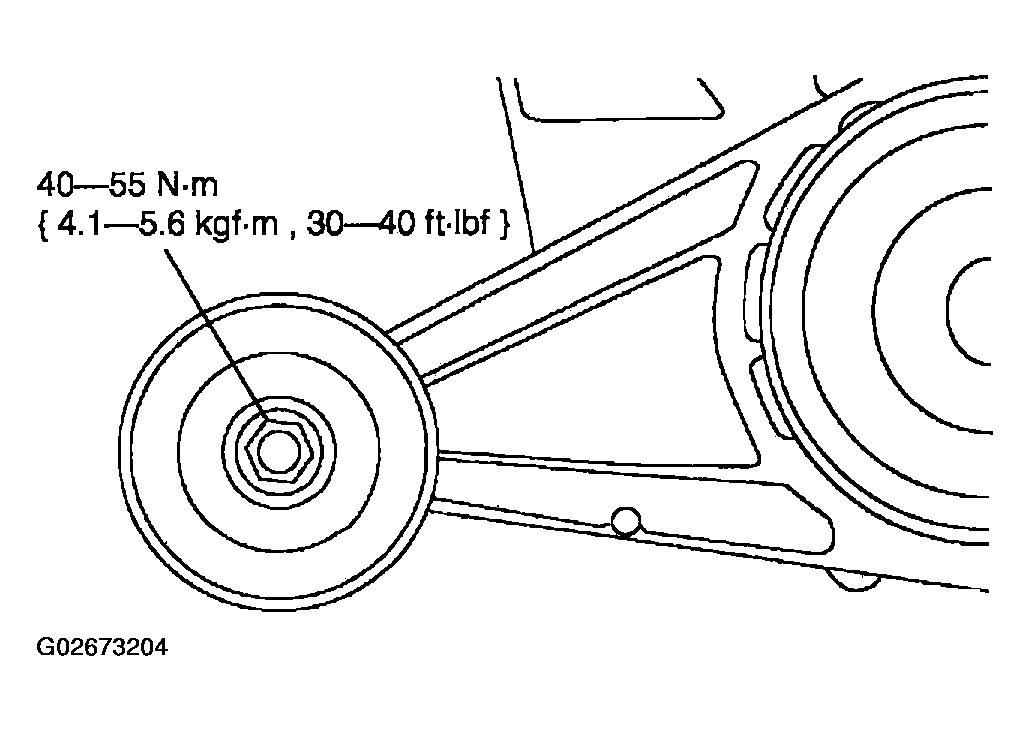

    Fig 3: Removing Idler Pulley From A/C Compressor Mounting Bracket
    G02673204Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
