Basic System Structural View

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

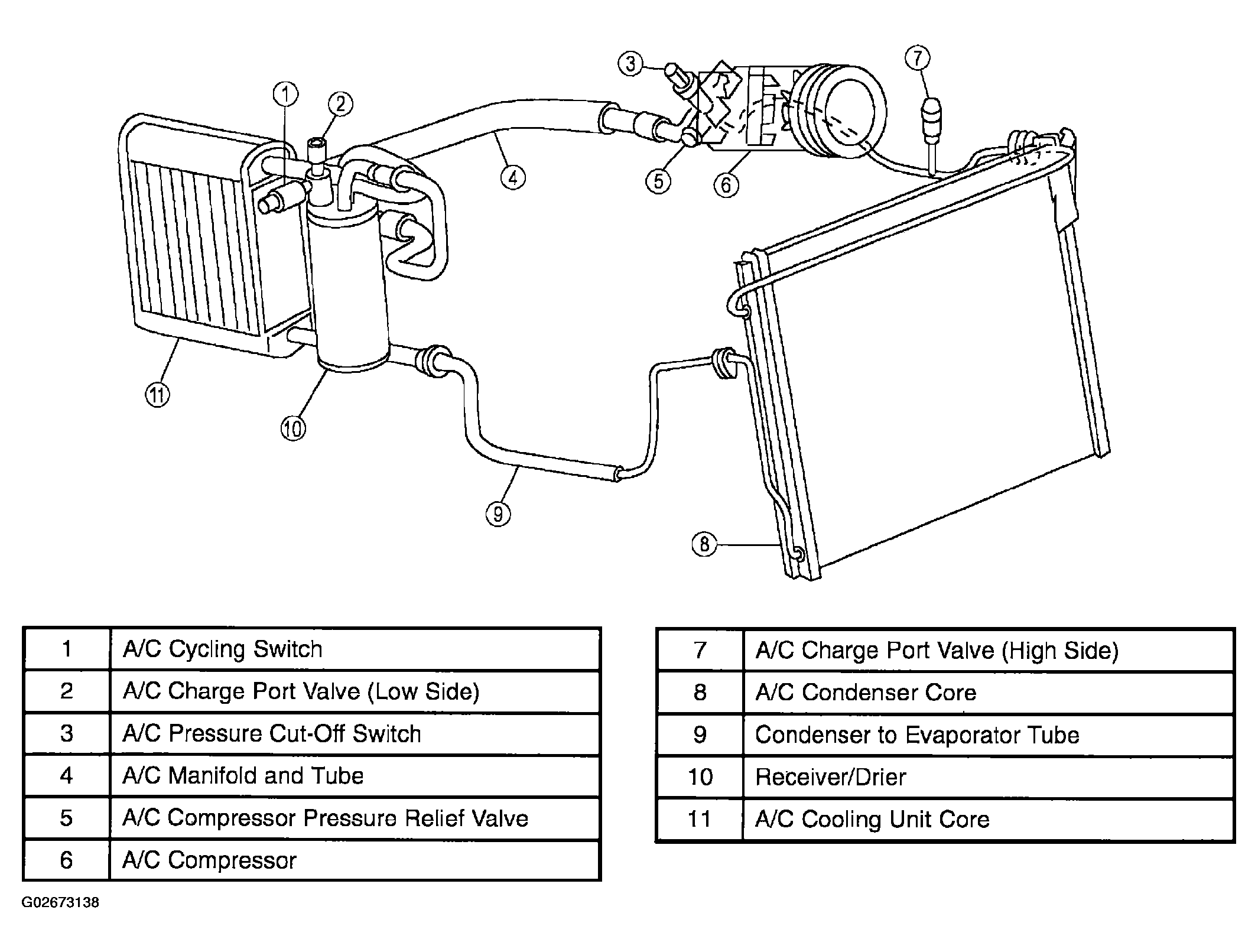

Fig 1: Basic System Structural View
G02673138Courtesy of MAZDA MOTORS CORP.
