Cooling Fan Removal/Installation: L3

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the shroud panel. (See SHROUD PANEL REMOVAL/INSTALLATION .)
  3. Remove the cooler pipe stay. (See CONDENSER REMOVAL/INSTALLATION .)
  4. Remove the oil hose stay. (ATX)
  5. Remove in the order indicated in Fig 1.

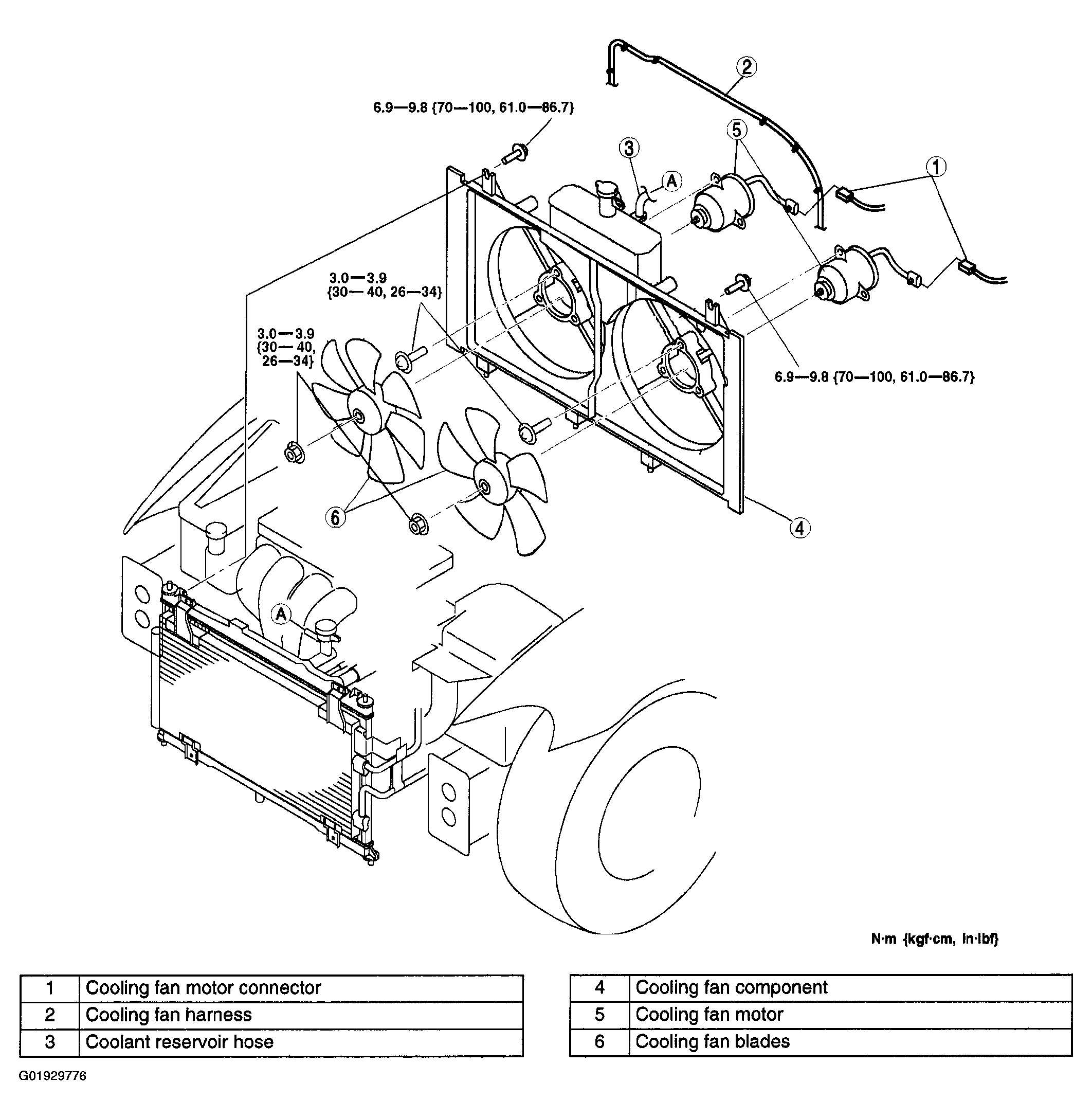

    Fig 1: Removing Cooling Fan (L3)
    G01929776Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
