Shroud Panel Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood. (See HOOD REMOVAL/INSTALLATION  .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION  .)
  3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Remove the front bumper reinforcement. (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION  .)
  5. Remove in the order indicated.

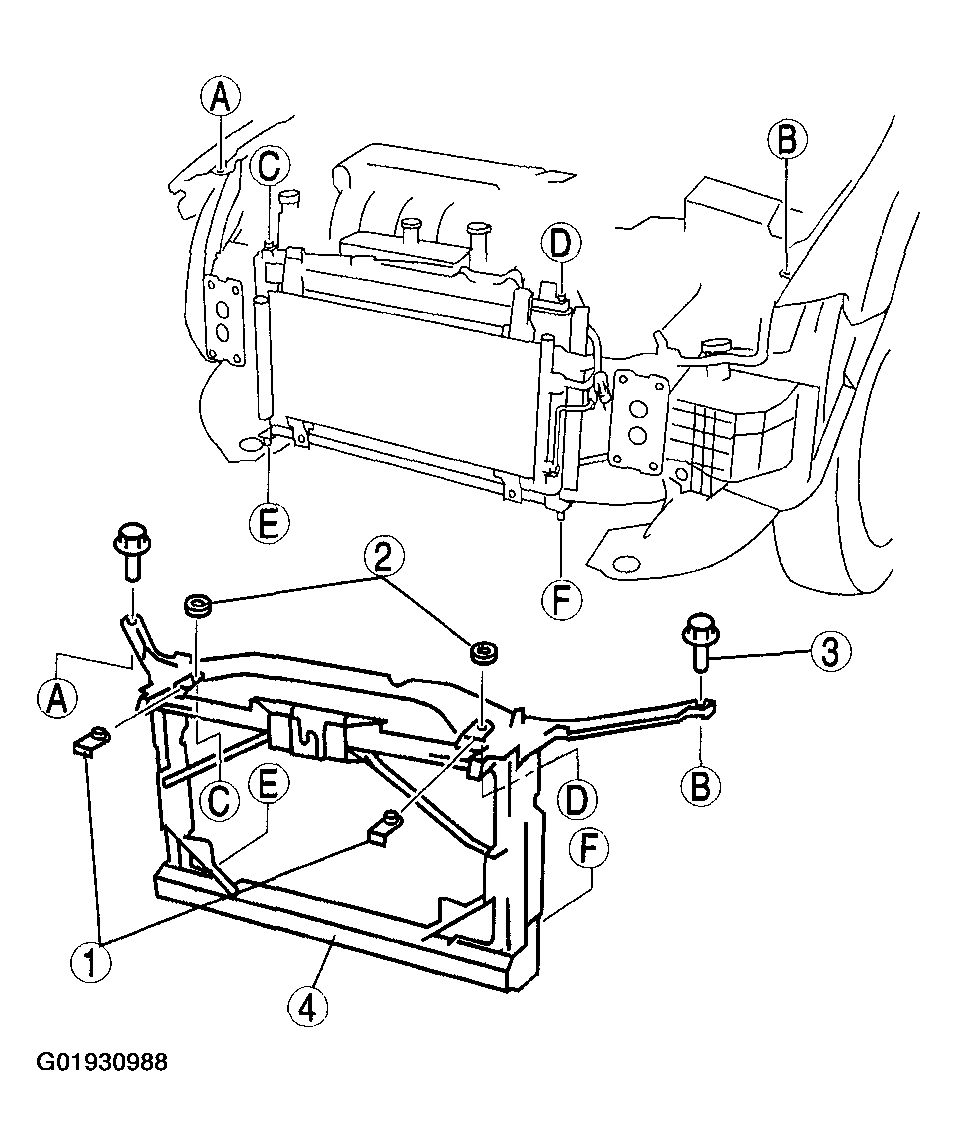

    Fig 1: Identifying Shroud Panel Components
    G01930988Courtesy of MAZDA MOTORS CORP.
    Fig 2: Shroud Panel Removal Sequence
    G01930987Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
