Cooling Fan Removal/Installation: AJ
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove the shroud panel. (See SHROUD PANEL REMOVAL/INSTALLATION .)
- Remove the cooler pipe stay. (See CONDENSER REMOVAL/INSTALLATION .)
- Remove the oil hose stay. (ATX)
- Disconnect the coolant reservoir hose from the radiator.

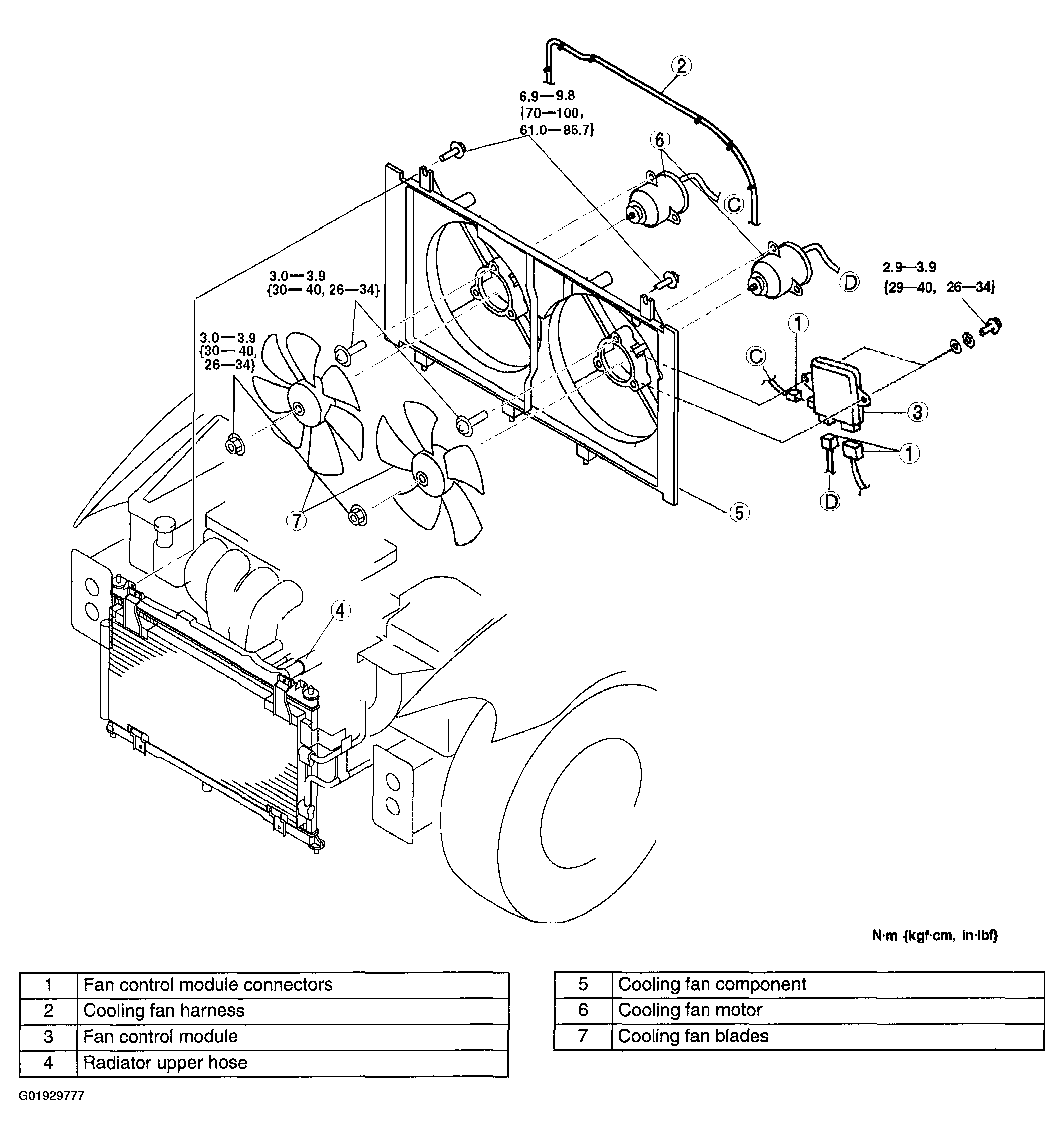

- Remove in the order indicated in Fig 1.
- Install in the reverse order of removal.
- Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
