Engine Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the bolts part number 99794 1025  or M10x1.25, length 25 mm {0.984 in}  to Install the SST

    Tightening torque

    1. 100-125 N.m {10.2-12.7 kgf.m, 73.8-92.1 ft.lbf}

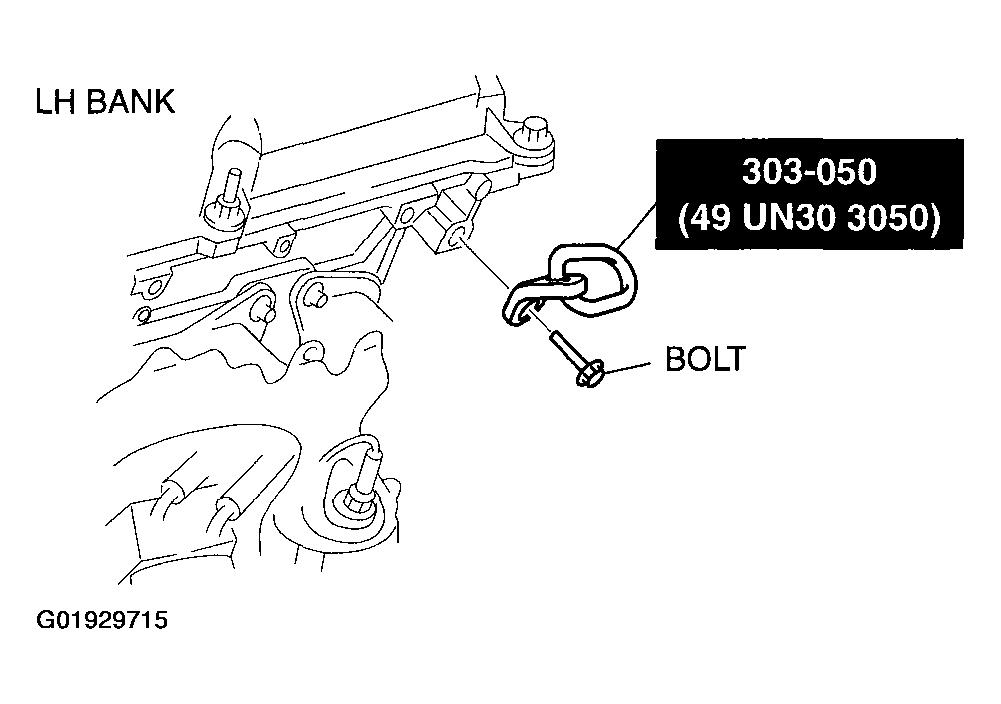

    Fig 1: Installing SST
    G01929715Courtesy of MAZDA MOTORS CORP.
  2. Remove the engine and transaxle from the engine jack.
  3. Disconnect the engine and transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FN4A-EL] .)
  4. Remove the generator. (See REMOVAL & INSTALLATION (3.0L) .)
  5. Remove the P/S oil pump. (See POWER STEERING OIL PUMP (AJ) REMOVAL/INSTALLATION .)
  6. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  7. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  8. Remove the thermostat case and water hose component.

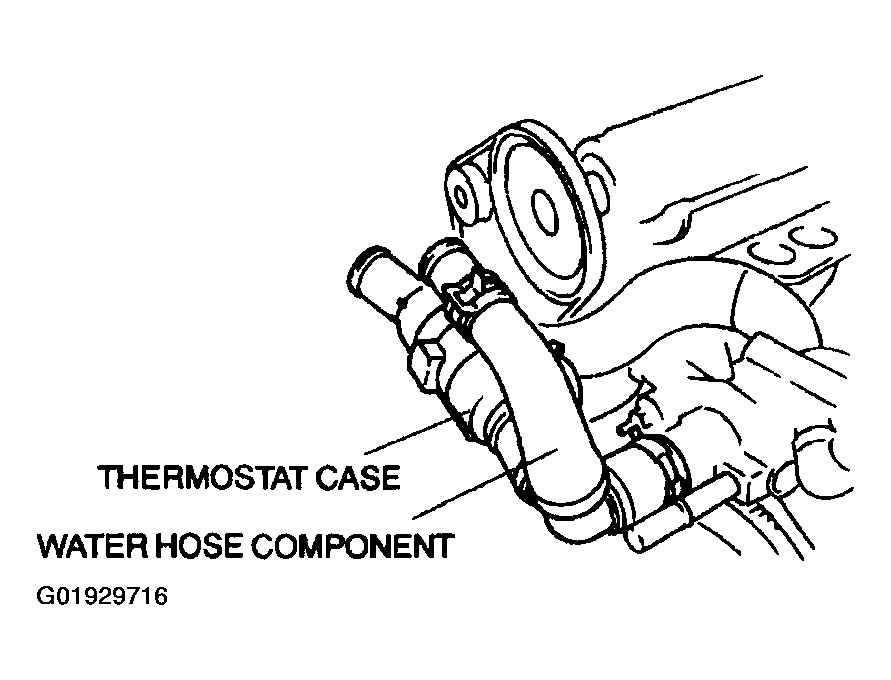

    Fig 2: Removing Thermostat Case And Water Hose Component
    G01929716Courtesy of MAZDA MOTORS CORP.
  9. Remove the water bypass tube. (See WATER BYPASS TUBE REMOVAL NOTE .)
  10. Remove the Ignition coils. (See REMOVAL & INSTALLATION (MAZDA6 3.0L) .)
  11. Assemble in the reverse order of disassembly.
