Drive Belt Deflection Check

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Verify the drive belt deflection when the engine is cold, or at least 30 min after the engine has stopped. Apply moderate pressure 98 N {10 kgf, 22 lbf} midway between the specified pulleys.

If the deflection is not within the specification, adjust it. See DRIVE BELT ADJUSTMENT .

Fig 1: Locating Deflection Measuring Point (Generator/Water Pump Belt)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Locating Deflection Measuring Point (P/S Or P/S & A/C Belt)
Courtesy of MAZDA MOTORS CORP.

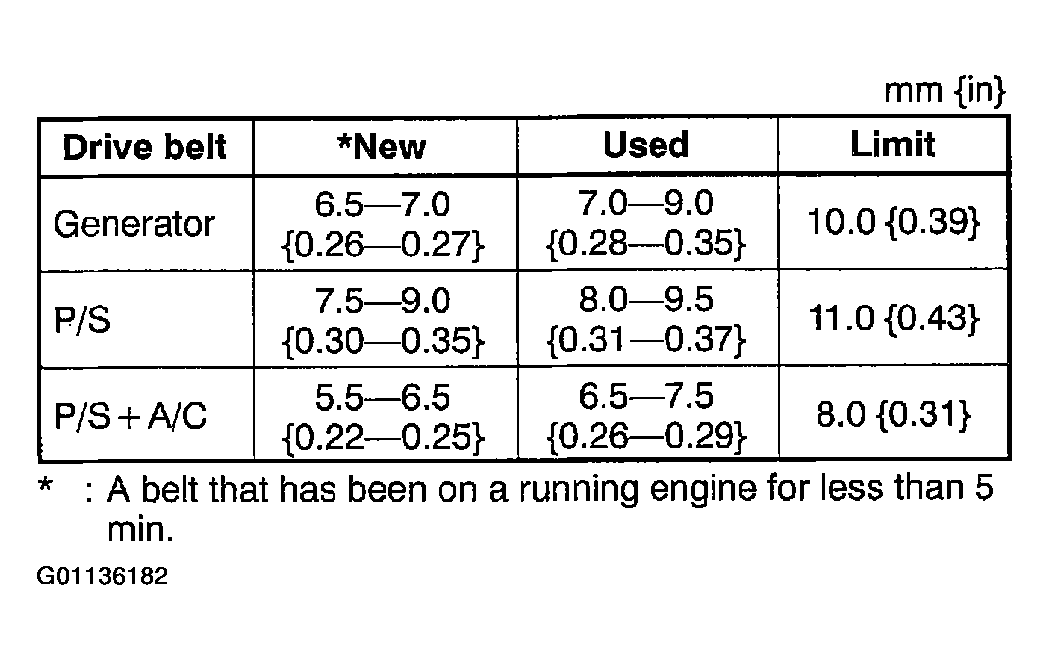

Fig 3: Drive Belt Deflection Chart

Courtesy of MAZDA MOTORS CORP.
