Drive Belt Adjustment

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen mounting bolts A and nut B. See Fig 1.
  2. Adjust the belt deflection or tension by turning the adjusting bolt C. See DRIVE BELT INSPECTION .
  3. Tighten mounting bolts A and nut B.

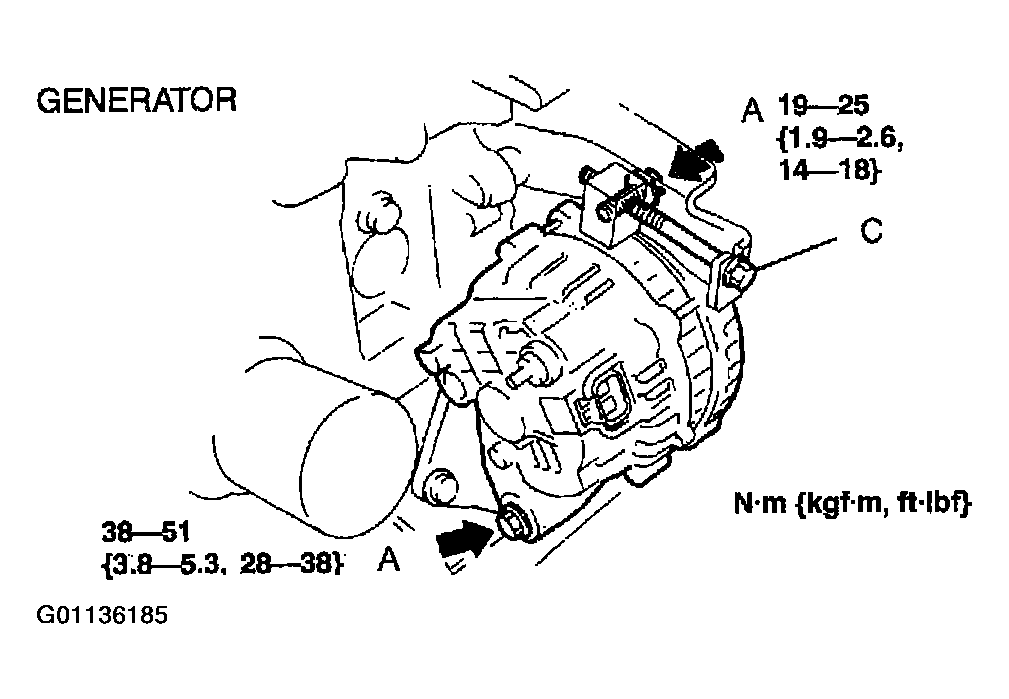

    Fig 1: Identifying Mounting/Adjusting Bolts & Nut
    G01136185Courtesy of MAZDA MOTORS CORP.
  4. Verify the belt deflection or tension. See DRIVE BELT INSPECTION .

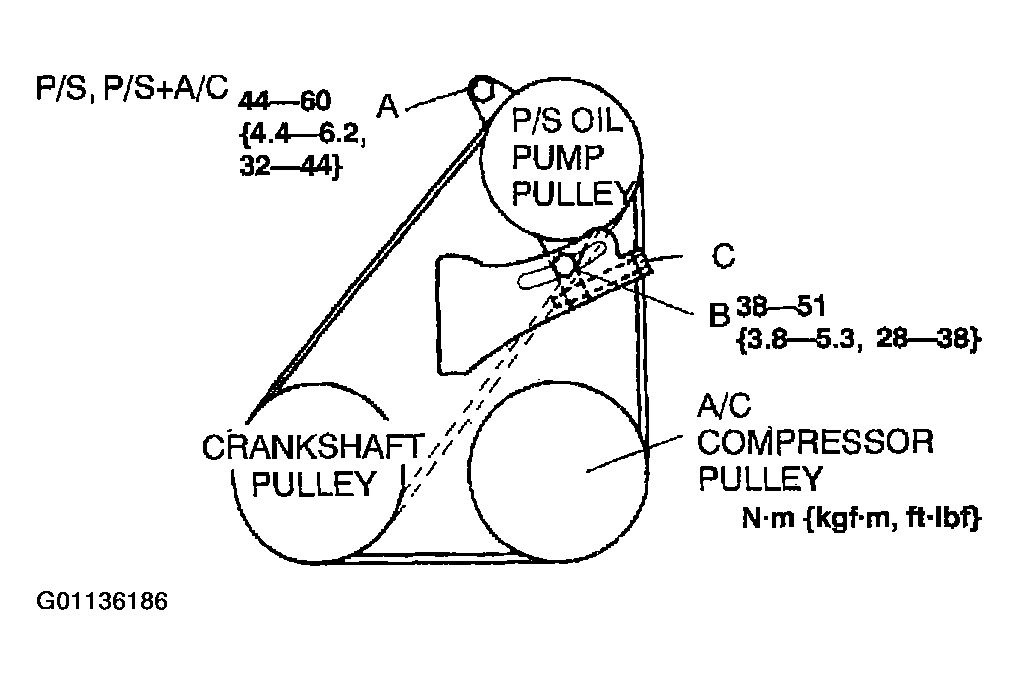

    Fig 2: Verifying Belt Deflection
    G01136186Courtesy of MAZDA MOTORS CORP.
