Oil Cooler Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Drain the coolant into a container.
  3. Drain the ATF into a container. See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .
  4. Remove the fresh-air duct, air cleaner component.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.
  7. Install the fresh-air duct, air cleaner component.
  8. Add ATF to the specified level. See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .
  9. Add coolant to the specified level.
  10. Connect the negative battery cable.
  11. Inspect for oil leakage from the oil pipes and oil hoses.
  12. Inspect for coolant leakage from the hoses.
  13. Inspect the ATF level and condition. See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .
  14. Carry out the line pressure test. See LINE PRESSURE TEST .
  15. Carry out the road test. See ROAD TEST .

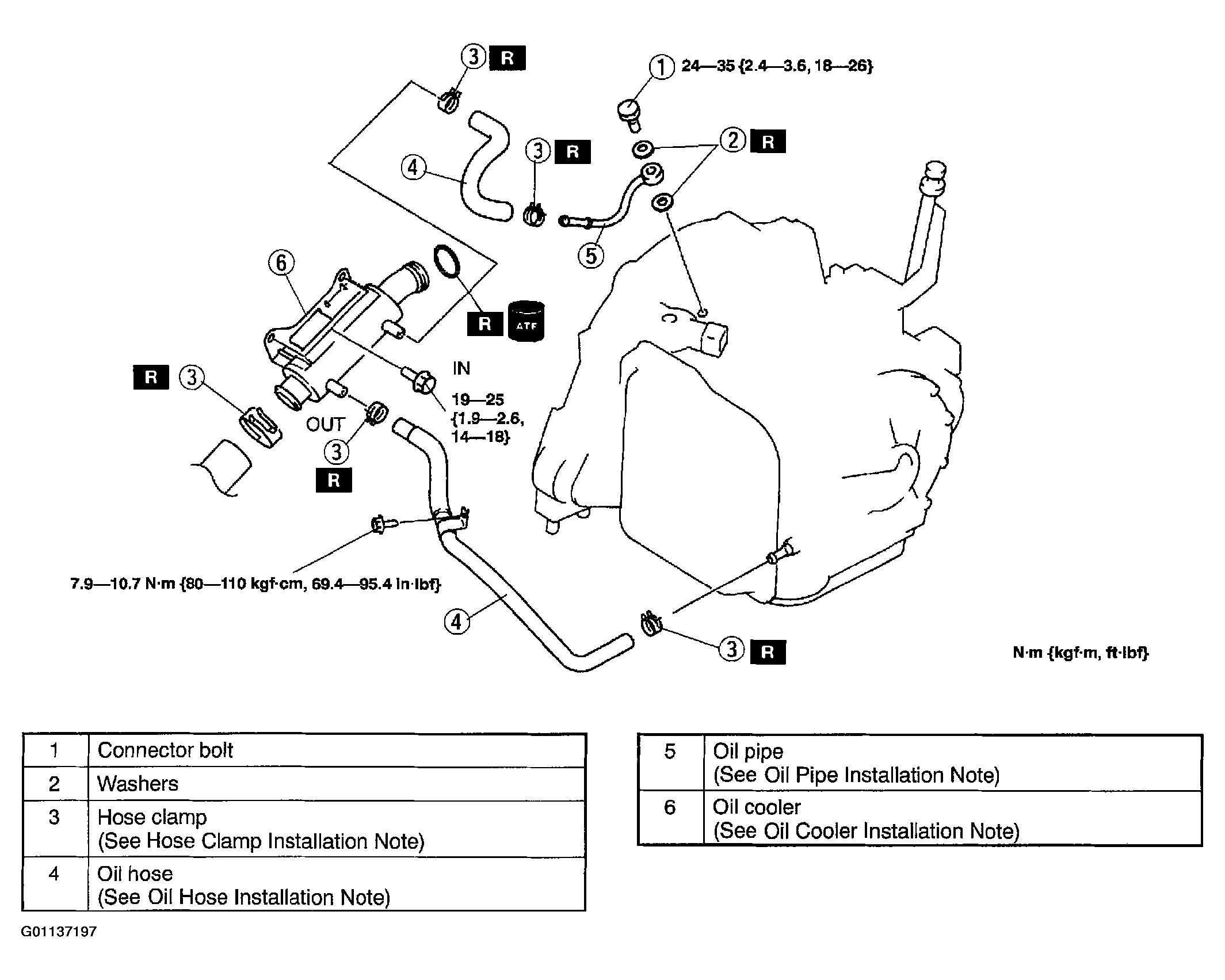

    Fig 1: Removing Oil Cooler
    G01137197Courtesy of MAZDA MOTORS CORP.
