Automatic Transaxle Fluid (ATF) Replacement

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When the transaxle and ATF are hot, they can cause severe burns. Turn off the engine and wait until they are cool before changing the ATF.

Remove the dipstick.
Remove the drain plug and washer.
Drain the ATF into a container.

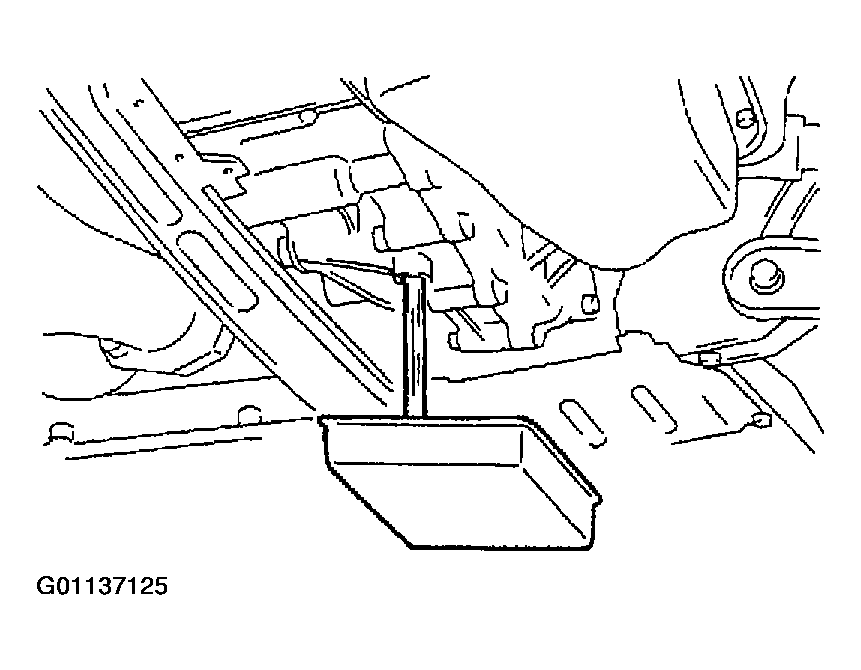

Fig 1: Draining Automatic Transmission Fluid
Courtesy of MAZDA MOTORS CORP.
Install a new washer and the drain plug.
Tightening Torque

40-53 N.m {4.0-5.5 kgf.m, 29-39 ft.lbf}
Add the specified type of ATF through the oil filler tube until ATF level reaches lower notch of dipstick.
ATF Type

(e.g. DexronregIII)

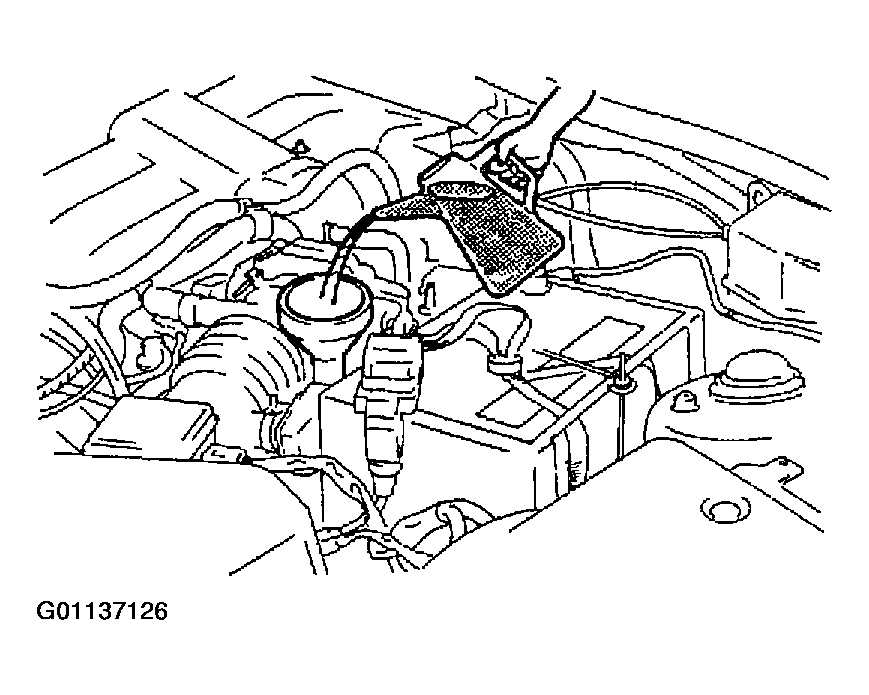

Fig 2: Adding Automatic Transmission Fluid
Courtesy of MAZDA MOTORS CORP.
Install the dipstick.
Verify the ATF level. See ATF LEVEL INSPECTION .
