Solenoid Body Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the control valve body. See CONTROL VALVE BODY AND THERMOSTATIC OIL LEVEL CONTROL VALVE REMOVAL/INSTALLATION .
Remove the solenoid body component.

Fig 1: Removing/Installing Solenoid Body Component
Courtesy of MAZDA MOTORS CORP.
Remove the solenoid gasket from the accumulator body. Discard the solenoid gasket.

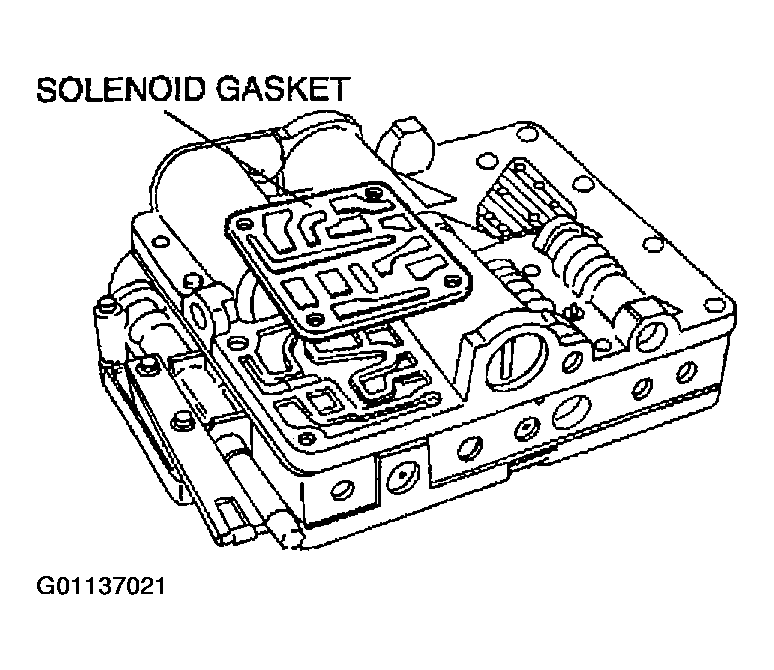

Fig 2: Removing/Installing Solenoid Gasket
Courtesy of MAZDA MOTORS CORP.
Install the solenoid body and a new gasket on the accumulator body with the bolts.
NOTE:
- Match the solenoid body gasket to the passages.
Fig 3: Matching Up Solenoid Body Gasket
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts.
Tightening Torque

10 N.m {1.1 kgf.m, 8 ft.lbf}

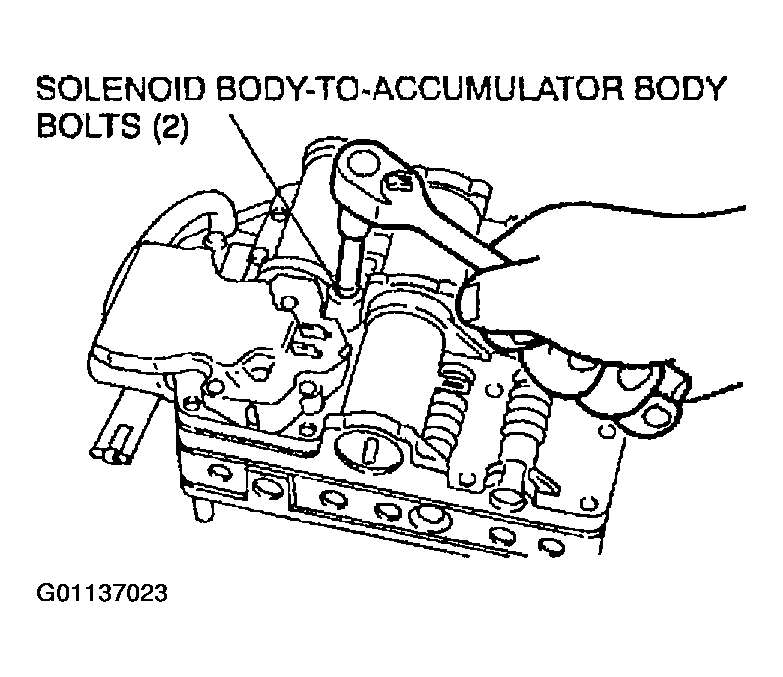

Fig 4: Solenoid Body-To-Accumulator Body
Courtesy of MAZDA MOTORS CORP.
Install the control valve body. See CONTROL VALVE BODY AND THERMOSTATIC OIL LEVEL CONTROL VALVE REMOVAL/INSTALLATION .
Carry out the time lag test and line pressure test. See MECHANICAL SYSTEM TEST .
Carry out the road test. See ROAD TEST .
