Headlight Cleaner Actuator Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the front side marker light. (See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Remove the headlight cleaner nozzle. (See HEADLIGHT CLEANER NOZZLE REMOVAL and HEADLIGHT CLEANER NOZZLE INSTALLATION .)

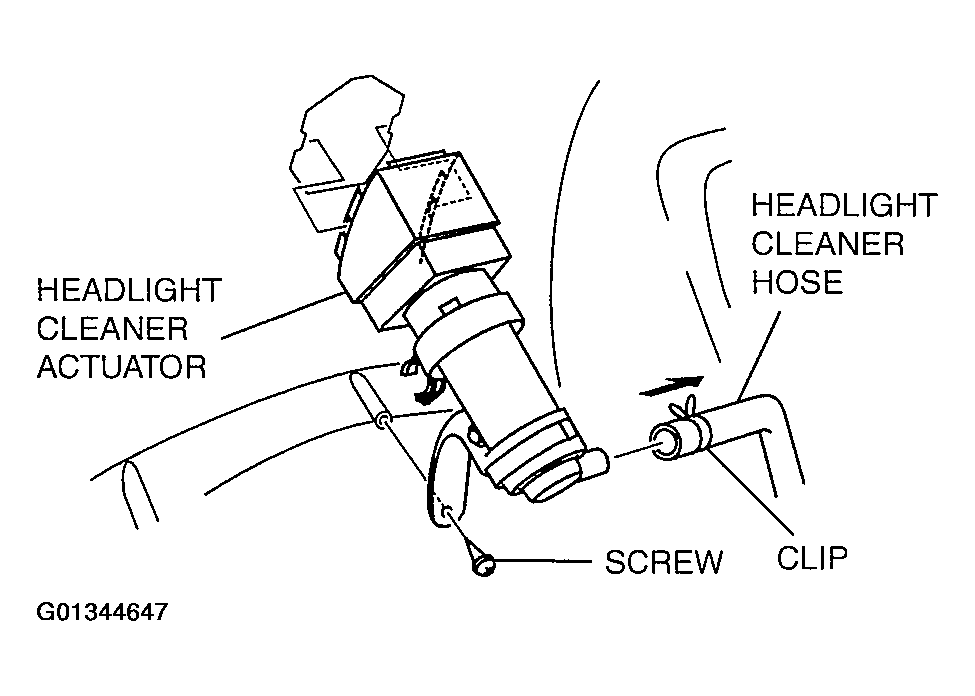

- Squeeze the clip tabs and slide the clip in the direction of the arrow.
- Disconnect headlight cleaner hose from the headlight cleaner actuator.
- Remove the screw, then remove the headlight cleaner actuator.
- Install in the reverse order of removal.
