Headlight Cleaner Nozzle Removal

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out the headlight cleaner nozzle.
  2. While pushing the tab with a tape-wrapped Flathead screwdriver, remove the headlight cleaner nozzle.

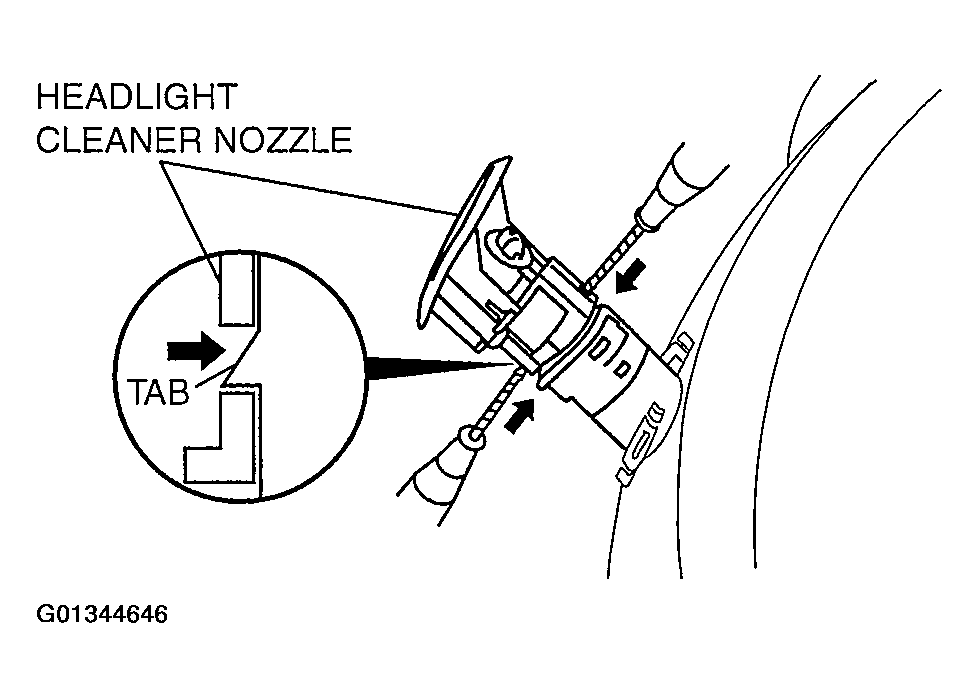

    Fig 1: Removing Headlight Cleaner Nozzle
    G01344646Courtesy of MAZDA MOTORS CORP.
