Passenger's Side

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the passenger-side air bag module. (See DUAL-STAGE PASSENGER-SIDE AIR BAG MODULE .)
  4. Pull the passenger-side demister grille upward and detach clip A.
  5. Pull the passenger-side demister grille outward and remove it.
  6. Install in the reverse order of removal.

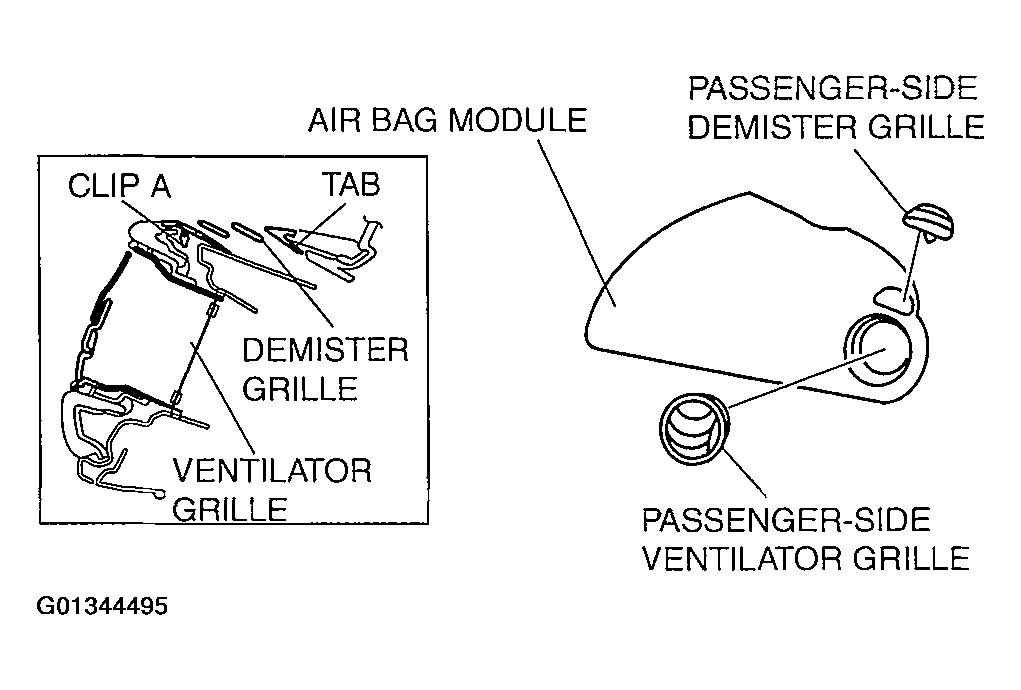

    Fig 1: Removing Passenger Side Demister Grill
    G01344495Courtesy of MAZDA MOTORS CORP.
